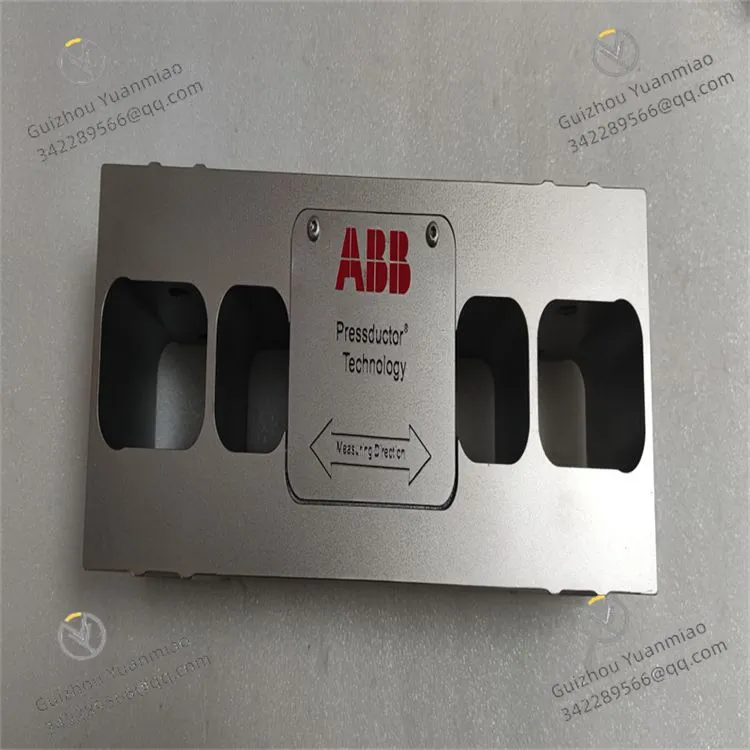

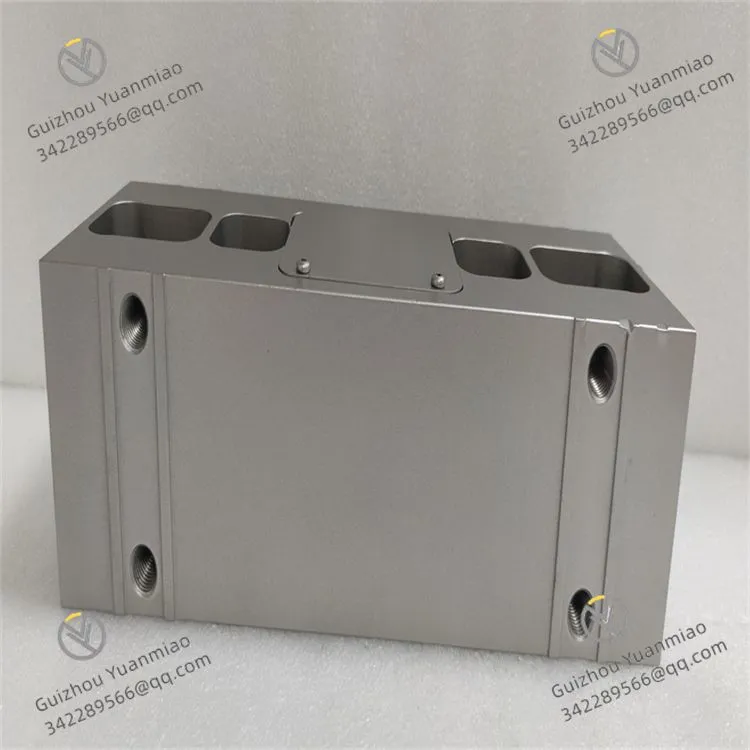

ABB 3BSE004197R1 Pressductor Pillowblock Load Cells

ABB 3BSE004197R1 Pressductor Pillowblock Load Cells photo-1

ABB 3BSE004197R1 Pressductor Pillowblock Load Cells photo-2

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other, Global universal model

Condition:

Other, Global universal model

Task:

Other, Global universal model

Contact Supplier Request Quote Chat Now

Guizhou Yuanmiao Automation Equipment Co., Ltd.

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other, Global universal model

Condition Other, Global universal model

Task Other, Global universal model

Mathematical Model Other, Global universal model

Signal Other, Global universal model

Customized Non-Customized

Structure Other, Global universal model

Operating Temperature -20℃~80℃

Storage Temperature -40℃~100℃

Dimensions 180mm×120mm×80mm

Weight Approximately 3.5kg

I. Overview

The ABB 3BSE004197R1 is a high-precision tension sensor belonging to the ABB ProcessMaster series. Its core positioning is to measure the tension of various coiled materials (such as metal foils, paper, textiles, and plastic films) and cables in real time and accurately during the production process, providing reliable data support for the closed-loop tension control of production lines. With a measuring range of 10.0kN (kilonewtons), it adopts the strain gauge-based measurement principle and features high precision, high stability, and strong anti-interference capability. It is widely used in continuous production lines in industries such as metallurgy, papermaking, printing and packaging, textiles, and cable manufacturing—for scenarios including tension control of cold-rolled steel plates, winding tension adjustment of tissue paper machines, and tension monitoring of film printing. It can effectively prevent material stretching deformation, wrinkling, or breakage caused by tension fluctuations, ensuring product quality and production efficiency.

This sensor adopts a compact mechanical structure design (with external dimensions approximately 180mm×120mm×80mm, depending on the installation method). Its housing is made of 316L stainless steel and has an IP67 protection rating, enabling it to withstand dust, moisture, and slight chemical corrosion in industrial sites. Equipped with a built-in temperature compensation circuit, it operates within a temperature range of -20℃ to 80℃, making it adaptable to high and low-temperature production environments (such as high temperatures in metallurgical workshops and low temperatures in refrigerated packaging workshops). The signal output interface supports the 4-20mA DC standard industrial signal, which can be directly connected to ABB AC500 PLCs, third-party DCS systems, or tension controllers to realize real-time collection and control of tension data. This meets the strict requirements of industrial automated production lines for the real-time performance and reliability of tension measurement.

II. Core Functional Features

1. High-Precision Tension Measurement and Real-Time Output

The 3BSE004197R1 uses high-precision metal strain gauges as its core sensing elements, combined with advanced signal conditioning circuits to achieve accurate tension measurement:

High Measurement Precision: The measurement accuracy reaches ±0.1% FS (Full Scale), with a linear error ≤0.05% FS and a hysteresis error ≤0.03% FS. It can accurately capture subtle tension changes (e.g., a minimum resolution of 0.1N within the 10kN range). For example, in a film production line, when the tension fluctuates from 5kN to 5.05kN, the sensor can output a current signal in real time from 12mA (corresponding to 5kN) to 12.2mA (corresponding to 5.05kN), with an error ≤0.002mA, providing a precise adjustment basis for the controller.
Wide Range Adaptability: It has a rated measurement range of 10.0kN and an overload capacity of 150% FS (short-term) / 120% FS (long-term), which can withstand instantaneous tension impacts during production (such as tension peaks when coil joints pass through) and prevent sensor damage. At the same time, it supports the measurement of any tension value within the range, and can adapt to the tension requirements of different materials and processes without replacing the sensor (e.g., a paper production line can measure 1-8kN tension, and a metal foil production line can measure 3-10kN tension).
Real-Time Signal Output: It adopts the 4-20mA DC standard analog signal output, with a signal response time ≤1ms, which can follow tension changes in real time and transmit tension data without delay. For example, in high-speed cable stranding production, where the cable tension change frequency reaches 10Hz, the sensor can still respond quickly and output a stable signal, ensuring the controller adjusts the traction speed in a timely manner to avoid uneven cable stretching.

2. Environmental Adaptability and Anti-Interference Design

To address the complex working conditions of industrial sites, the sensor enhances environmental adaptability and anti-interference capability through multiple designs:

Strong Protection Performance: The housing is made of 316L stainless steel, polished and passivated, with excellent corrosion resistance. It can be used in scenarios such as metallurgical workshops (with metal dust and coolant splashes) and papermaking workshops (high humidity). The IP67 protection rating means the sensor can be briefly immersed in water (1m depth for 30 minutes), preventing moisture from entering the internal circuit and causing malfunctions.
Temperature Compensation and Stable Operation: Equipped with a high-precision temperature compensation circuit (compensation range: -20℃~80℃), it can offset the impact of temperature changes on measurement accuracy. For example, in a low-temperature environment of -10℃, the measurement error only increases by ≤0.02% FS, which is much lower than the 0.1% FS error of sensors without compensation, ensuring measurement stability in high and low-temperature environments.
Electromagnetic Anti-Interference Capability: The signal conditioning circuit adopts differential amplification and EMC filtering design, complying with the IEC 61000-6-2 industrial anti-interference standard. It provides electrostatic discharge (ESD) protection of ±8kV (air discharge) / ±4kV (contact discharge) and electrical fast transient (EFT) protection of ±2kV, which can resist high-frequency electromagnetic interference generated by frequency converters and motors near the production line, avoiding signal distortion (e.g., 4-20mA signal fluctuation ≤0.01mA).

3. Flexible Installation and Convenient Calibration

The PFTL101B-10.0kN supports multiple installation methods to adapt to the mechanical layout of different production lines, and its calibration process is simple, reducing maintenance difficulty:

Adaptability to Multiple Installation Methods: It supports various mechanical installation structures such as flange mounting, pin mounting, and suspension mounting, which can be flexibly selected according to the installation positions of tension rollers and guide rollers in the production line. For example, in the winding section of a papermaking machine, flange mounting is used to fix the sensor next to the winding roller bearing seat to directly measure the winding tension; in a cable traction production line, suspension mounting is used to hoist the sensor above the tension roller to adapt to space-constrained scenarios.
Standardized Signal Interface: It uses an M12 circular connector or terminal junction box as the signal output interface, with simple wiring (four-core wires: positive power supply, negative power supply, positive signal, negative signal). It can be quickly connected to PLCs and tension controllers, reducing on-site wiring time. The interface has an anti-misinsertion design to avoid circuit damage caused by reverse connection of positive and negative poles.
Convenient Calibration Function: It supports on-site zero calibration and range calibration, which can be completed without disassembling the sensor. Through ABB's dedicated calibration software or the controller's built-in calibration function, inputting a known tension value (e.g., applying a 5kN standard weight using the weight hanging method), the sensor can automatically correct measurement deviations. The calibration process takes ≤5 minutes, significantly reducing maintenance costs. For example, during production line shutdown maintenance, maintenance personnel can initiate calibration through the PLC operation interface without professional calibration equipment.

4. Long-Term Stable Operation and Fault Self-Diagnosis

High-Reliability Structure: The strain gauges are bonded to the elastic body using a high-temperature curing process. The elastic body is made of high-strength alloy steel (40CrNiMoA), which has an excellent fatigue life (capable of withstanding 10 million full-scale cyclic loads). After long-term use (≥5 years), the measurement accuracy attenuation is ≤0.05% FS, reducing the frequency of sensor replacement.
Fault Self-Diagnosis: It has a built-in circuit fault monitoring function. If overvoltage (>30V DC), undervoltage (

III. Technical Parameters

Electrical Parameters

Parameter Category	Specific Specifications
Measuring Range	10.0kN (rated), overload capacity: 150% FS (short-term), 120% FS (long-term)
Measurement Accuracy	±0.1% FS, linear error ≤0.05% FS, hysteresis error ≤0.03% FS
Signal Output	4-20mA DC, load resistance ≤500Ω, signal response time ≤1ms
Power Supply	18-30V DC, power consumption ≤2W
Temperature Compensation Range	-20℃~80℃, temperature drift ≤0.001% FS/℃
Electromagnetic Compatibility	Complies with IEC 61000-6-2 standard, ESD ±8kV (air)/±4kV (contact), EFT ±2kV

2. Mechanical and Environmental Parameters

Parameter Category	Specific Specifications
Housing Material	316L Stainless Steel
Protection Rating	IP67
Operating Temperature	-20℃~80℃
Storage Temperature	-40℃~100℃
Installation Method	Flange mounting, pin mounting, suspension mounting (optional)
External Dimensions	Approximately 180mm×120mm×80mm (depending on the installation method)
Weight	Approximately 3.5kg (excluding installation accessories)

3. Reliability Parameters

Fatigue Life: ≥10 million full-scale cycles (in accordance with ISO 3808 standard);
Mean Time Between Failures (MTBF): ≥50,000 hours;
Material Certification: The elastic body material complies with EN 10088-3 standard, and the housing complies with ASTM A240 standard.

IV. Working Principle

The PFTL101B-10.0kN is based on the metal strain gauge measurement principle, and its working process revolves around the sequence of "tension force application - strain generation - signal conversion - data output", which is detailed as follows:

Tension Force Application Stage: When coiled materials (such as steel plates and paper) in the production line pass through the tension roller, the tension value is transmitted to the sensor's elastic body (high-strength alloy steel). The elastic body undergoes slight elastic deformation under the action of tension (e.g., a deformation of approximately 0.1mm under a 10kN tension).
Strain Sensing Stage: Four high-precision metal strain gauges bonded to the surface of the elastic body (forming a Wheatstone bridge) produce resistance changes as the elastic body deforms—tensile strain gauges show increased resistance, while compressive strain gauges show decreased resistance. This breaks the bridge balance, outputting a weak voltage signal (in the mV level).
Signal Conditioning Stage: The sensor's built-in signal conditioning circuit (including an amplifier, filter, and temperature compensator) amplifies the weak voltage signal (to the V level), filters out high-frequency noise, and performs temperature compensation (to offset the impact of temperature on resistance), converting it into a voltage signal linearly related to the tension value.
Signal Conversion and Output Stage: The conditioned voltage signal is converted into a 4-20mA DC standard industrial signal via a D/A converter (e.g., 4mA corresponding to 0kN and 20mA corresponding to 10kN), which is then output to the PLC, DCS, or tension controller through the signal interface.
Closed-Loop Control Stage: The controller receives the 4-20mA signal, calculates the current tension value, and compares it with the set tension value. If there is a deviation (e.g., actual tension of 5.2kN > set value of 5kN), it drives the actuator (such as adjusting the traction speed via a frequency converter or adjusting the tension roller pressure via an air cylinder) until the tension returns to the set value, forming a closed-loop tension control.
