Apparent Viscosity at High-Temperature and High-Shear Rate Tester ASTM D5481
Product Model: JF0703I
Product Introduction
The instrument mainly measures the apparent viscosity of lubricating oil at high temperature and high shear rate. According to the outflow time and pressure of the capillary viscometer, the apparent shear rate of the capillary viscometer can reach a certain apparent viscosity, and the oil viscosity corresponding to the measured pressure and the curve corrected by each viscometer pool can be obtained.
Technical Parameter
1. Applicable standard: ASTM D5481, SH/T0703
2. Heating method: electric heating rod heating
3. Test temperature: normal temperature~150℃±0.1℃
4. Working unit: 1 unit tube

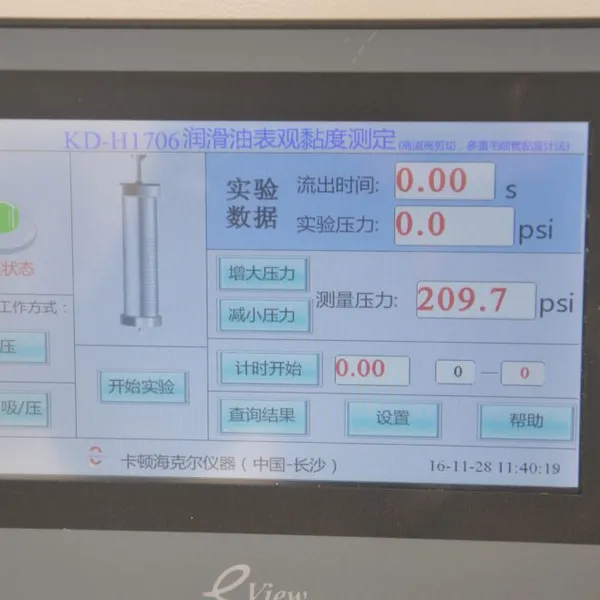

5. Control method: touch LCD screen
6. Screen display content: test pressure, test time, sample constant temperature time
7. Result calculation: Windows version high temperature and high shear viscosity calculation software
8. Working power supply: AC220,240V 50,60HZ
9. Working gas source: nitrogen or other inert gas (self-provided)
10. Power of the whole machine: 500W
11. Instrument size: 400*430*850mm
12. Net weight: 35KG
Main Feature
1. Equipped with special high shear viscosity calculation software;
2. No solvent cleaning is required, only a small amount of new samples are required for rinsing;
3. The instrument allows uninterrupted operation 24 hours a day, 365 days;

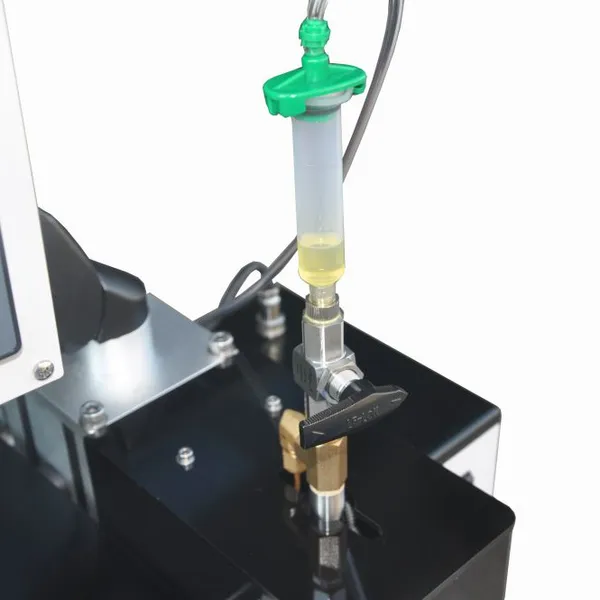

4. The glass capillary meets the standard requirements, with a diameter of 0.15mm and a length of 16mm;
5. For research purposes, users can set different shear rates and test temperatures;
6. The first one is made of all-aluminum material;
7. Touch LCD screen control, which can be operated directly on the LCD screen;
8. The software automatically recommends the test pressure, and the test results can generate an Excel report;
9. Patent of oil shear viscometer, patent number: ZL201821712254.6
