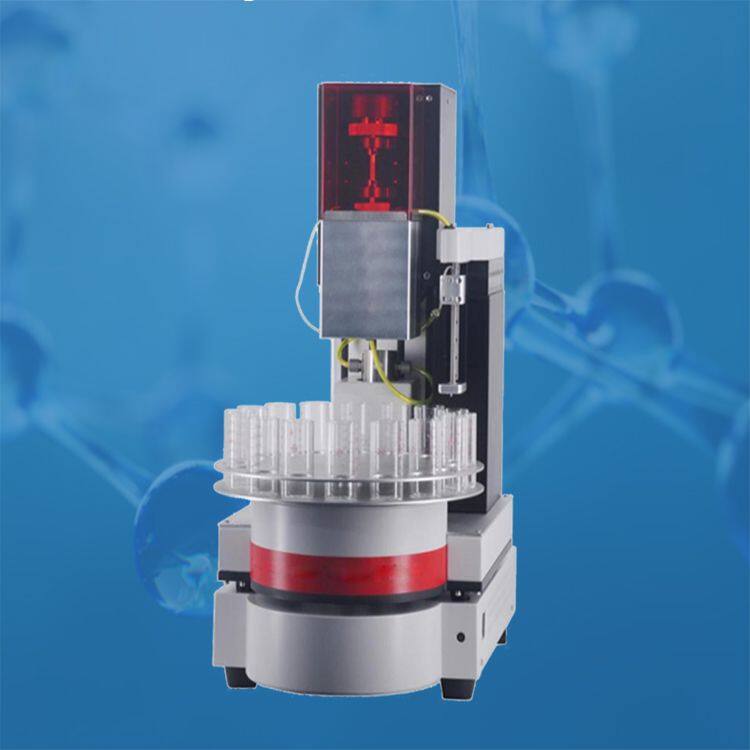

ASTM D2602 5293 Intelligent Engine Oil Viscosity Tester

Relative standards:

◆GB/T6538 Determination of Apparent Viscosity of Engine Oil Cold - Start Simulator Method

◆ASTM D2602 5293 Test Method for Measuring the Apparent Viscosity of Engine Oil from -5 to -30 Degrees Celsius with A Cold Start Simulator

Technical parameters:

 Functional characteristics:

◆Automatic detection of rotation speed and control current reduces human erro;

◆Adopting imported  motor drive with high precision;

◆Semiconductor refrigeration systems can quickly test any temperature;

◆The result will be calculated automatically after the calibration of standard oil;

◆Computer control, Windows operating system, XP, Win7,  it can be connected to                 the printer to print the results;

◆ Improved rotor, low torque test status and high repeatability;

◆Automatic generation of calibration curve and direct display of test viscosity results;

◆All testing process is fully automatic control, no need for manual conduct. Automatic shutdown and temperature rise after test;

◆The instrument automatically recommends the refrigeration temperature;

◆The rotary encoder detects the rotation speed;

◆Viscosity measurement range: 900~25000CP;

◆20 standard oil results can be edited;

◆Equipped with special cryogenic refrigeration equipment;

◆Temperature control accuracy can reach 0.02℃;

◆Standard oil calibration deviation can be automatically calculated to help users verify the accuracy of calibration data;◆Patent of Lubricant Apparent Viscosity Tester Using Semiconductor Refrigeration, Patent No.: ZL201822076893.4◆Patent of lubricating oil apparent viscosity tester with automatic sampling and automatic cleaning structure, patent number: ZL201822076944.3

Application:

◆Lubricating oil production enterprise

◆ Inspection department
