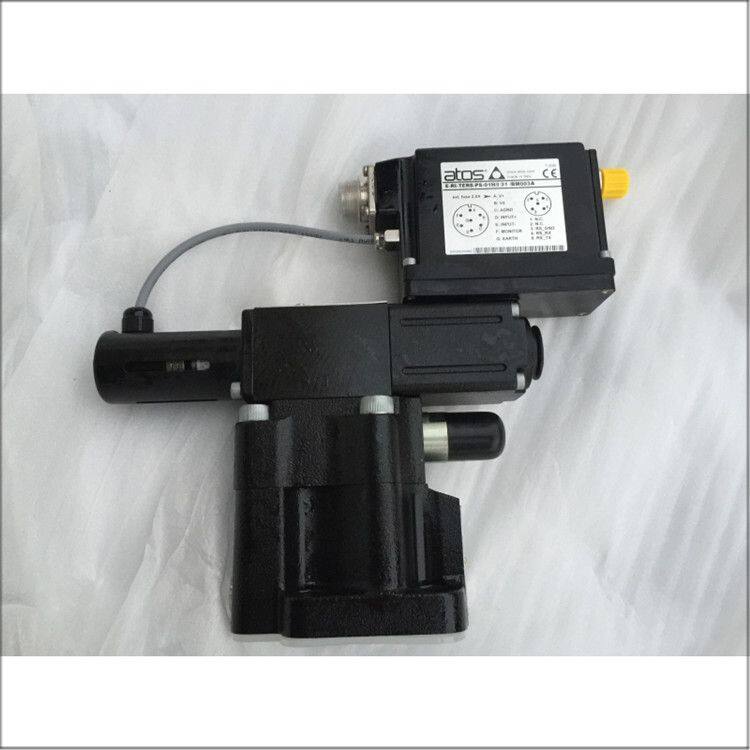

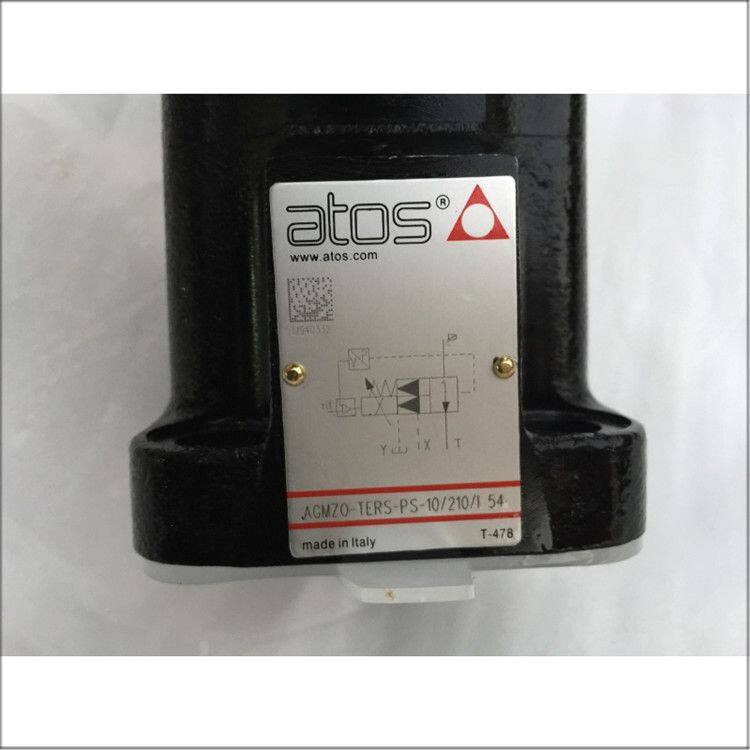

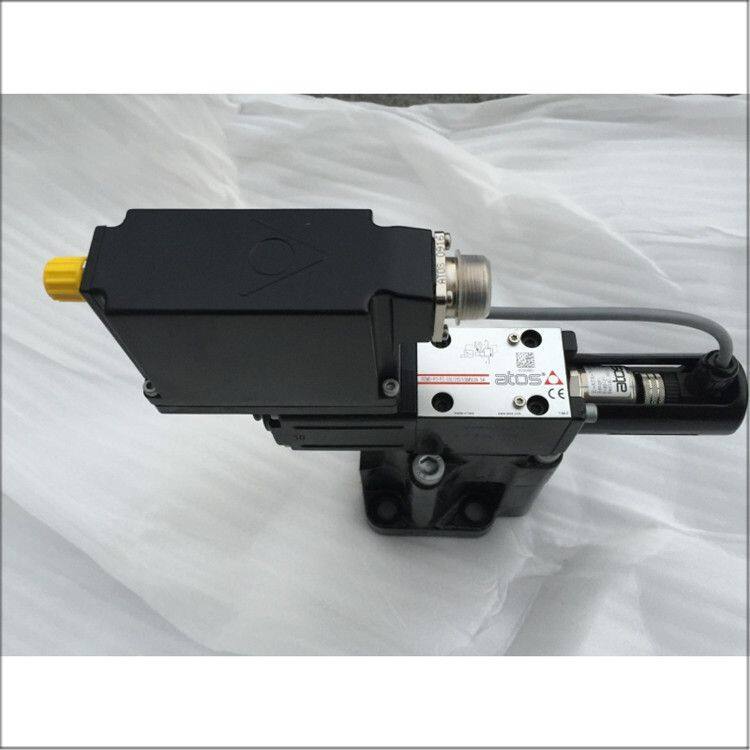

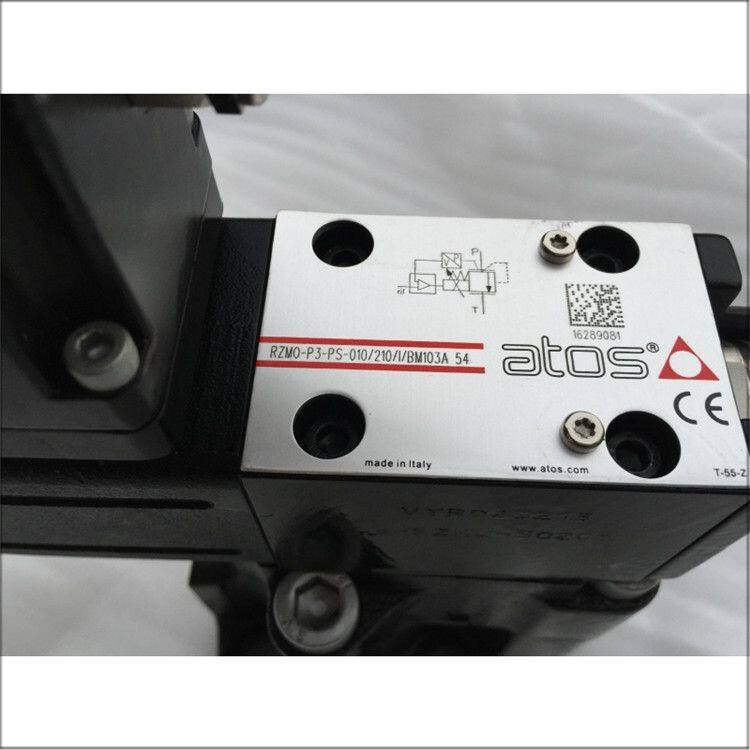

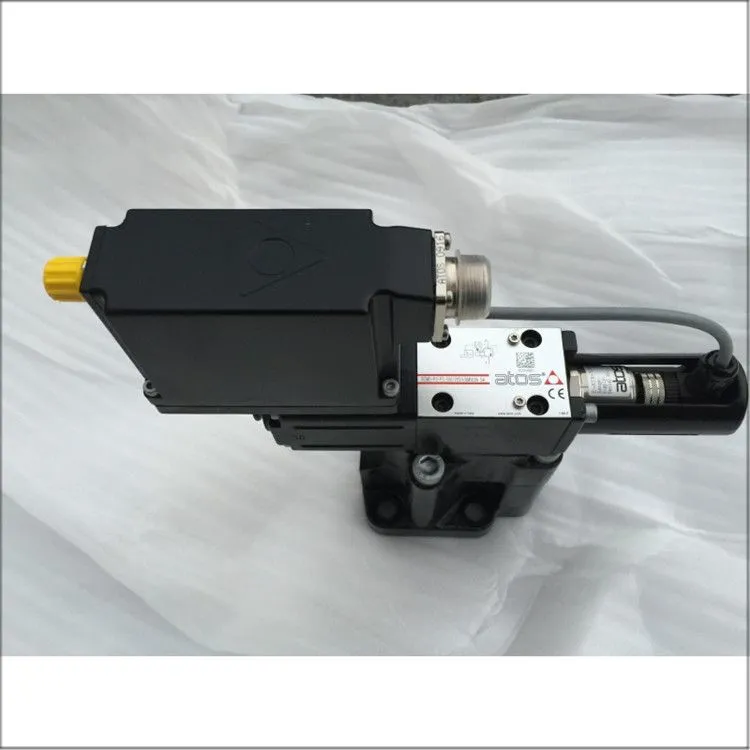

Atos Multiple Safety Protections High Efficiency Low Noise
Solenoid Valve AGMZO-TERS-PS-10 210 I 54
Competitive Brands
Rexroth, Hagglunds, Aventics, Danfoss, Parker, Moog, Sunhydraforce, Hawe, Vickers, Siemens, Skf and other European and American brands.
Products
Plunger pump, Solenoid valve, Gear pump, Vane pump, Direction valve, Servo valve, Proportional valve, Servo motor
Details
Brand |
Atos |
Model |
AGMZO-TERS-PS-10 210 I 54 |
Color |
Silver And Black |
Place Of Origin |
Italy |
Material |
Cast Iron |
Power Source |
Electric |
Advantages
Integrated Intelligent ControlBuilt-in integrated pressure sensor and digital amplifier (TERS) enable closed-loop control of the valve itself, significantly improving dynamic and static control characteristics.
Multiple Safety ProtectionsEquipped with a mechanical pressure limiter for overpressure protection, factory-preset to fully unloaded state; during commissioning, a pressure value slightly higher than the maximum pressure of the proportional control needs to be set.
Flexible Communication InterfaceConfigured with a PS interface (RS232 serial communication), allowing analog signal input via a 7-pin or 12-pin connector; supports BC (CANbus) or BP (PROFIBUS-DP) interface options, enabling digital operation via fieldbus networks.
Strong Environmental AdaptabilityThe proportional electromagnet coil is fully encapsulated in plastic, with H-class insulation, providing shock and vibration resistance, suitable for various climatic environments.
Easy Installation And MaintenanceConforms to ISO 6264 standard installation interface; 10/20/32mm diameter options available. Flow rate up to 200-600L/min; pressure rating up to 315bar.
Application Areas
Mobile Machinery ControlHydraulic systems for continuous, high-intensity operations such as mining machinery and port cranes; mobile machinery requiring precise pressure control.
Automated Production LinesAutomated equipment with dual or multi-loop independent control; processes requiring high pressure response speed and accuracy.
Testing And Experimentation Equipment
Precise pressure control on hydraulic test benches; simulation of load and overload protection scenarios.
Marine And Marine EngineeringPressure control for deck machinery and steering gear systems; vibration and shock resistance suitable for offshore conditions.
Energy Industry
Pressure stabilization and limiting in hydraulic stations; explosion-proof hydraulic systems for natural gas and oil extraction equipment.
