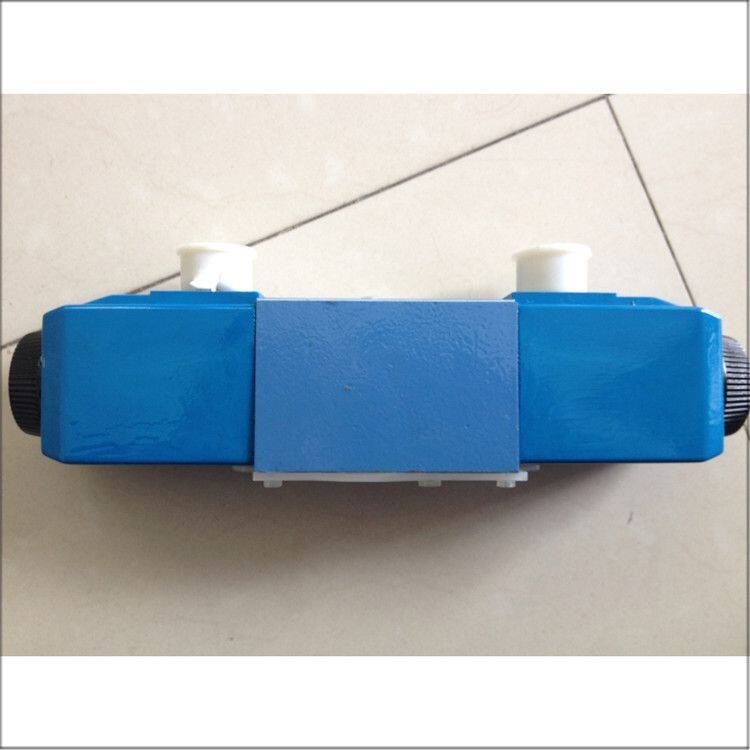

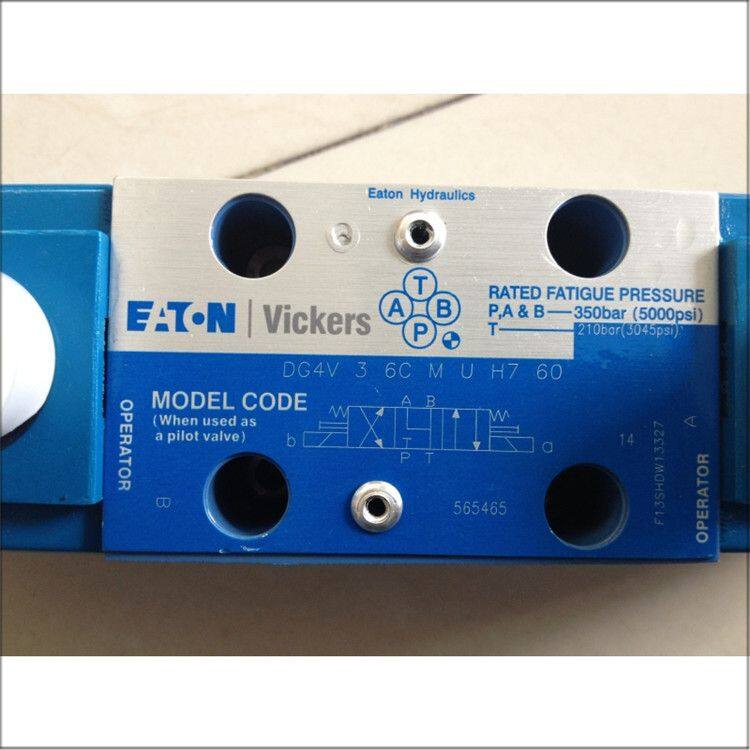

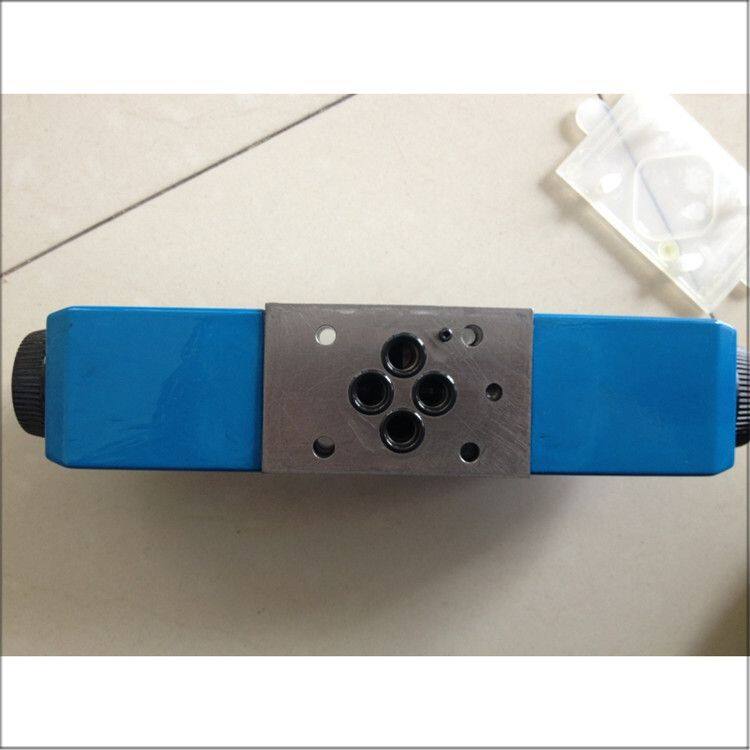

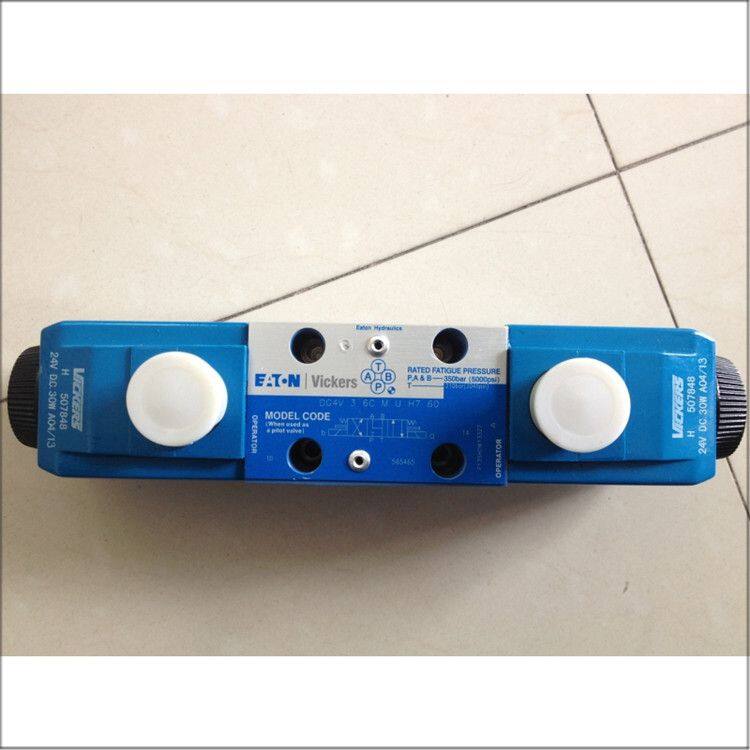

Vickers High Pressure Flexible Installation High Efficiency
Solenoid Valve DG4V-3-6C-M-U-H7-60
Competitive Brands
Rexroth, Hagglunds, Aventics, Danfoss, Parker, Moog, Sunhydraforce, Hawe, Vickers, Siemens, Skf and other European and American brands.
Products
Plunger pump, Solenoid valve, Gear pump, Vane pump, Direction valve, Servo valve, Proportional valve, Servo motor
Details
| Brand | Vickers |
| Model | DGV4-3-6C-M-U-H7-60 |
| Color | Blue |
| Material | Cast Iron |
| Power Source | Electric |
| Place Of Origin | America |
Advantages
High PressureProvides a flow rate of 80 L/min even at a maximum pressure of 350 bar (5000 psi), making it a "high power density" product among valves of its size.
Low Power Consumption
The coil consumes only 30 W, but precision machining of the internal flow channels and valve core-body ensures a pressure drop ≤2.5 bar (at 30 L/min), resulting in high system efficiency. It has undergone 20 million cycle fatigue tests, resulting in a long MTBF and reduced downtime.
Oil-Immersed SolenoidThe valve core is fully immersed in oil during operation, buffering the switching impact, resulting in low noise, eliminating the risk of rod seal leakage, and simultaneously reducing oil temperature and extending oil life.
Flexible InstallationCompliant with ISO 4401-03 / CETOP 3 interfaces, it can share a base plate with Eaton SystemStak™ stack valves, saving space and piping.
Multi-fluid CompatibilityStandard Viton seals are suitable for various media such as mineral oil, water-glycol, and phosphate esters, allowing for media switching without replacing seals.
Optional Soft-Shift VersionFixed damping orifice extends valve core switching time by tens of milliseconds, significantly reducing hydraulic shock and improving actuator and pipeline lifespan.
Applications
Machine Tools And Metal Forming
Die reversing and fast/slow speed switching circuits in injection molding machines, die casting machines, and shearing/bending machines.
Industrial Automation Lines
Medium and high pressure directional control for cylinder clamping, lifting, indexing, etc.
Mobile And Engineering Equipment
Multi-way valve pilot or main reversing stages in aerial work platforms, forklifts, and mini excavators.
Metallurgy And Rolling
Roll positioning and pinch roll pressure switching, requiring high-pressure, high-frequency operations.
Test Benches And Laboratories
require closed-loop control systems with low leakage and low impact.
Marine/Offshore
Flame-retardant fluid compatible versions can be used in deck machinery and hatch cover hydraulic systems.
