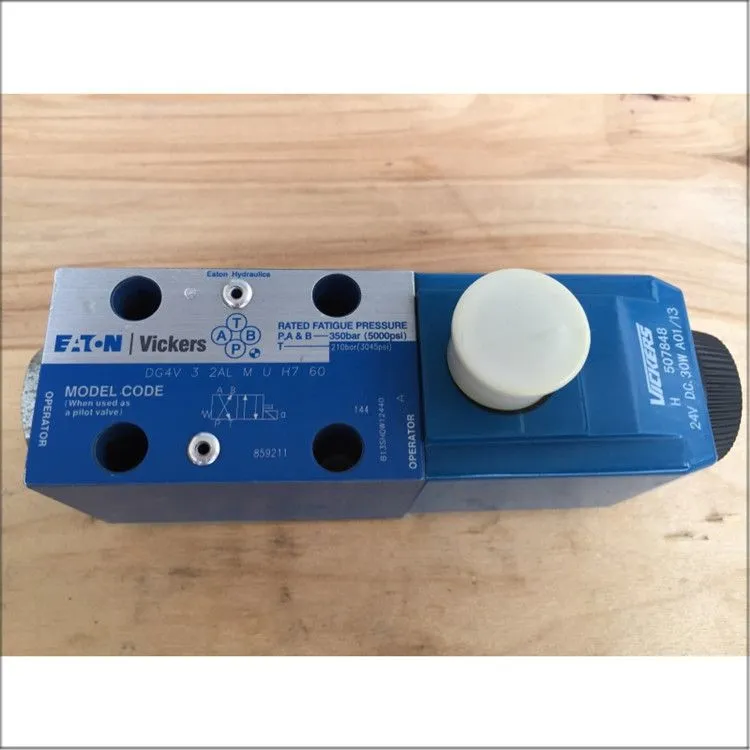

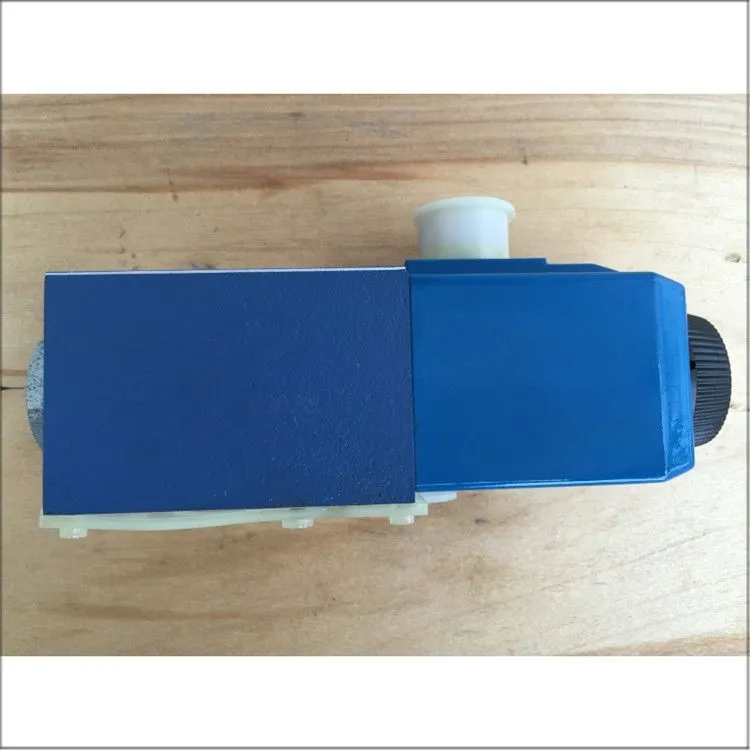

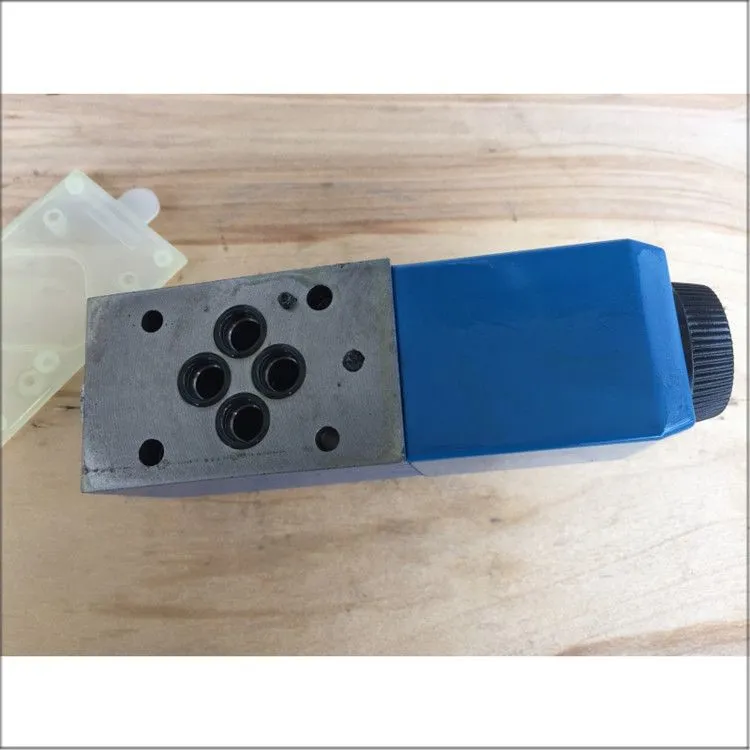

Vickers High Repeatability High Durability Energy-Efficient
Solenoid Valve DG4V-3-2A-M-U-H7-60
Competitive Brands
Rexroth, Hagglunds, Aventics, Danfoss, Parker, Moog, Sunhydraforce, Hawe, Vickers, Siemens, Skf and other European and American brands.
Products
Plunger pump, Solenoid valve, Gear pump, Vane pump, Direction valve, Servo valve, Proportional valve, Servo motor
Details
Brand |
Vickers |
Model |
DG4V-3-2A-M-U-H7-60 |
Color |
Blue And Silver |
Place Of Origin |
America |
Material |
Cast Iron |
Power Source |
Electric |
Advantages
Soft Switching, Low ImpactThe valve core features milled metering grooves and a fixed damping orifice, significantly reducing pressure spikes during actuator start-up and shutdown, lowering pipeline vibration and noise, and extending the life of hydraulic components.
Fast Response, High RepeatabilityWet electromagnets directly drive the valve core, with a typical switching time of 30–50 ms, suitable for high-cycle automatic operation.
Energy-EfficientOptimized internal flow channels result in low pressure drop; low-leakage design reduces volumetric losses, allowing for the selection of smaller pumps for equivalent power output, reducing system energy consumption.
Easy Installation/MaintenanceThe coil uses an ISO 4400 (DIN 43650) plug-in connector, allowing replacement within 30 seconds without valve disassembly or system shutdown; base plate or integrated block installation minimizes space requirements.
High DurabilityFactory-tested for 20 million cycles; bearing and armature surface-strengthened treatment allows for 24-hour continuous operation. Multi-fluid compatibility: Standard nitrile rubber seals are suitable for mineral oil, water-glycol, and water-in-oil emulsions; optional fluororubber can be used directly in phosphate ester fire retardant liquids without replacing the valve body.
Applications
Industrial Machine Tools
CNC machining center clamping/tool changing, injection molding machine mold opening and closing direction control;
Mobile Machinery
Forklifts, aerial work platforms, mini excavators, multi-way valve pilot switching;
Metallurgy And Forming
Press, shearing machine fast-down-slow-press-return speed switching;
Automated Production Lines
Assembly line fixtures, robot end effectors' sequential movements;
Testing And Simulation
Manual/automatic hydraulic circuit switching of hydraulic servo test benches;
Marine And Port
Remote electromagnetic control of hatch covers, steering gear, and anchor winches.
