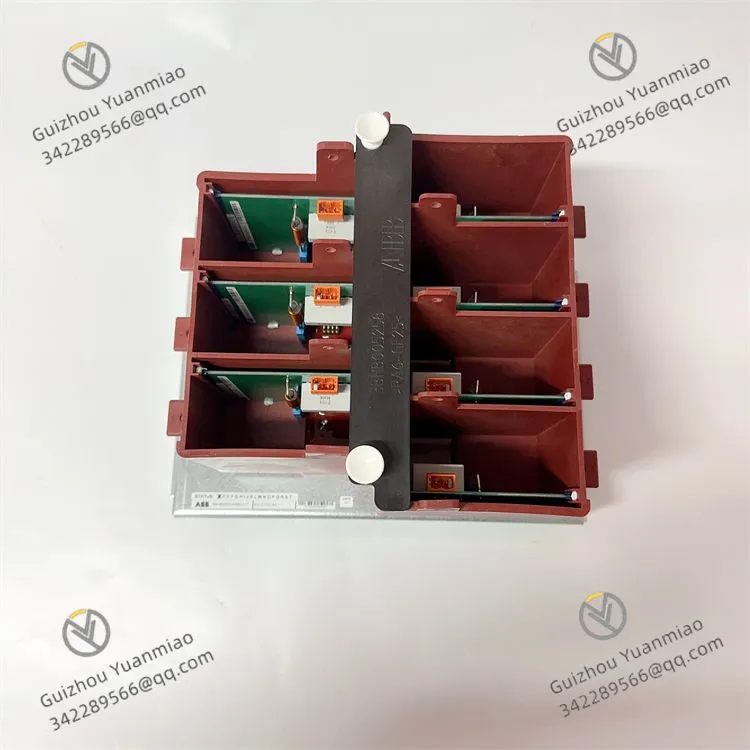

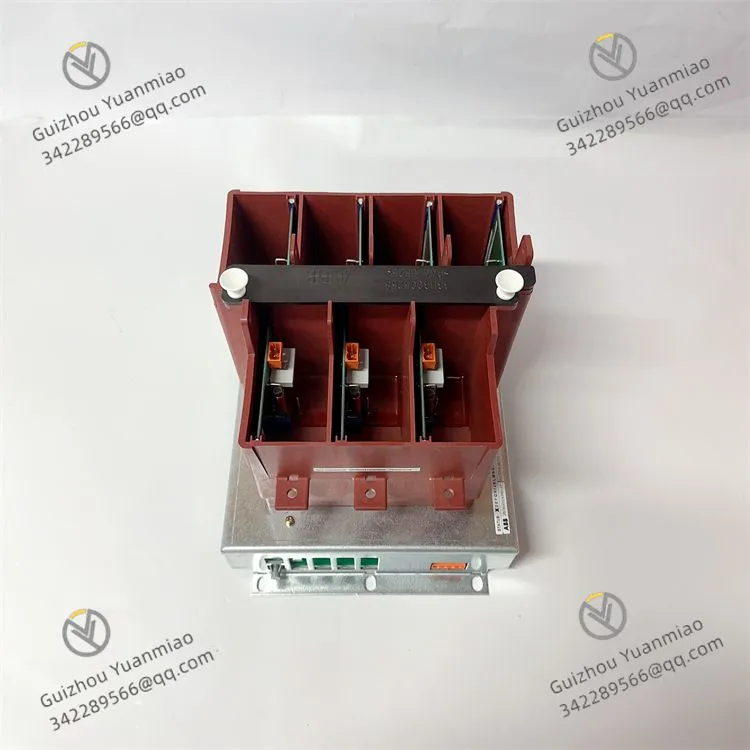

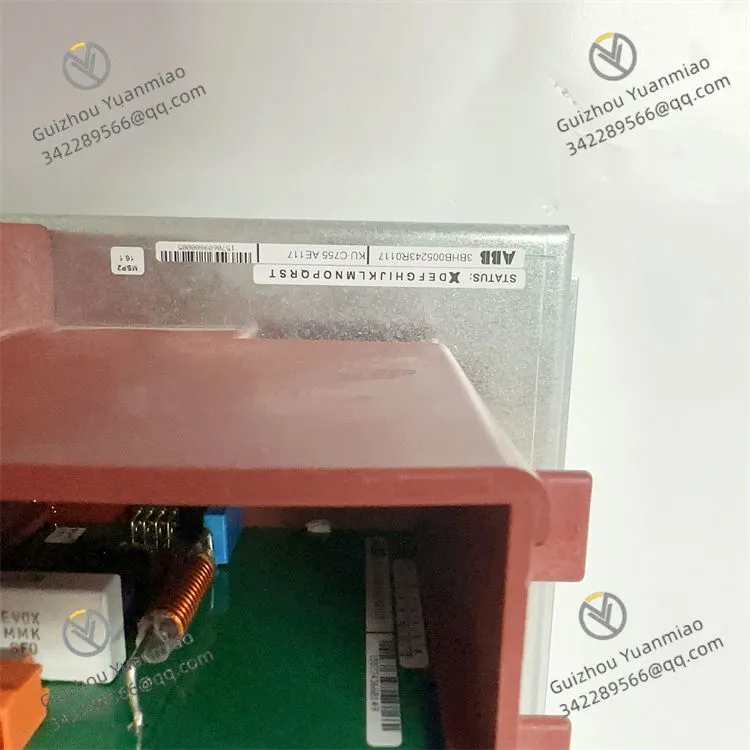

ABB KUC755AE117 Programmable Logic Controller

I. Overview

ABB KUC755AE117, as a high-performance power conversion module in the ABB AC6000 series, plays a key role in the field of industrial automation. Its main function is to realize the conversion of electrical energy forms. By converting alternating current into alternating current with variable frequency, it can precisely control the speed, torque, and position of the motor, and is a core component of the motor drive system. With advanced design concepts and manufacturing processes, this module provides stable and efficient power conversion services for various industrial applications, ensuring the reliability and accuracy of equipment operation.

II. Technical Parameters

•


• Power Parameters: The rated power is 75 kW. This power level makes it suitable for various medium and large motor drive scenarios, meeting the power output requirements of different industrial equipment. During actual operation, it can stably output corresponding power according to load conditions, ensuring the continuous and efficient operation of the motor.

• Voltage Parameters: The input voltage range is 380 - 500V AC (three-phase), which can adapt to common industrial power supply systems and has good grid compatibility. The output voltage can be flexibly adjusted within the range of 0 - 500V AC (three-phase). Through precise voltage control, it meets the voltage requirements of the motor in different operating states, realizing precise regulation of motor speed and torque.

• Current Parameters: The rated current can reach 160A, which can carry a large load current, ensuring that the module can still operate stably under high-load conditions, avoiding equipment failures caused by current overload, and providing reliable power support for the motor.

• Frequency Parameters: The operating frequency range is 0.5 Hz to 200 Hz, which can realize a wide range of speed regulation of the motor, meeting the diverse needs of different industrial applications for motor speed. Whether it is the start-up phase requiring low speed and high torque or the working phase requiring high-speed stable operation, the operating state of the motor can be precisely controlled by adjusting the frequency.

• Control Method: Adopts Pulse Width Modulation (PWM) technology. This technology controls the average value of the output voltage by adjusting the pulse width, which has the characteristics of fast response speed and high control precision. It can effectively reduce current fluctuations and torque ripples during motor operation, improving the stability and efficiency of motor operation.

• Communication Protocols: Supports a variety of common communication protocols, such as RS - 485, Modbus, etc. These communication interfaces enable the module to easily interact with upper computers, programmable logic controllers (PLCs) and other intelligent devices, realizing remote monitoring, parameter setting and system integration, and facilitating the construction of efficient automation control systems.

• Protection and Environmental Parameters: The protection level reaches IP20, which can provide basic dust-proof protection for the internal circuit of the module, adapting to the use requirements of general industrial environments. The operating temperature range is - 10℃ to 40℃, and the relative humidity is 5% - 95% (non-condensing). It has certain environmental adaptability and can operate stably under common industrial on-site temperature and humidity conditions. At the same time, the module is designed with anti-vibration and anti-electromagnetic interference performance, meeting the relevant standards of industrial-grade equipment, ensuring reliable work in complex industrial electromagnetic environments.

• Physical Dimensions: The external dimensions of the module are 400mm×400mm×200mm. This design ensures the reasonable layout of internal circuits and heat dissipation requirements, while taking into account the compactness of the installation space, facilitating integrated installation in various control cabinets and equipment.

III. Functional Features

•


• High-performance IGBT Technology: The module adopts advanced Insulated Gate Bipolar Transistor (IGBT) technology. IGBT has the advantages of low on-voltage drop, fast switching speed and strong current-carrying capacity, making the module have high efficiency in the power conversion process, which can effectively reduce energy loss. At the same time, it can quickly respond to control signals, realizing rapid adjustment of motor speed and torque, meeting the requirements of complex industrial applications for dynamic performance.

• Modular Design: Adopts a modular design concept, where each functional module works independently and cooperatively. This design not only facilitates the installation, disassembly and maintenance of the module, reducing equipment maintenance costs and downtime, but also allows users to easily replace or add functional modules according to actual needs during system upgrade or expansion, improving the flexibility and scalability of the system.

• Versatility: Suitable for a variety of motor control application scenarios. Whether it is an ordinary asynchronous motor, a synchronous motor or a special type of motor, precise speed, torque and position control can be achieved through this module. It supports a variety of control algorithms, such as vector control and direct torque control, and can select the most appropriate control strategy according to the characteristics of different motors and application requirements, optimizing the operating performance of the motor and improving the overall control accuracy of the system.

• High Reliability: After strict industrial-grade testing and verification, the internal circuit design fully considers various electrical protection and anti-interference measures. It has perfect functions such as over-current protection, over-voltage protection, short-circuit protection and over-heat protection. It can quickly cut off the circuit when the motor or system is abnormal, protecting the module and the motor from damage, ensuring long-term stable operation in harsh industrial environments, reducing equipment failure rates and improving production efficiency.

• Communication Flexibility: Rich communication interfaces and protocol support enable the module to be easily integrated into various automation control systems. Through communication protocols such as RS - 485 or Modbus, real-time data communication can be carried out with upper computers, PLCs, human-machine interfaces (HMIs) and other devices, realizing functions such as remote monitoring, parameter adjustment and fault diagnosis. Users can understand the operating status of the module in real time through the control system and flexibly adjust the operating parameters of the motor according to production needs, improving the automation level and management efficiency of the production process.

V. Fault Diagnosis and Maintenance

Common Faults and Handling Methods

•


• Over-current Fault: Possible causes include motor overload, motor winding short circuit, damage to internal power devices of the module, etc. The solutions are to check the motor load condition and eliminate overload factors; use professional tools to detect whether the motor winding is short-circuited, and if there is a short circuit, repair or replace the motor; if it is suspected that the internal power devices of the module are damaged, professional technicians are required to disassemble and inspect the module and replace the damaged power devices.

• Over-voltage Fault: Usually caused by excessive grid voltage fluctuation, brake resistor not connected or damaged, excessive motor feedback energy, etc. The handling methods are to install a voltage stabilizer or voltage regulator to stabilize the grid input voltage; check the connection and resistance value of the brake resistor to ensure that the brake resistor works normally; for the case of excessive motor feedback energy, adjust the control parameters or add a brake unit to consume the feedback energy.

• Communication Fault: It may be caused by loose connection of communication cables, incorrect setting of communication protocols, damage to the module communication interface, etc. The solutions are to check the connection of communication cables to ensure a firm connection; carefully check the communication protocol settings to ensure consistency with the settings of the upper computer or other devices; if the communication interface is damaged, contact ABB professional maintenance personnel for repair or replacement of the communication interface module.

• Over-heat Fault: The main causes are poor heat dissipation of the module, high ambient temperature, long-term high-load operation, etc. It can be solved by cleaning the dust and debris on the surface of the module radiator to ensure smooth heat dissipation channels; improving the ventilation and heat dissipation conditions of the equipment to reduce the ambient temperature; reasonably arranging the equipment operation time to avoid long-term high-load operation.

Daily Maintenance Points

•


• Regular Appearance Inspection: Regularly check whether the appearance of the module is damaged, deformed, burned or has other abnormal phenomena. If there is any abnormality, handle it in time to avoid the expansion of faults. At the same time, check whether the module is installed firmly and whether the connecting cables are loose to ensure that the equipment will not have faults due to mechanical looseness during operation.

• Cleaning and Maintenance: Regularly clean the module, use a clean soft cloth or special cleaning agent to clean the dust and dirt on the surface of the module to prevent dust accumulation from affecting the heat dissipation and electrical performance of the module. Especially in dusty industrial environments, the frequency of cleaning should be increased.

• Monitoring Operating Parameters: Use control systems or professional monitoring equipment to regularly monitor the operating parameters of the module, such as input and output voltage, current, temperature, frequency, etc., and compare and analyze them with the normal operating parameter range. If abnormal changes in parameters are found, timely investigate the causes and take corresponding measures to ensure that the module is always in normal working condition.

• Backup and Update: Regularly back up the parameter settings and control programs of the module to prevent data loss. At the same time, pay attention to the software updates and firmware upgrade information released by ABB official, and update the module in time to obtain new functions and performance optimizations, improving the stability and reliability of the module.
