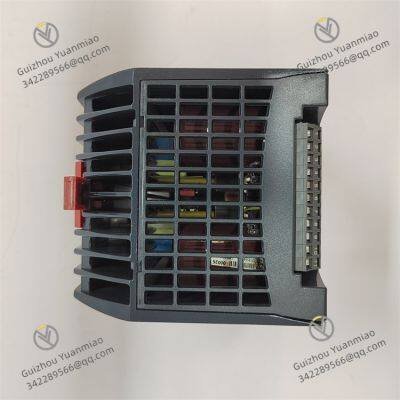

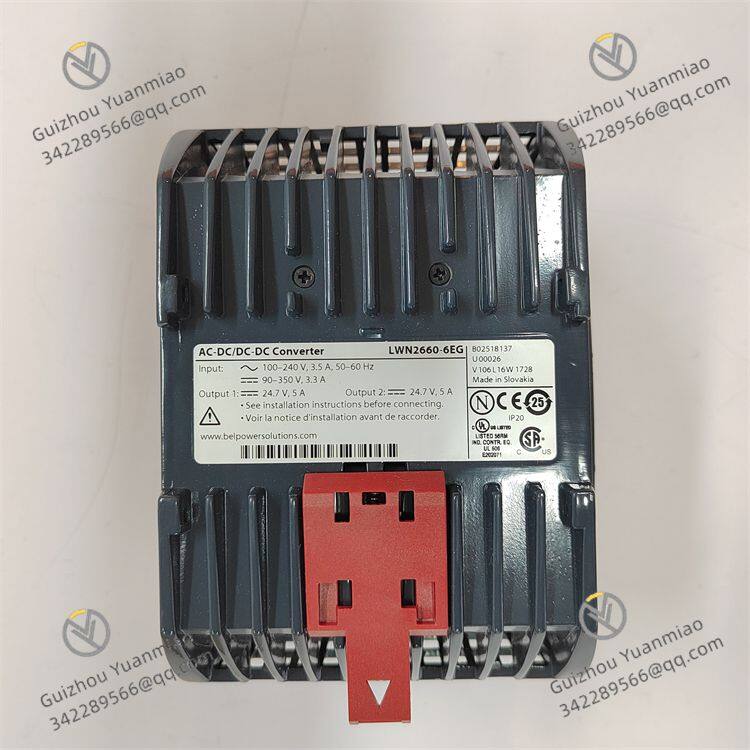

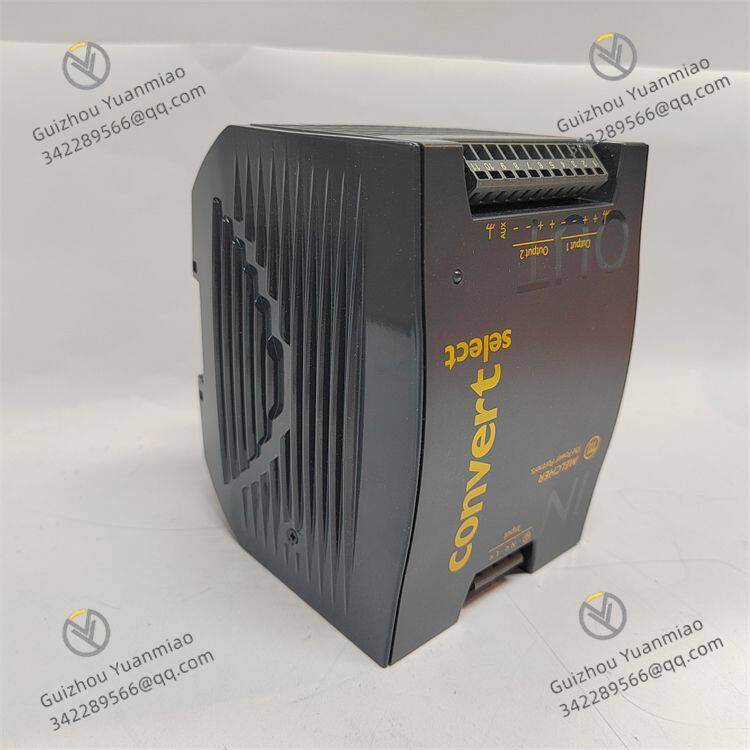

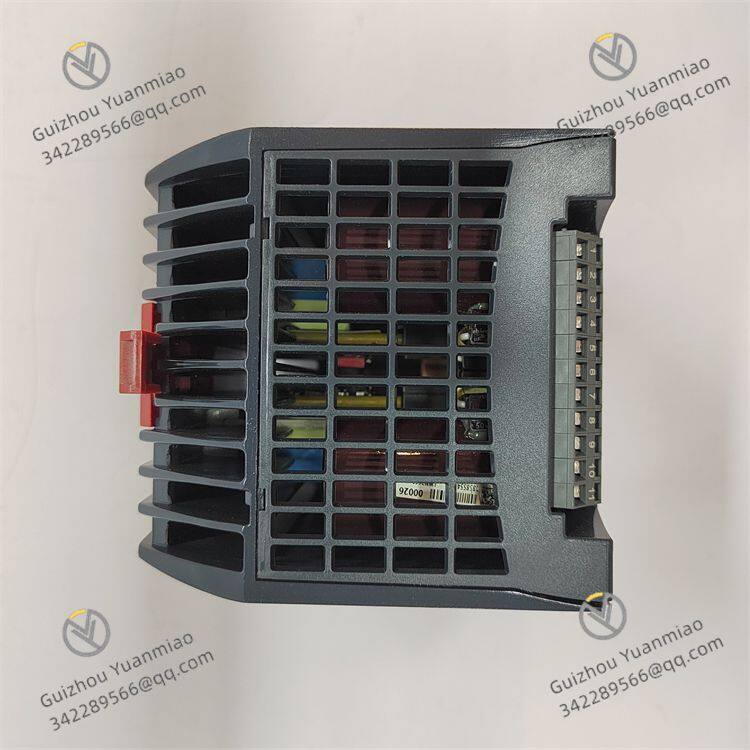

ABB 3BHL000986P7002 DIN Rail AC-DC Power Supply

I. Overview

ABB 3BHL000986P7002 is a distributed I/O module that plays an important role in industrial automation control systems. It is mainly used for the collection and transmission of various signals in industrial fields. It can process on-site digital, analog and other signals, then reliably transmit them to the superior control system, and at the same time receive instructions from the control system and issue them to on-site actuators. It is a key bridge connecting on-site equipment and control systems, widely used in chemical, electric power, metallurgy and other industrial fields, providing strong support for precise control and efficient operation of industrial production.

II. Technical Parameters

•


• I/O Channel Configuration: It has 16 digital input channels and 16 digital output channels, which can simultaneously collect multiple on-site digital signals and output control instructions, meeting the needs of multi-signal processing in industrial fields. The input channel has a fast response time, usually less than 1ms, which can timely capture changes in on-site signals; the output channel has strong driving capability and can directly drive small relays, solenoid valves and other equipment.

• Signal Type: The digital input supports DC 24V signals, compatible with both NPN and PNP input types, and adapts to the output signals of various on-site sensors; the digital output is also DC 24V, with an output current of up to 0.5A per channel, and the total output current does not exceed 8A, which can meet the driving requirements of most small actuators.

• Communication Interface: Equipped with an EtherCAT industrial Ethernet interface, the communication rate is up to 100Mbps, supporting real-time data transmission, ensuring the timeliness of signal collection and instruction issuance. This interface complies with relevant industrial standards and can seamlessly communicate with various mainstream PLC and DCS systems, facilitating system integration.

• Power Parameters: The working power supply is DC 24V, with a typical power consumption of about 5W. The power supply has a reverse connection protection function, which can prevent damage to the module due to wrong power wiring, improving the safety and reliability of the module.

• Environmental Parameters: The operating temperature range is -25℃ to +60℃, which can adapt to the relatively harsh temperature environment of industrial sites; the relative humidity is 5%-95% (non-condensing), and it can operate stably in humid environments. At the same time, the module has a certain anti-vibration and anti-shock capability. When the vibration frequency is 10-57Hz, the acceleration can reach 1g, and the impact acceleration can reach 15g within 11ms, meeting the environmental adaptation standards of industrial-grade equipment.

• Protection Level: The protection level reaches IP20, suitable for the environment installed in the control cabinet, which can effectively prevent dust and other debris from entering the module, ensuring the normal operation of the module.

• Physical Dimensions: The module has a compact shape, with a length × width × height of approximately 120mm×80mm×60mm, and is light in weight, facilitating dense installation in the control cabinet and saving installation space.

III. Functional Features

•


• High-performance Signal Processing: Adopting advanced signal processing technology, it effectively filters and shapes the input digital signals, which can suppress electromagnetic interference in industrial fields and ensure the accuracy and reliability of the collected signals. The output signal is stable and responds quickly, which can accurately control the actions of on-site actuators, improving the control accuracy of the entire control system.

• Flexible Communication Capability: With the EtherCAT industrial Ethernet interface, it can realize high-speed data exchange with the superior control system, supporting real-time control and diagnostic information transmission. At the same time, the module supports multiple communication protocol conversions, and can communicate compatibly with control systems of different brands, enhancing the flexibility and scalability of the system.

• Powerful Diagnostic Function: It has perfect self-diagnosis and fault alarm functions, which can monitor the module's own power supply status, communication status, channel faults, etc. in real time. When an abnormal situation is detected, it will upload the fault information to the control system through the communication interface, and provide local indication through the status indicator on the module, facilitating staff to quickly locate and troubleshoot faults, reducing system downtime.

• High Reliability Design: Using industrial-grade components and rigorous circuit design, it has good anti-interference performance and stability, and can operate stably for a long time in harsh industrial environments. The module is equipped with over-current and over-voltage protection circuits. When abnormal situations such as short circuit and over-current occur at the output end, it can automatically cut off the output to protect the module and on-site equipment from damage.

• Easy Installation and Maintenance: The module adopts a standard rail mounting method, and the installation process is simple and convenient, which can be quickly fixed in the control cabinet. The interface on the module is designed standardly, with convenient wiring, and each channel has a clear identification, facilitating on-site wiring and later maintenance. In addition, the module supports hot-swappable function, which can be replaced without stopping the system, greatly improving the maintenance efficiency of the system.

IV. Common Faults and Solutions

•


• Communication Interruption

• Phenomenon: There is no data transmission between the module and the superior control system. The control system cannot obtain the signals collected by the module, nor can it issue control instructions to the module. The communication indicator of the module is in an abnormal state.

• Possible Causes: The communication cable is loose or damaged, resulting in signal transmission interruption; the EtherCAT interface is in poor contact or damaged; the communication parameter settings are wrong, such as IP address, subnet mask, gateway, etc., which do not match the control system; the communication port of the superior control system is faulty.

• Solutions: Check the connection of the communication cable, re-plug the cable or replace it with a new one to ensure a firm connection; check the EtherCAT interface, clean the dust and debris at the interface, and replace the module if the interface is damaged; check and reset the communication parameters to ensure they are consistent with those of the control system; check the communication port of the superior control system, and repair or replace it if there is a fault.

•


• No Signal in Input Channel

• Phenomenon: One or more digital input channels cannot collect on-site signals. The control system shows that the signal of the channel is always at low level or has no change, and the corresponding input indicator of the module is not on.

• Possible Causes: The on-site sensor is faulty and cannot output signals; the wiring between the sensor and the module is loose, open or short-circuited; the input channel is burned out or the internal circuit is faulty.

• Solutions: Check the on-site sensor, judge whether it is normal by replacement method or detecting its output signal, and repair or replace the sensor if it is faulty; check the wiring between the sensor and the module, repair the open or short-circuit points, and ensure the wiring is firm; if both the sensor and the wiring are normal, it may be a fault in the input channel, and the module needs to be replaced.

•


• No Action in Output Channel

• Phenomenon: After the control system issues an instruction, one or more digital output channels have no corresponding action, the on-site actuator does not work, and the corresponding output indicator of the module is not on or is on but has no output.

• Possible Causes: The internal circuit of the output channel is faulty, such as damage to the driver tube; the wiring between the actuator and the module is loose or open; the actuator is faulty, such as the relay coil is burned out, the solenoid valve is damaged; the module output power supply is faulty and cannot provide sufficient voltage or current for the output channel.

• Solutions: Check the wiring between the output channel and the actuator to ensure it is firm and free of open circuits; check the actuator to determine whether it works normally, and repair or replace it if it is faulty; check the module output power supply to ensure the voltage and current meet the requirements; if the above are normal, it is an internal fault of the output channel, and the module needs to be replaced.

•


• Module Cannot Be Powered On

• Phenomenon: After the power is turned on, the power indicator of the module is not on, and there is no sign of work.

• Possible Causes: The power wiring is wrong or loose, resulting in no power supply to the module; the power voltage does not meet the requirements, such as too high or too low; the internal power circuit of the module is faulty, such as the fuse is burned out, the power chip is damaged.

• Solutions: Check the power wiring to ensure it is correct and firm; measure the power voltage to make it within the normal range of DC 24V; if the power supply is normal, it is a fault in the internal power circuit of the module, and the module needs to be repaired or replaced.
