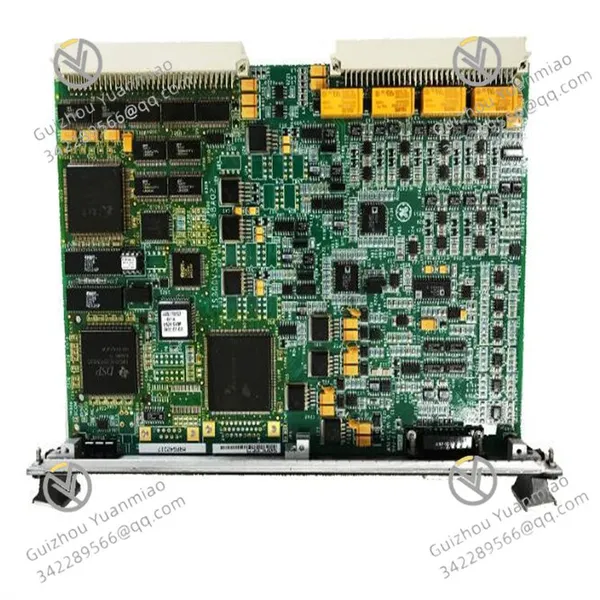

IS200VSVOH1B Servo Output Module photo-2
IS200VSVOH1B Servo Output Module photo-3

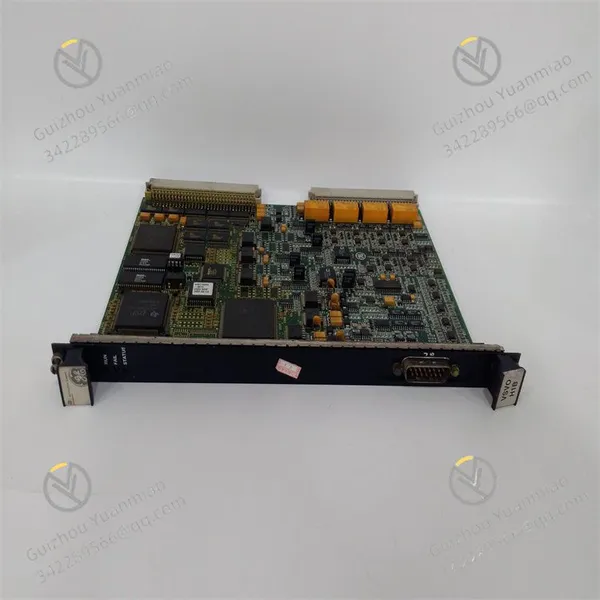

IS200VSVOH1B Servo Output Module photo-4

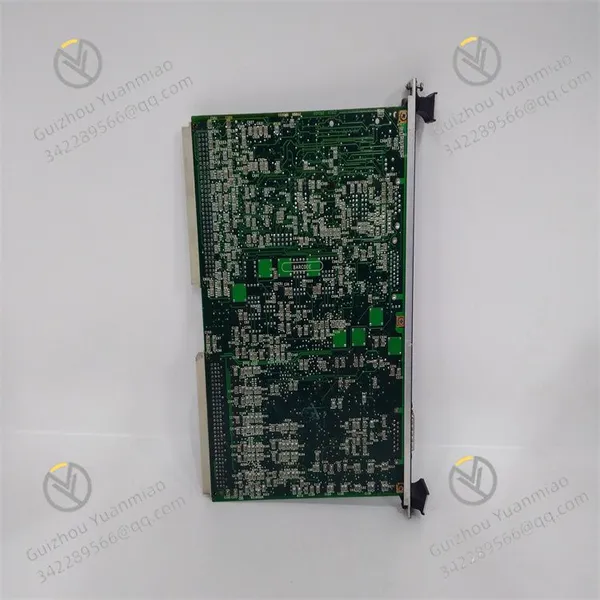

IS200VSVOH1B Servo Output Module photo-5
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, Global universal model
Condition:
Other, Global universal model
Task:
Other, Global universal model
Contact Supplier Request Quote Chat Now
Guizhou Yuanmiao Automation Equipment Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material Other, Global universal model
Condition Other, Global universal model
Task Other, Global universal model
Mathematical Model Other, Global universal model
Signal Other, Global universal model
Customized Non-Customized
Structure Other, Global universal model
Operating temperature -40℃~+85℃
Humidity 5%~95% (non-condensing)




Many products are not on the shelves yet, please contact us for more models.




    IS200VSVOH1B Detailed Information

    The IS200VSVOH1B is a critical module designed by GE (General Electric) for its Mark VIe control system, specifically named the "Valve Servo Output Module". This module is primarily used to control and regulate valve actuators in industrial steam turbines, gas turbines, or other large rotating machinery, ensuring precise flow control and system stability. Below is its detailed specification:
    Basic Parameters

    • System Compatibility: GE Mark VIe Control System

    • Functional Category: Servo Output Module

    • Module Type: Part of the I/O subsystem for analog output control

    • Application Scenarios:

      • Valve control for gas and steam turbines

      • Flow and pressure regulation in industrial processes

      • High-precision servo control applications

    Technical SpecificationsInput/Output Characteristics

    • Output Channels: Typically provides 4-8 independent analog output channels

    • Output Signal Types:

      • Current Output: 4-20mA (standard), maximum load 600Ω

      • Voltage Output: 0-10V or ±10V (optional), minimum load 1kΩ

    • Resolution: 16-bit (high precision for fine control)

    • Output Accuracy: ±0.1% (full scale, at 25°C)

    • Update Rate: ≤1ms (fast response for high-speed control)


     IS200VSVOH1BDC (3)



    • Performance Metrics

    • Isolation Features:

      • Channel-to-Channel Isolation: 500V DC

      • Digital/Analog Circuit Isolation: 1500V DC

    • Common Mode Rejection Ratio: ≥100dB (50/60Hz)

    • Temperature Coefficient: ±50ppm/°C (ensures stability in wide temperature ranges)

    • Electrical Parameters

    • Power Supply: 24V DC (±10%), redundant power supply optional

    • Power Consumption: Typical 10W, maximum 15W

    • Startup Time: ≤2 seconds (cold start)

    • Physical Characteristics

    • Dimensions: Standard GE Mark VIe module size (approx. 177mm × 100mm × 25mm)

    • Weight: Approx. 0.5kg

    • Mounting: DIN rail or rack-mounted

    • Protection Rating: IP20 (requires installation in control cabinets)

    • Operating Environment:

      • Temperature Range: -40°C to +70°C (operating), -40°C to +85°C (storage)

      • Humidity Range: 5%-95% RH (non-condensing)

      • Vibration/Shock Resistance: Complies with industrial standards (IEC 60068-2 series)

    • Functional Features

    • High-Precision Control:

      • 16-bit resolution ensures precise valve position adjustment, ideal for applications requiring extreme accuracy (e.g., turbine speed control systems).

    • Redundancy Design:

      • Hot-swappable, configurable as a redundant module (requires redundant backplane) to enhance system reliability.

    • Real-Time Diagnostics:

      • Built-in self-diagnosis monitors channel status, output value ranges, and hardware faults, providing status feedback via LED indicators or system software.




    IS200VSVOH1BDC (1)

    •
