Home > Electrical & Electronics > Electrical Control System > GE IC697ACC721 Rack Fan Assembly

GE IC697ACC721 Rack Fan Assembly

Guizhou Yuanmiao Automation Equipment Co., Ltd.

1Yr

GE IC697ACC721 Rack Fan Assembly thumbnail-1

GE IC697ACC721 Rack Fan Assembly thumbnail-2

GE IC697ACC721 Rack Fan Assembly thumbnail-3

GE IC697ACC721 Rack Fan Assembly photo-1

GE IC697ACC721 Rack Fan Assembly photo-2

GE IC697ACC721 Rack Fan Assembly photo-3

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other

Certification:

Other

Function:

Other

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other

Certification Other

Function Other

Condition Other

Task Other

Mathematical Model Other

Signal Other

Customized Other

Structure Other

GE IC697ACC721 Rack Fan Assembly

IC697ACC721 is a rack fan assembly produced by GE Fanuc, mainly used for heat dissipation of GE Series 90-70 modules. The specific introduction is as follows:

Basic Parameters:

Operating Voltage: 120 Volts Alternating Current (VAC).
Input Power: 15 to 17 Watts.
Line Current: 0.18 to 0.2 Amperes.
Locked Rotor Current: 0.24 to 0.26 Amperes.
Weight: Approximately 5.94 Pounds.
Operating Temperature: -28 to 70 Degrees Celsius.
Rated Airflow: 71 Cubic Feet per Minute (cfm).

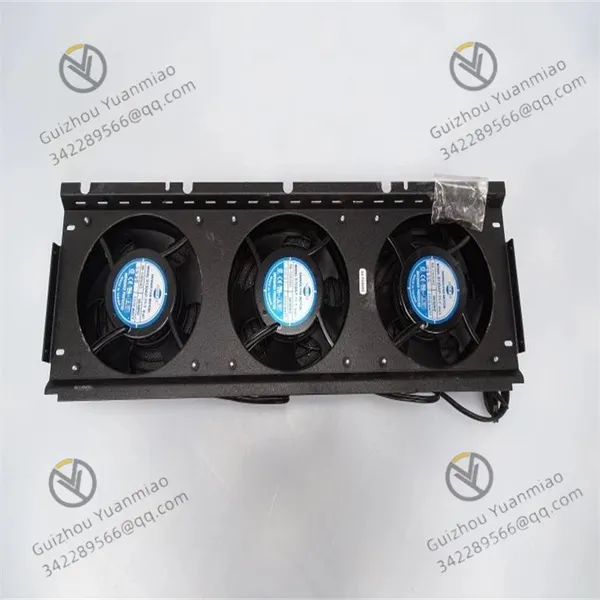

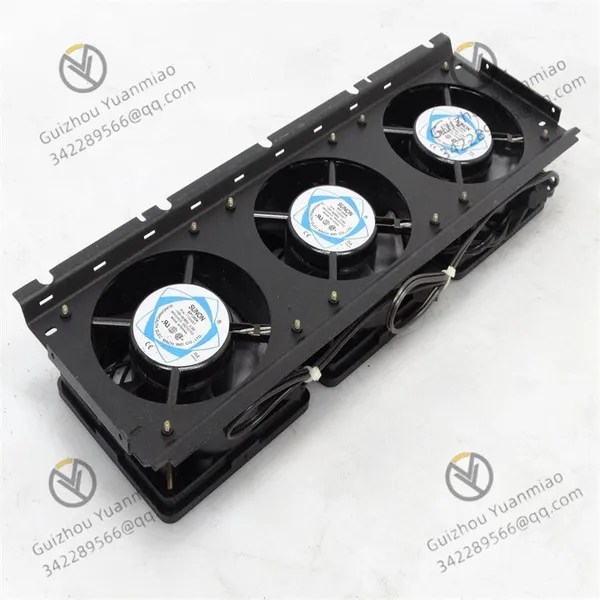

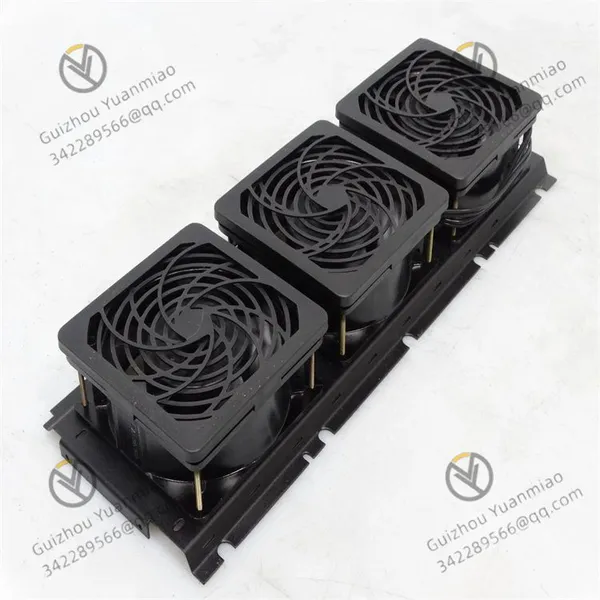

Structural Design: The module contains 3 fans with ball bearings, featuring low noise and long service life. It is equipped with a polyurethane foam filter with a porosity of 30 ppi, which can effectively capture dust. The filter is detachable for easy cleaning or replacement. The module also comes with a cable assembly for parallel connection of the 3 fans, and users can insert the cable into the wiring connector of the fans.

Installation Method: It needs to be installed at the bottom of the rack to allow air to flow upward from the bottom, dissipating heat for the equipment inside the rack. It is compatible with 17-slot VME integrated racks and also applicable to GE racks such as IC697CHS782A and IC697CHS791D.

Functional Features: This module can effectively maintain the optimal temperature level inside the chassis or panel box, helping to improve the performance and service life of surrounding electrical equipment. It also has impact and vibration resistance, enabling stable operation in relatively harsh industrial environments.

Working Principle

Fan Operation Principle: The module has 3 built-in fans with ball bearings, which are connected in parallel through a cable assembly. The left fan is equipped with a 3-foot-long cable that can be connected to a 120 VAC power supply, and the other two fans are connected to the first fan through cables or connector assemblies. When powered on, the motor of the fan drives the blades to rotate, and the electromagnetic force of the motor drives the blades to rotate, thereby generating air flow.

Airflow Circulation Principle: The module must be installed at the bottom of the rack. When the fan is running, it draws in external cold air from the bottom of the rack. The cold air flows upward inside the rack, passes through each electronic module, takes away the heat generated by the modules during operation, and then the hot air is discharged from the top of the rack or other vents, forming an air circulation path from bottom to top to achieve forced air cooling for the equipment inside the rack.

Filtration Principle: The module is equipped with a polyurethane foam filter with a porosity of 30 ppi. During the air inhalation process, the filter can effectively capture dust and other particulate impurities, preventing dust from entering the rack, avoiding dust accumulation on electronic components that may affect heat dissipation or cause circuit failures, ensuring clean air flow, and thus protecting the electronic equipment inside the rack and extending its service life.

Application Fields

Power Industry: It can be applied to the automatic control links of power stations. There are a large number of electrical equipment and control systems in power stations. GE Series 90-70 modules are used to monitor and control equipment such as generators, transformers, and transmission lines. The IC697ACC721 rack fan assembly can dissipate heat for these modules, ensuring the stable operation of the control system and the reliability and safety of power production.

Manufacturing Industry: In production lines such as automobile manufacturing and electronic equipment manufacturing, GE Series 90-70 modules can be used to control equipment such as robotic arms and conveyors to realize the automation of the production process. IC697ACC721 can create a good temperature environment for the modules, ensuring the efficient and stable operation of the production line, and improving product quality and production efficiency.

Paper Industry: The papermaking process involves multiple processes such as pulping, papermaking, and coating, which require precise control of parameters such as temperature, humidity, and speed. GE Series 90-70 modules can accurately control papermaking equipment, and the IC697ACC721 rack fan assembly helps maintain the normal operating temperature of the modules, ensuring the stability of the papermaking process and the quality of paper.

Grain and Oil Processing Industry: For example, in oil mills, GE Fanuc Series 90-70 PLC can be used for the automatic control of pre-pressing workshops and leaching workshops to control soybean pretreatment equipment, oil leaching equipment, etc. IC697ACC721 can dissipate heat for the corresponding modules, ensuring the stable operation of the entire oil pressing system, and improving production efficiency and oil output.

Rail Transit Industry: It can be applied to rail transit signal systems. GE Series 90-70 modules are used to process signal control logic and realize functions such as train operation control and signal display. The IC697ACC721 rack fan assembly dissipates heat for the modules, ensuring that the signal system can work reliably under various environmental conditions and guaranteeing the safety of train operation.

Product Tags: IC697ACC721
