IC694ALG222 Analog Input/output Module

Guizhou Yuanmiao Automation Equipment Co., Ltd.
1Yr
IC694ALG222 Analog Input/output Module thumbnail-1
IC694ALG222 Analog Input/output Module thumbnail-2
IC694ALG222 Analog Input/output Module photo-1
IC694ALG222 Analog Input/output Module photo-2
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, Global universal model
Condition:
Other, Global universal model
Task:
Other, Global universal model
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material Other, Global universal model
Condition Other, Global universal model
Task Other, Global universal model
Mathematical Model Other, Global universal model
Signal Other, Global universal model
Customized Non-Customized
Structure Other, Global universal model
Operating temperature -40℃~+85℃
Humidity 5%~95% (non-condensing)




Many products are not on the shelves yet, please contact us for more models.




    The IC694ALG222 is an analog input/output module manufactured by GE Fanuc, designed for use with the 90-30 series of Programmable Logic Controllers (PLCs). Below is a detailed specification:
    Basic Parameters

    • Model Number: IC694ALG222

    • Module Type: Analog Input/Output Module

    • Channel Configuration: 4 Analog Inputs + 2 Analog Outputs

    • Input Signal Types: Supports voltage (±10V, ±5V, ±1V, etc.) or current (4-20mA, 0-20mA)

    • Output Signal Types: Current (4-20mA) or voltage (0-10V, ±10V)

    • Resolution: 12-bit (both inputs and outputs)

    • Accuracy: ±0.2% of full scale (at 25°C)

    • Sampling Rate: ~10ms per channel (typical)

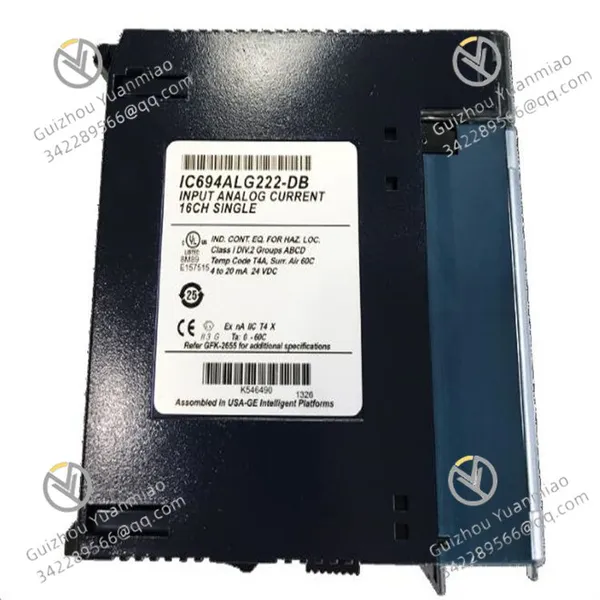

     GE-IC694ALG222 1



    Technical SpecificationsInput Characteristics

    • Input Impedance:

      • Current Mode: 250Ω

      • Voltage Mode: ≥10MΩ

    • Input Ranges: Programmable for various ranges (e.g., ±10V, 4-20mA)

    • Isolation: Channel-to-channel isolation (500V DC)

    • Common Mode Rejection Ratio: ≥100dB (50/60Hz)

    Output Characteristics

    • Output Drive Capability:

      • Current Output: Max load 600Ω

      • Voltage Output: Min load 1kΩ

    • Settling Time: ≤2ms (to ±0.1% of final value)

    • Update Rate: ~10ms per channel

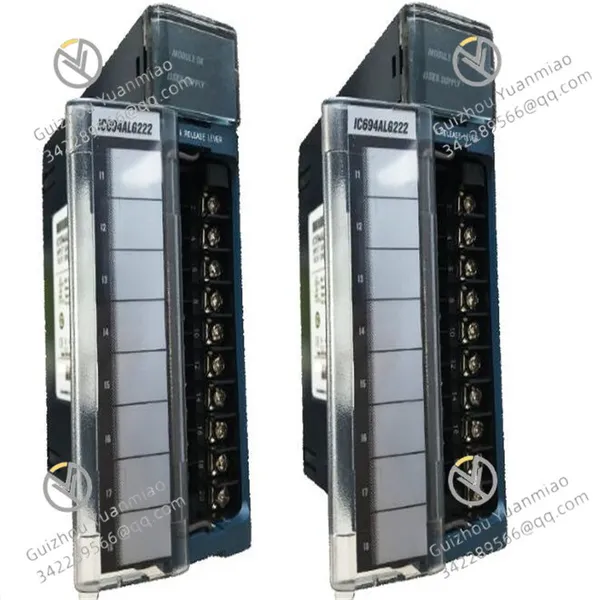

    GE-IC694ALG222 2

    •



    Related products:

    IC697CPX928

    F650BFGF1G1HIE

    IS220UCSAH1A

    IS420UCSBH4A

    IS430SNUAH1A

    SR489-P5-HI-A20

    04220GL21204A

    151X1235DB15SA01EX2100





    Product Tags: IC694ALG222 , Analog input/output module
