Wireless Current and Temperature Acquisition Terminal for Remote Monitoring

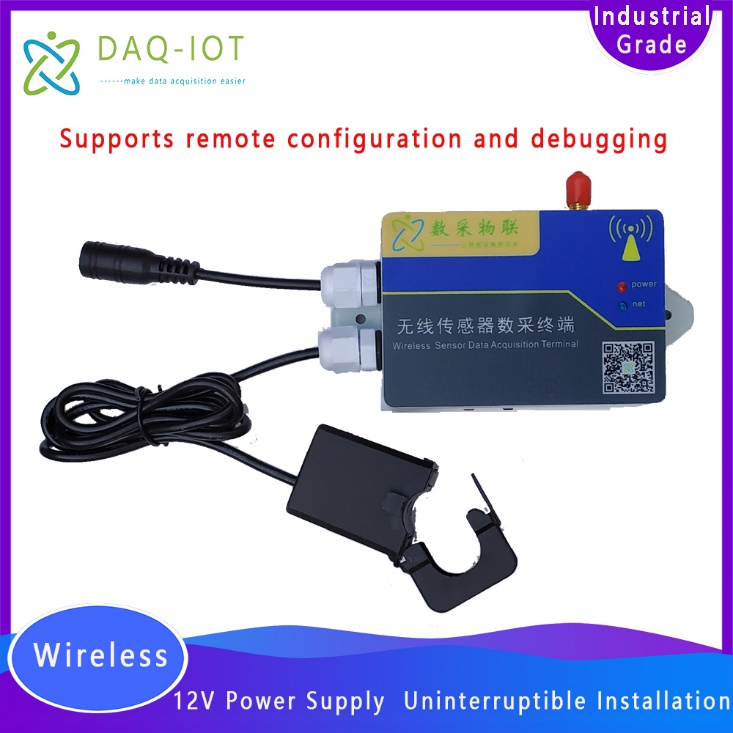

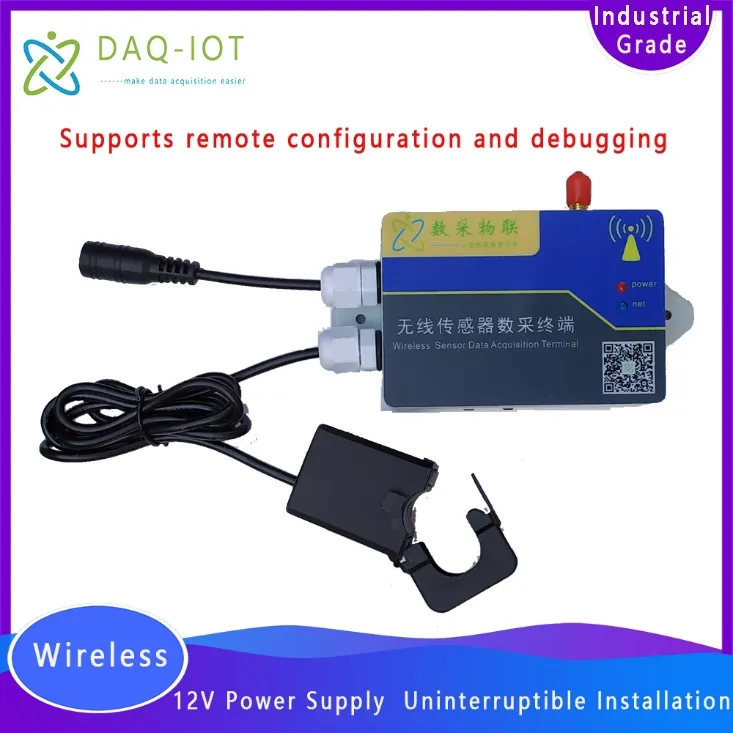

SC-GP-CT01 wireless current and temperature acquisition sensor terminal is equipped with low power consumption and high sensitivity of the open type transformer, through the principle of electromagnetic induction, the primary side of the large current into the secondary side of the small current, and then used for current monitoring, can be very sensitive to detect the size of the line current, and at the same time to the designated platform server wireless report data regularly.

The sensor terminal supports 4G/NB-IOT/LoRa/WiFi communication mode (the battery power supply adopts NB-IOT/LoRa communication mode by default), which overcomes the wireless communication block caused by the special environment on the site, greatly simplifying the field deployment time and reducing the construction cost. This terminal can support up to 8 current acquisition, with a wide range of open and close transformers, high quality magnetic core materials, open and close structure, easy to install, used for AC motors, lighting equipment, air compressors, heating ventilation and air conditioning devices, building self-control system, industrial urban network, rural power grid renovation projects and other scenes of current monitoring and acquisition.
