Smart Industrial Image Recognition Camera 5MP OCR Camera for Digital Meter Reading and Pointer Gauge Monitoring
Product Spotlights
High-Resolution Industrial Imaging;
Advanced OCR & Intelligent Recognition;
Anti-Glare Optical Design;
Auto Focus & Stable Imaging;
Industrial Communication & Integration;
Edge Intelligence & Automation
Advanced OCR & Intelligent Recognition;
Anti-Glare Optical Design;
Auto Focus & Stable Imaging;
Industrial Communication & Integration;
Edge Intelligence & Automation
US$ 220
≥1 Set
Key Specifications
Get Latest Price
Warranty:
1 year
After-sales Service:
Free Technology Support
Transport Package:
Carton Box
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
7 days
Related Products
-
Wireless Meter Reading Camera for Remote Mechanical, Dial & Digital Meter Data CaptureNegotiableMOQ: 1 Unit -
Infrared Optical Probe for Smart Electricity Water Gas Meter Reading AMR SystemUS$ 15 - 25MOQ: 10 Pieces
-
Explosion-Proof Industrial Network Camera | Sony 335 Sensor | 5MP IP Camera for OCR Meter Reading & Industrial MonitoringUS$ 190 - 260MOQ: 10 Sets
-
WiFi Wireless Single-Phase DIN Rail Energy Sensor for Industrial Power MonitoringUS$ 50 - 75MOQ: 1 Set
-
High Precision Inclinometer Sensor for Bridges, Buildings and Infrastructure MonitoringUS$ 80 - 110MOQ: 1 Set
Warranty
1 year
After-sales Service
Free Technology Support
Transport Package
Carton Box
Specification
1 SET
Trademark
Shanghai DAQ-IOT Technology Company
Origin
Shanghai,China
DAQ-GP-OCR500 Industrial Wireless Time-Lapse Camera
10-Minute Setup | 5-7 Year Battery | Auto FTP Upload
24/7 Remote Monitoring for Construction, Agriculture & Industrial Sites
Cut manual inspection costs by 80% and never miss a critical milestone again.
1.Technical Specifications
| Category | Parameter | Specification |
|---|---|---|
| Image System | Image Sensor | 1/2.7" CMOS |
| Effective Resolution | 5MP (2880 × 1620 @ 25fps) | |
| Lens | 2.8mm fixed lens | |
| Focus Mode | VCM auto-focus | |
| Macro Focus Distance | 10–50 cm close-range imaging | |
| Optics | Optical Design | Polarized lens + AR anti-reflection coating |
| Anti-Glare | Reduces reflection, glare, and light interference | |
| Recognition | OCR Function | Digital character recognition |
| Gauge Recognition | Analog pointer gauge recognition | |
| Supported Targets | Digital meters, analog gauges, industrial displays | |
| Image Enhancement | Noise Reduction | 3D digital noise reduction |
| Backlight Compensation | Supported (BLC) | |
| Strong Light Suppression | Supported (HLC) | |
| Shutter | Electronic shutter control | |
| Video Encoding | Compression | H.265 / H.264 |
| Bitrate | 64 Kbps – 3 Mbps adjustable | |
| Storage | Local Storage | MicroSD card supported |
⚡ Electrical Specifications
| Category | Parameter | Specification |
|---|---|---|
| Power Supply | Input Voltage | DC 12V |
| Power Consumption | Power | ≤ 5W |

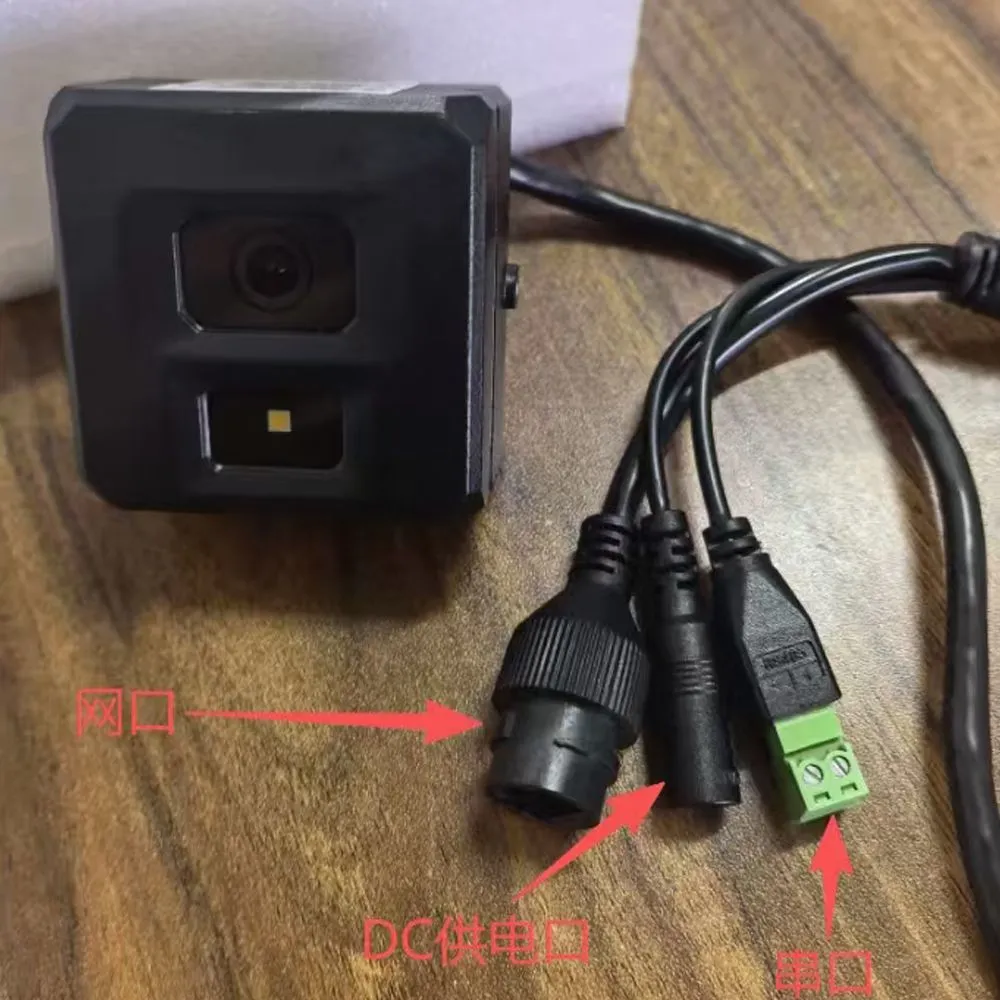

| Network Interface | Ethernet | RJ45 10/100 Mbps |
| Serial Interface | RS485 | Supported |
| Alarm I/O | Alarm | Input / Output supported |
🌐 Communication & Protocols
| Category | Parameter | Specification |
|---|---|---|
| Network | Type | Wired Ethernet |
| Serial | Interface | RS485 |
| Protocols | Industrial Protocols | Modbus RTU / Modbus TCP |
| Integration | System Compatibility | SCADA / PLC / IoT platforms |
| Data Access | Multi-platform | Multi-host access supported |
| Remote Management | Functions | Parameter configuration / firmware upgrade / live preview |
🏗 Mechanical Structure
| Category | Parameter | Specification |
|---|---|---|
| Housing Material | Body | ABS + metal bracket |
| Protection Rating | IP Level | IP67 (dustproof & waterproof) |
| Installation | Mounting Options | U-bracket / adapter bracket / wall mounting / adhesive |
| Dimensions | Size | 57.9 × 57.9 × 30.1 mm |
| Design | Feature | Compact industrial design |
🌡 Environmental Conditions
| Category | Parameter | Specification |
|---|---|---|
| Operating Temperature | Range | -30°C to +70°C |
| Operating Humidity | Range | 0% – 95% RH (non-condensing) |
2.Photo Review
3.Wide Range of Applications
🏗️ Construction: Building progress tracking, bridge/road construction monitoring
🌱 Agriculture: Greenhouse crop growth, livestock farm monitoring
🏭 Industrial: Factory production line, warehouse security
⚡ Energy: Solar farm, wind turbine, power station inspection
🌍 Environment: Environmental monitoring, mining site surveillance
4. Why Choose Us?
✔️ 10+ years of experience in industrial IoT and data acquisition
✔️ OEM/ODM customization available (logo, firmware, packaging)
✔️ MOQ: 1 unit for sample testing, bulk order discount
✔️ Fast delivery: 3-7 days for samples, 15-25 days for bulk orders
✔️ 1-year warranty and lifetime technical support
