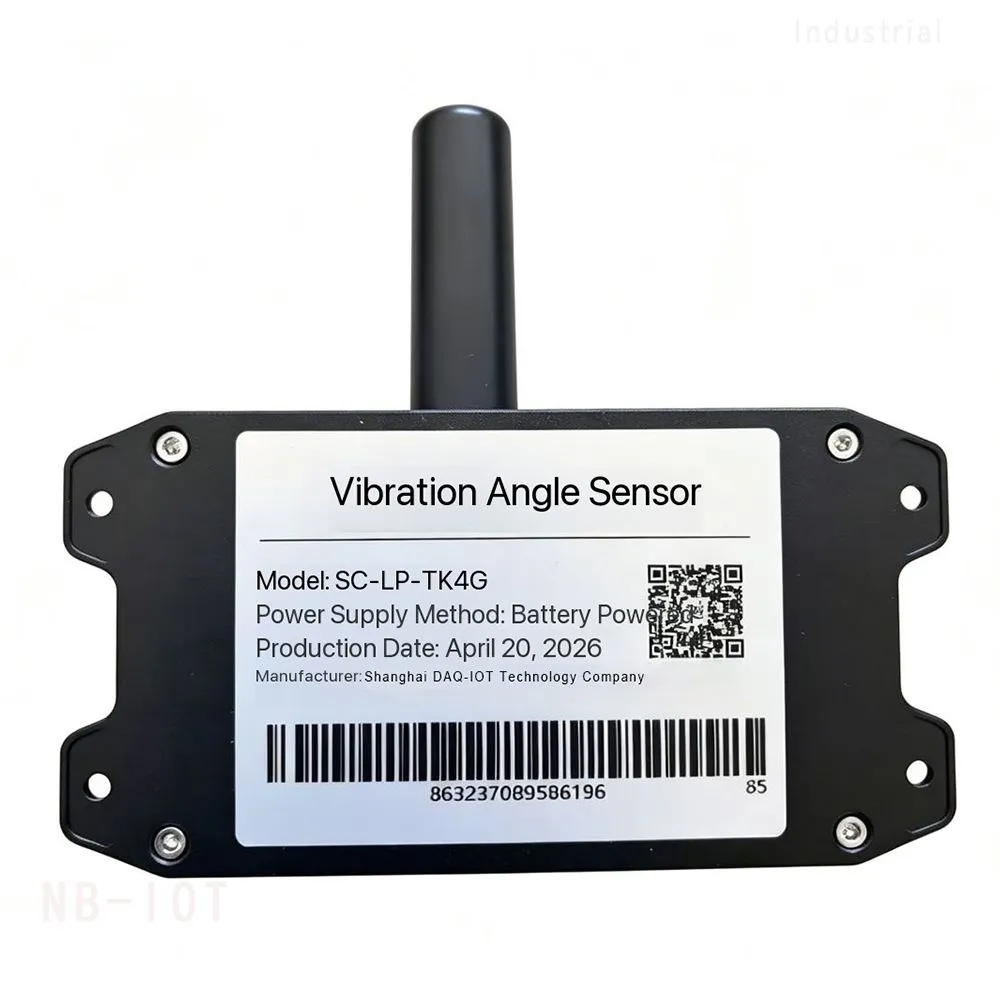

🌐 MEMS Tilt Sensor for Industrial & Structural Monitoring
Industrial-Grade MEMS Inclinometer Sensor for Real-Time Angle Measurement & Structural Health Monitoring
1. Product Overview
The MEMS Tilt Sensor is a high-precision digital inclinometer designed for real-time angle measurement and structural stability monitoring.
Based on advanced MEMS (Micro-Electro-Mechanical Systems) technology, it provides accurate tilt detection in both static and dynamic environments.
It is widely used in industrial equipment, infrastructure monitoring, bridge safety, building deformation tracking, and IoT-based remote monitoring systems.

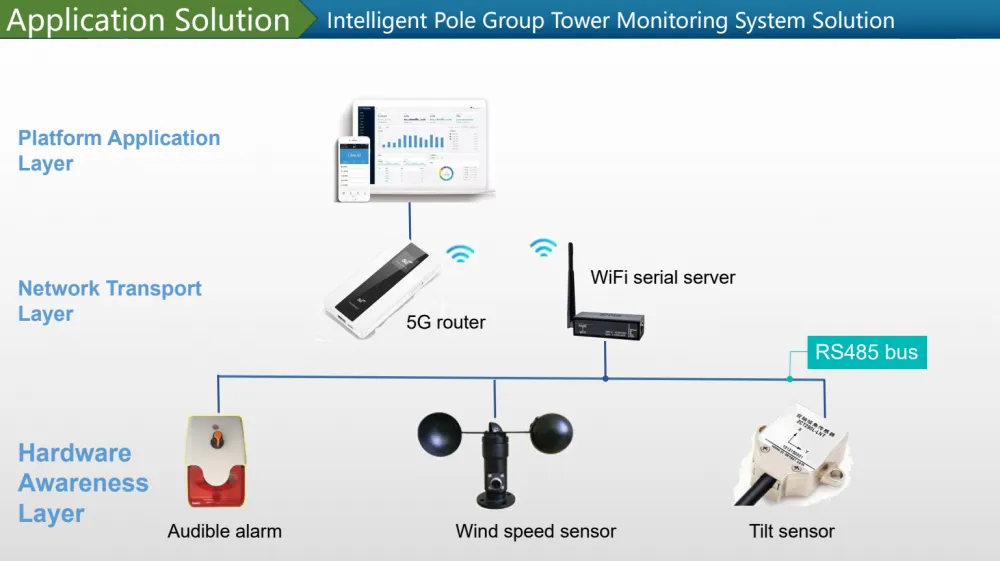

2. IoT Monitoring Solution
The MEMS Tilt Sensor can be integrated into a complete IoT-based structural monitoring system, enabling:
Real-time cloud data transmission
Remote monitoring via web or mobile platform
Alarm threshold configuration
Multi-sensor network deployment
Data logging and analysis for predictive maintenance
3. Technical Specifications
Measurement Range: ±5° / ±15° / ±30° / ±90° (optional)
Accuracy: ±0.1° ~ ±0.5° (depending on model)
Resolution: 0.01°
Output Interface: RS485 / Modbus / Analog / Wireless (optional)
Power Supply: 3.3V / 5V / 9–24V DC
Operating Temperature: -40°C to +85°C
Protection Level: IP67 / IP68 (optional)
Technology: MEMS capacitive sensing
4. Product Review
5. Applications

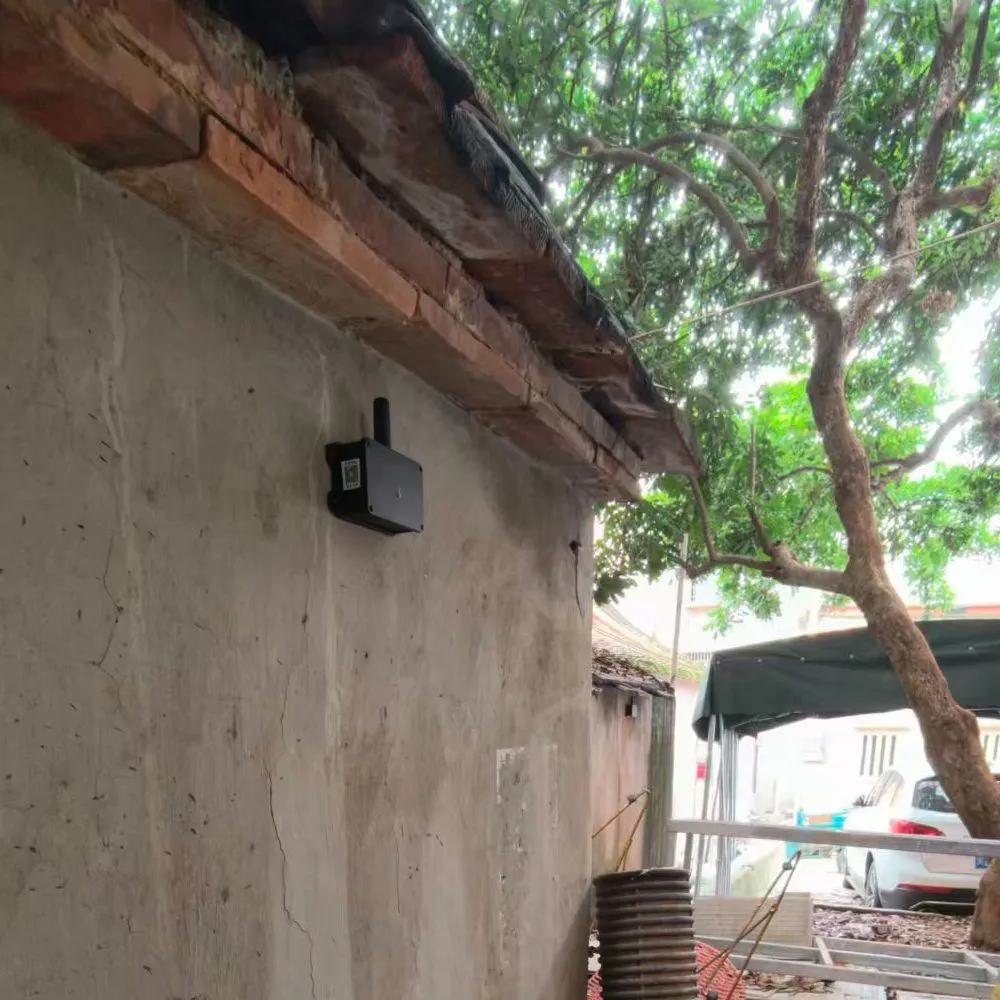

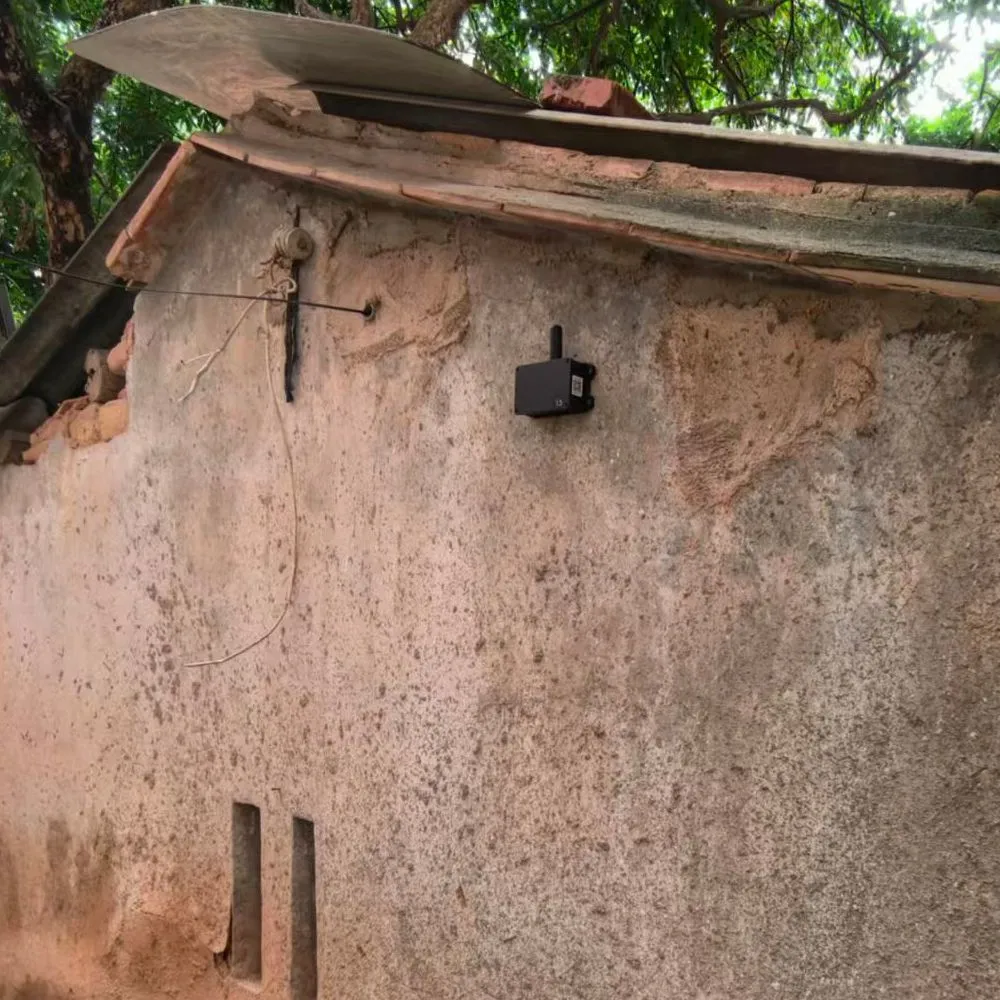

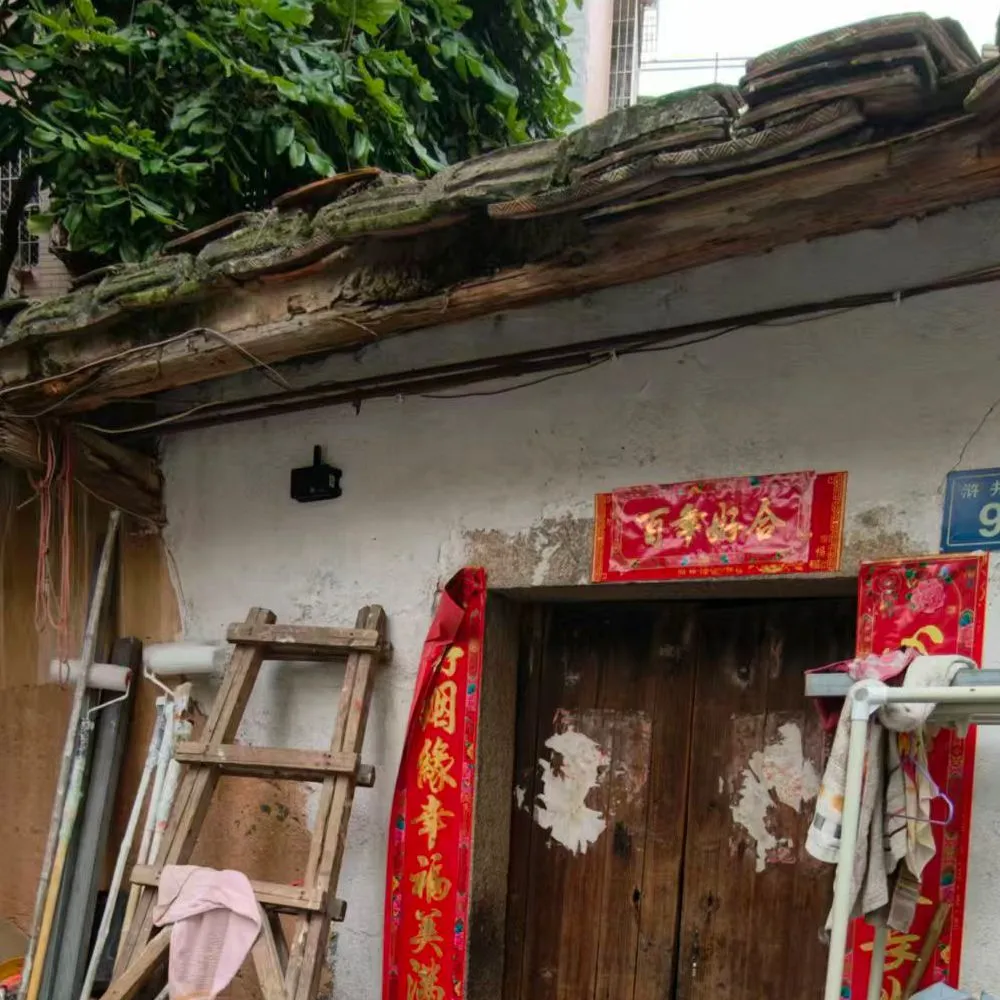

🏚️ Structural Health Monitoring
Historic building deformation monitoring
Heritage structure safety assessment
Long-term tilt displacement tracking
🌉 Infrastructure & Civil Engineering
Bridge tilt monitoring system
Tunnel and viaduct stability monitoring
Dam and slope safety detection
🏭 Industrial Equipment
Heavy machinery angle monitoring
Crane and lifting equipment safety control
Construction machinery tilt alarm system
🌍 Geotechnical & Environmental Monitoring
Landslide monitoring systems
Slope stability analysis
Ground movement detection
