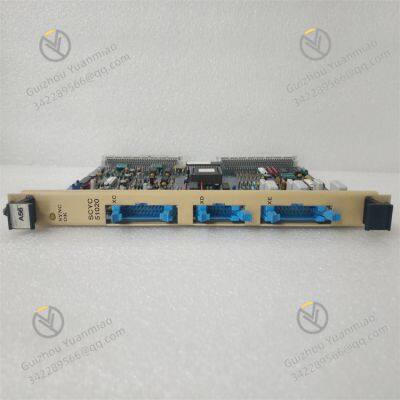

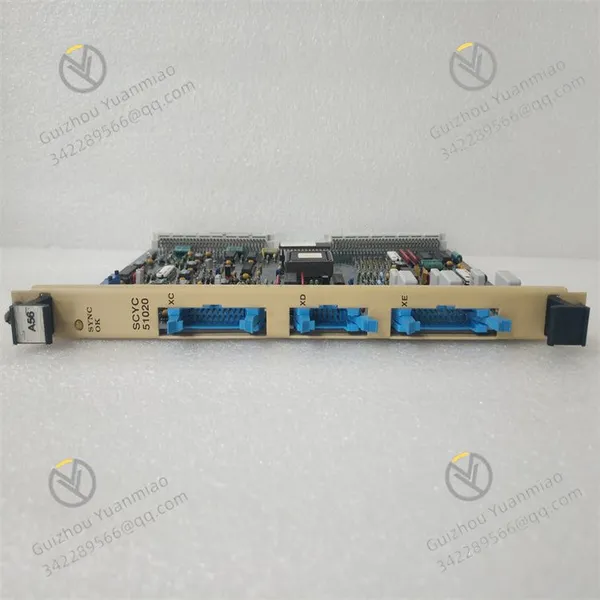

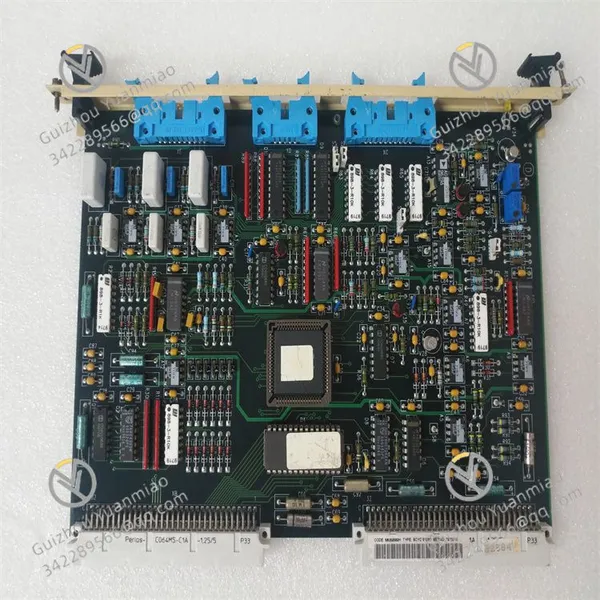

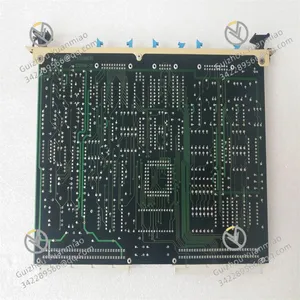

SCYC51020 58052582H Pulse Board

Guizhou Yuanmiao Automation Equipment Co., Ltd. Gold Verified Supplier

1Yr

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Material:

Other, Global universal model

Condition:

Other, Global universal model

Task:

Other, Global universal model

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Material Other, Global universal model

Condition Other, Global universal model

Task Other, Global universal model

Mathematical Model Other, Global universal model

Signal Other, Global universal model

Customized Non-Customized

Structure Other, Global universal model

Operating temperature -40℃~+85℃

Humidity 5%~95% (non-condensing)

Many products are not on the shelves yet, please contact us for more models.

SCYC51020 58052582H
Product Overview: It is a dual-system circuit board card produced by ABB, commonly referred to as a "pulse board," belonging to the Surge Cyclic 5000 series. It is mainly used in industrial automation systems as a communication module, responsible for connecting scattered I/O devices, sensors, actuators, etc., to realize data communication and control between devices.
Technical Parameters:

Power Supply Parameters: The input voltage is AC 220V/50Hz or 100-240VAC; the output voltage is DC 0-220V or 24VDC; the output power is 1.5KW.
Control Accuracy: Adopts PWM control with a control accuracy of 0.5%.
Operating Temperature: The operating temperature range is -10°C to +40°C, and some models can reach -40°C to +60°C.
Physical Specifications: The dimensions are approximately 150mm×100mm×60mm, with a weight of about 0.5kg. The shell material is high-strength plastic, and the protection class is IP65 or IP20.
Communication Interfaces: Supports communication protocols such as Modbus, Profibus, and Ethernet, and provides communication interfaces including Ethernet, Serial, and CAN.

Dual-System Design: Adopts a dual-system architecture, which improves the stability and reliability of the system and ensures continuous and efficient working capability.
Powerful Data Processing Capability: Equipped with a high-performance processor and sufficient memory resources, it can quickly process complex control algorithms and data operations.
High Integration: Integrates various commonly used functional modules, simplifying the design and maintenance of the system and reducing costs.
Modular Design: Facilitates users to customize and expand according to actual needs, improving the maintainability and upgradeability of the system.
