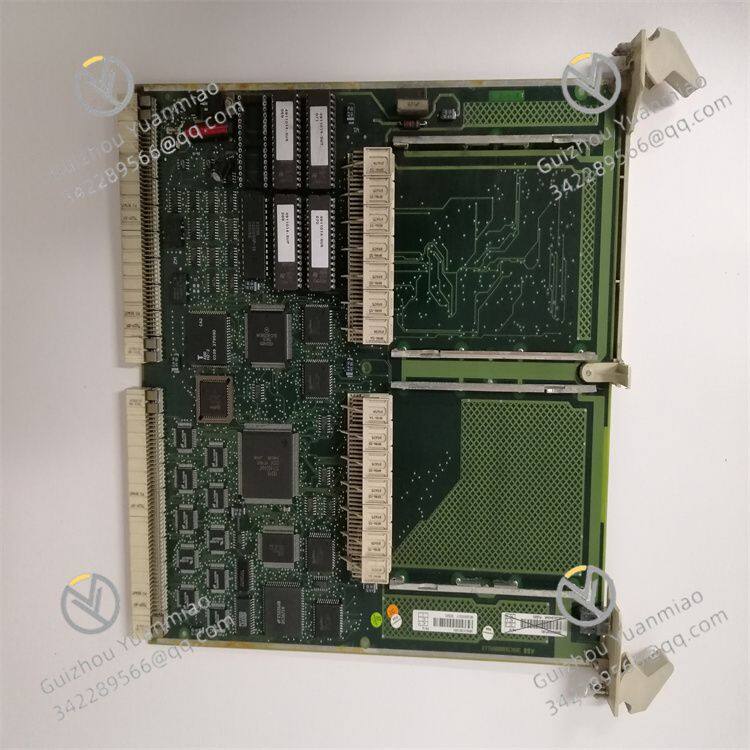

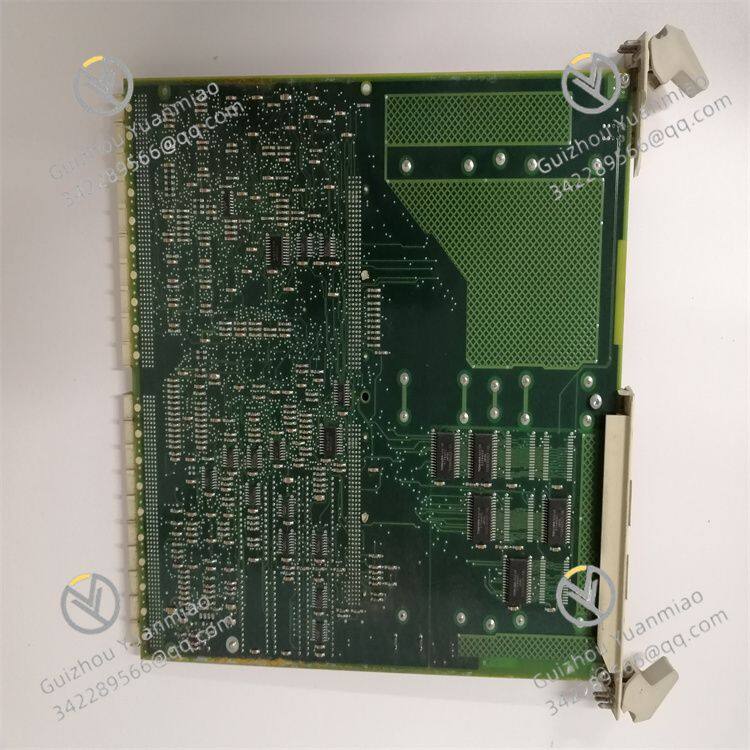

SC520 3BSE003816R1 Automation Control Module

Guizhou Yuanmiao Automation Equipment Co., Ltd.

1Yr

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Material:

Other, Global universal model

Condition:

Other, Global universal model

Task:

Other, Global universal model

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Material Other, Global universal model

Condition Other, Global universal model

Task Other, Global universal model

Mathematical Model Other, Global universal model

Signal Other, Global universal model

Customized Non-Customized

Structure Other, Global universal model

Operating temperature -40℃~+85℃

Humidity 5%~95% (non-condensing)

Many products are not on the shelves yet, please contact us for more models.

Product Overview: SC520 3BSE003816R1 is an industrial automation control module produced by ABB, belonging to the SC520 series. It is part of ABB's Extended Automation System 800xA, mainly used for process control, data acquisition, and automation system integration, etc.
Technical Parameters:

Power Supply Parameters: Usually with a 24V DC power input. Some data shows that the maximum power can reach 100W, and the power consumption is sometimes less than 5W, which varies depending on the product model or configuration.
Communication Interfaces: Supports communication interfaces such as RS-232, RS-485, and Ethernet, and is compatible with multiple communication protocols including Modbus and Profibus.
Operating Temperature: The operating temperature range is relatively wide, commonly from -20°C to +60°C, and some data indicates that it can work in environments ranging from -40°C to +70°C.
Physical Specifications: The dimensions are approximately 140mm×122mm×30mm, with a weight of about 0.2kg. The shell material is mostly aluminum alloy, and the protection class includes different types such as IP20 and IP65.

Adopts a modular design, facilitating users to configure and expand according to actual needs, and making later maintenance and upgrades convenient.
May include analog input and output function blocks for receiving and processing analog signals, which can be applied to industrial scenarios requiring high-precision measurement and control.
Integrates PID (Proportional-Integral-Derivative) control function blocks, enabling precise control between process variables and set values.
