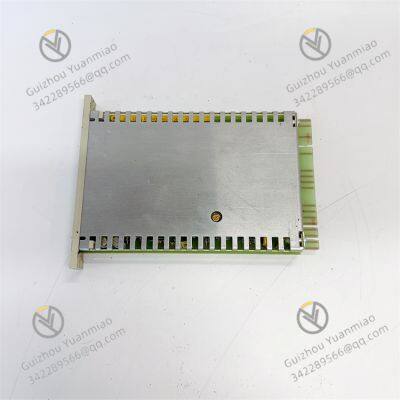

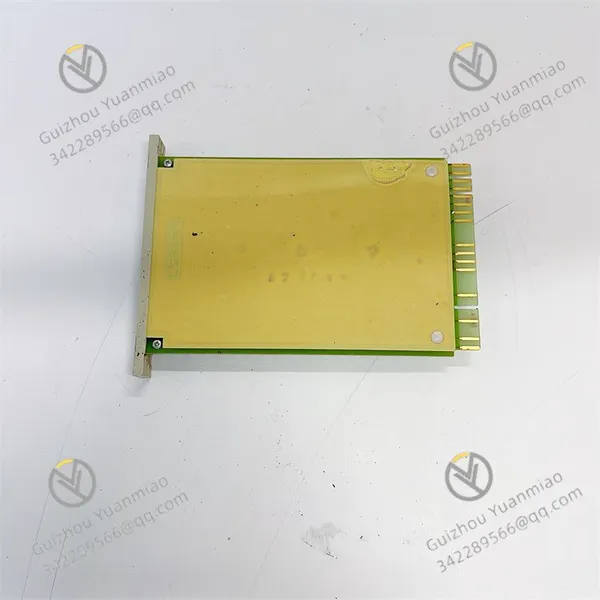

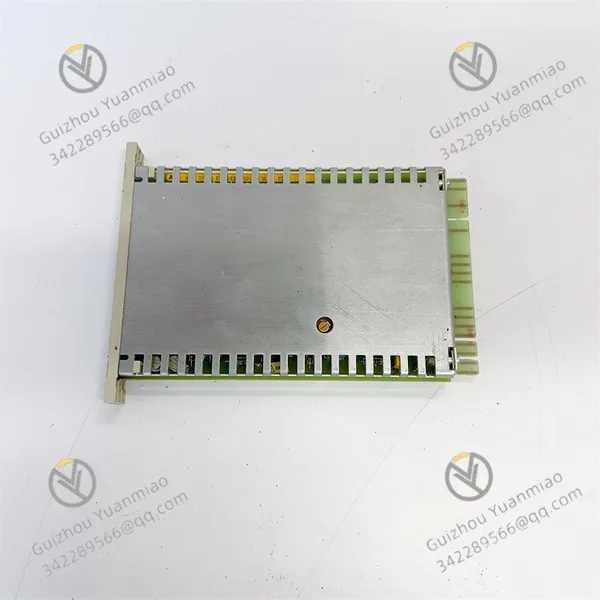

P3EA HENF315216R1 Industrial Automation Control Module

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Material:

Other, Global universal model

Condition:

Other, Global universal model

Task:

Other, Global universal model

Guizhou Yuanmiao Automation Equipment Co., Ltd.

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Material Other, Global universal model

Condition Other, Global universal model

Task Other, Global universal model

Mathematical Model Other, Global universal model

Signal Other, Global universal model

Customized Non-Customized

Structure Other, Global universal model

Operating temperature -40℃~+85℃

Humidity 5%~95% (non-condensing)

Many products are not on the shelves yet, please contact us for more models.

Product Overview: P3EA HENF315216R1 is an industrial automation control module under ABB, belonging to the E-series product line. It is mainly used in programmable logic controllers (PLC) and distributed control systems (DCS) to undertake tasks such as industrial on-site signal acquisition, logical operation, and equipment control. It can realize precise regulation and real-time monitoring of production processes, improving the stability and efficiency of industrial automation systems.
Technical Parameters:

Power Supply Parameters: The input voltage is 24V DC±20%, supporting wide voltage input to adapt to power fluctuations in industrial sites; the rated power consumption is approximately 5W, with low energy consumption.
Input/Output: It includes multiple channels of digital input (DI), digital output (DO), analog input (AI), and analog output (AO). Among them, analog input supports standard industrial signals such as 4-20mA and 0-10V, with an accuracy of up to ±0.1%; digital output supports relay or transistor output, and the maximum load current is 2A or 5A depending on the model.
Communication Capability: It supports mainstream industrial communication protocols such as Modbus RTU and Profibus DP, and is equipped with an RS-485 serial port and an Ethernet interface, facilitating data interaction with upper computers, HMIs (Human-Machine Interfaces), and other devices.
Environmental Adaptability: The operating temperature range is -20°C to +60°C, and the storage temperature range is -40°C to +85°C, allowing stable operation in high and low temperature environments; the protection class is IP20, suitable for installation in control cabinets.
Physical Specifications: The dimensions are approximately 100mm×80mm×30mm, adopting a DIN rail mounting method, with a weight of about 0.2kg. The compact structure saves installation space.

High-Precision Signal Processing: It adopts advanced AD/DA conversion technology, ensuring high accuracy in the acquisition and output of analog signals, thus guaranteeing the accuracy of control commands.
Anti-Interference Design: The module internally uses photoelectric isolation and electromagnetic shielding technologies, which can effectively resist electromagnetic interference in industrial sites and ensure the stability of signal transmission.
Flexible Programming and Configuration: It supports standard programming languages such as ladder diagrams and structured text, and provides intuitive configuration tools, facilitating engineers to quickly develop control logic and set parameters.
Self-Diagnosis and Protection: It has a comprehensive self-diagnostic function, which can monitor the operating status of the module in real-time (such as power abnormalities, communication failures, etc.) and trigger alarms; it also has overcurrent and overvoltage protection to prevent damage to the module caused by faults in external devices.
Modular Expansion: It can be compatible and combined with other modules in the same series, allowing expansion of input/output points or functions according to actual needs, improving the flexibility of system configuration.
