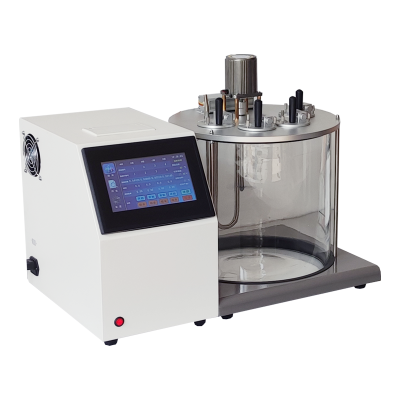

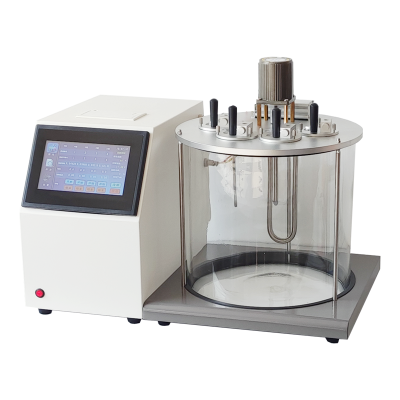

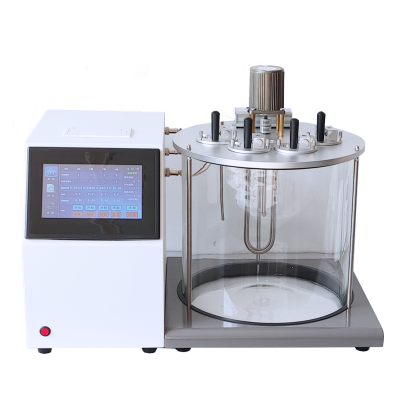

Kinematic Viscosity Tester

Kinematic Viscosity Tester thumbnail-1
Kinematic Viscosity Tester thumbnail-2
Kinematic Viscosity Tester thumbnail-3
Kinematic Viscosity Tester thumbnail-4
Kinematic Viscosity Tester photo-1
Kinematic Viscosity Tester photo-2
Kinematic Viscosity Tester photo-3
Kinematic Viscosity Tester photo-4
US$ 2000 ≥1 Set
Key Specifications
Get Latest Price
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Jilin, Jilin, China
Contact Supplier Request Quote Chat Now
Jilin RuiGu Scientific Instruments Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
1. Product Introduction
The Petroleum Product Kinematic Viscosity Tester is designed and manufactured in accordance with the provisions of GB/T 265 Standard Test Method for Kinematic Viscosity of Petroleum Products and Calculation Method for Dynamic Viscosity. It is suitable for determining the kinematic viscosity of liquid petroleum products (referring to Newtonian liquids) under a constant temperature condition.
2. Main Functions and Features

  1. Adopts a 7-inch color touch screen and a 32-bit microprocessor as the control core, with a graphical operating system.

  2. Equipped with a high-precision Pt100 sensor and a dedicated PID temperature control program for kinematic viscosity, ensuring accurate and stable temperature control.

  3. The water bath upper cover and viscometer fixture are made of anodized aluminum, which is aesthetically pleasing and durable.

  4. Can store the coefficients of 20 viscometers, which can be retrieved at any time during use.

  5. The instrument has 4 independent timing channels, and can automatically calculate and print results after the test is completed.

  6. Can store 50 sets of test data, facilitating the search of test records, and the results can be printed and deleted at any time.

  7. Equipped with a high-precision perpetual calendar clock, which keeps time accurately, requires no battery replacement, and is maintenance-free in the later stage.

  8. Configured with an RS232 interface, which can be connected to the LIMS (Laboratory Information Management System).

3. Technical Specifications

  1. Working Power Supply: AC 220V±10%, 50Hz;

  2. Heating Power: 1500W;

  3. Temperature Control Range: Room temperature ～ 100.0℃;

  4. Temperature Control Accuracy: ±0.01℃;

  5. Timing Range: 0.0s ～ 9999.9s;

  6. Timing Accuracy: No more than ±0.01% within 60 minutes;

  7. Number of Samples: 4 sets of capillary viscometers;

  8. Operating Environment: Ambient temperature 10℃ ～ 35℃, relative humidity ≤ 85％;

  9. Temperature Sensor: Pt100 platinum resistance;

  10. Overall Dimensions: 580360450 (unit: mm, default if not specified in the original document);

  11. Weight: 22kg

4. Operating Conditions

  1. Ambient Temperature: 5℃ ～ 40℃;

  2. Relative Humidity:

  3. Input Power Supply: AC 220V±10V, 50Hz.

5. Packing List
Serial Number Name Unit Quantity Remarks
1 Kinematic Viscosity Tester Main Unit Set 1 RND Type
2 Thermal Printing Paper Piece 2 -
3 Power Cable Root 1 -
4 Fuse Piece 2 10A
5 Ostwald Viscometer Piece 2 -
6 Viscometer Clamping Device Piece 4 -
7 Instruction Manual Copy 1 -
8 Packing List Copy 1 -
9 Certificate of Conformity



Product Tags: Kinematic Viscosity Tester , Kinematic Viscosity
