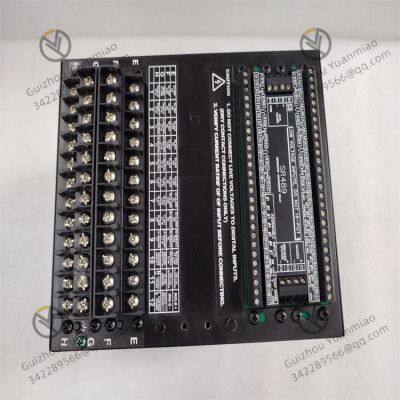

GE 489-P5-HI-A1-E SR489 Generator Protection System Series Modules

GE 489-P5-HI-A1-E SR489 generator protection system series modules

• Control Power: 90-300VDC or 70-265VAC.

• Insulation Voltage: 300V.

• Phase Current Transformer (CT): 5A.

• Protection Class: IP20-X.

Functional FeaturesAnalog Output

• 0-1mA analog output transmits monitored electrical parameters (e.g., current, voltage) for data collection or system integration with other devices.

Communication Interfaces

• Equipped with RS232 and RS485 ports, supporting data interaction with other devices/systems via industrial standard protocols (e.g., Modbus RTU/TCP) for remote monitoring, parameter setting, and fault diagnosis.

Protection Functions

• Inherits protection features of GE Multilin 489 series, including:

• Generator stator differential protection

• 100% stator ground fault protection

• Backup phase distance protection

• Sensitive directional power protection

• Circuit breaker fault protection

• Effectively ensures generator safety.

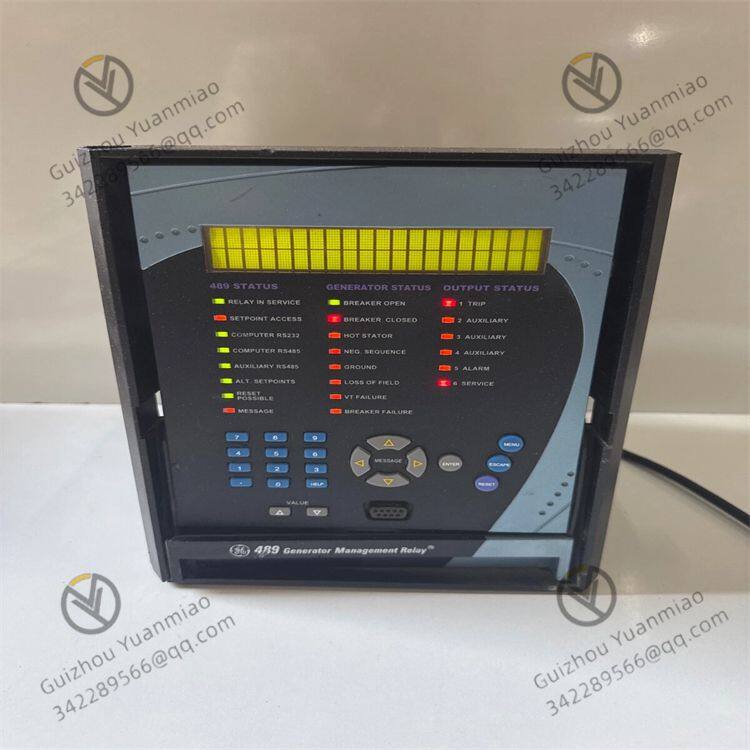

Display and Operation

• User-friendly large front-panel interface for real-time power monitoring and setpoint access.

• Sunlight-readable display enables easy viewing of operating parameters and configuration.

•


Application Scenarios1. Medium-Small Power Plants & Distributed Energy Stations

• Requirement: Real-time monitoring of electrical parameters and rapid fault response for medium-small generators (e.g., gas turbines, diesel generators, energy storage generators for PV inverters) to ensure stable grid-connected/off-grid operation.

• Value:

• Monitors voltage, current, frequency, power factor, etc., with overcurrent/undervoltage/overvoltage protection against grid fluctuations.

• Supports stator overheat protection (via PT100 sensors) and bearing temperature monitoring to prevent winding damage.

• Controls generator start/stop and grid switching, uploading data to SCADA via communication interfaces (e.g., Modbus RTU/TCP) for centralized monitoring.




2. Substations & Power Transmission Systems

• Requirement: Quick fault isolation for transformers and high-voltage motors in substations to prevent grid instability.

• Value:

• As transformer backup protection, detects ground faults via zero-sequence current and prevents damage from phase sequence errors.

• Transmits 4-20mA analog signals to substation DCS for real-time status feedback (e.g., load current, voltage deviation) to assist fault prediction.

• Enables networking with other protection devices for collaborative protection in substation automation systems (e.g., interlocking with circuit breaker control units).




3. Petroleum, Chemical & Natural Gas Industries

• Requirement: Stable operation of critical motors (e.g., compressors, oil pumps, reactor drive motors) under high-load and flammable environments with strict fault response times.

• Value:

• Provides rapid protection against motor locked rotor, overload, and phase loss to avoid production interruptions (e.g., pressure anomalies from natural gas pipeline compressor shutdown).

• Supports temperature monitoring (winding/bearing) in explosion-proof environments to prevent safety accidents from overheating.

• Integrates with plant PLC systems for  control of production processes and motor status (e.g., automatic speed adjustment based on process parameters).




4. Metallurgy & Heavy Industry Manufacturing

• Requirement: Real-time monitoring and protection for high-power equipment (e.g., blast furnace blowers, rolling mill drive motors) under high-current and severe vibration to enhance productivity.

• Value:

• Monitors motor parameters under heavy loads, using inverse-time overcurrent protection to prevent long-term overload damage (e.g., impact current protection during rolling mill start/stop).

• Connects to industrial IoT platforms via Ethernet for remote parameter adjustment and fault early warning (e.g., predicting bearing wear trends from historical data).

• Supports load unbalance protection to prevent rotor overheating from phase loss or uneven loading, ensuring continuous production (e.g., steel continuous casting machine drive motors).




5. Municipal Engineering & Infrastructure

• Requirement: Automatic start/stop of high-voltage water pumps and drainage motors in urban water supply pumping stations and sewage treatment plants, with unattended monitoring.

• Value:

• Automatically controls motor start/stop based on water level sensors (e.g., pumps running according to sump , reducing manual intervention.

• Uploads operation data to municipal monitoring centers via Modbus TCP for remote maintenance (e.g., automatic alarm SMS for faults).

• Provides phase loss and undervoltage protection to prevent pump shutdown from municipal power fluctuations, ensuring continuous water supply/drainage.




6. Data Centers & Critical Power Supply

• Requirement: Quick start and stable power supply for data center backup diesel generators during mains outages, with millisecond-level fault detection.

• Value:

• Monitors voltage build-up time and frequency stability during generator start-up to ensure seamless backup power switching (e.g.,  control with UPS systems).

• Prevents reverse power flow from generators to the mains via reverse power protection, ensuring maintenance safety.

• Integrates with data center BMS (Building Management System) to display real-time generator load rate, fuel consumption, etc., for optimized energy management.




7. Marine & Offshore Engineering

• Requirement: Reliable operation of main ship generators and propulsion motors in vibrating and humid environments, complying with maritime safety standards (e.g., ABS, DNV certifications).

• Value:

• Provides ship-specific reverse sequence (phase sequence error) and underfrequency protection (prevents low frequency from diesel governor failures).

• Waterproof and dustproof design adapts to marine environments, enabling parallel generator control via CANopen or Modbus communication with ship PMS (Power Management System).

• Overload and short-circuit instantaneous trip functions quickly isolate faults to prevent ship power system paralysis and ensure navigation safety.




8. Renewable Energy & Microgrid Systems

• Requirement: Energy storage generators for wind/solar power maintain microgrid frequency and voltage stability under unstable power supply.

• Value:

• Frequency deviation protection adjusts generator output in real-time to maintain microgrid frequency within 50/60Hz±0.5Hz (e.g., frequency regulation during wind power fluctuations).

• Integrates with EMS (Energy Management System) via communication interfaces to automatically adjust generator output based on renewable energy generation, optimizing energy allocation.

• LVRT (Low Voltage Ride Through) protection prevents generator disconnection during grid voltage dips, enhancing microgrid reliability.
