GE 489-P5-HI-A20 Generator Management Relay

GE 489-P5-HI-A20 Generator Management Relay thumbnail-2

GE 489-P5-HI-A20 Generator Management Relay thumbnail-3

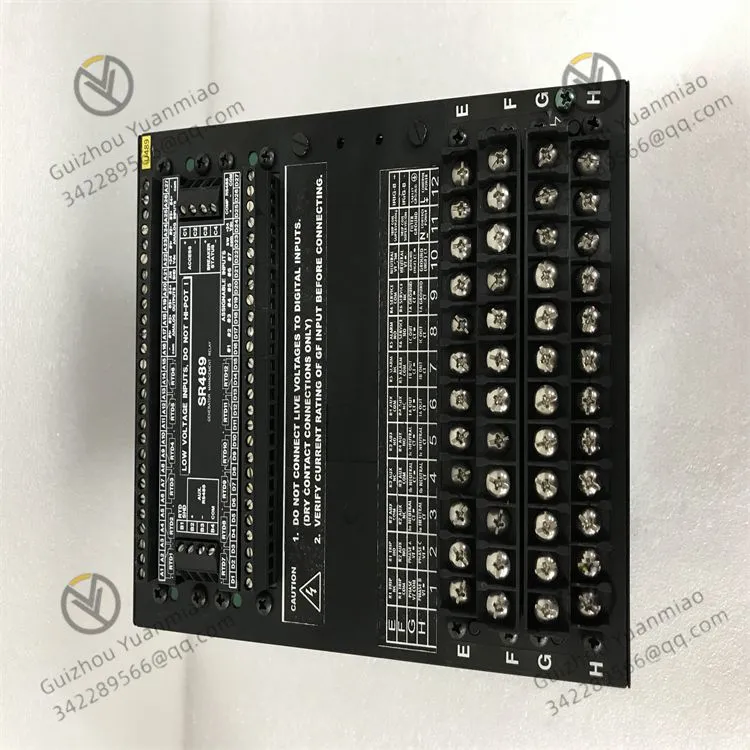

GE 489-P5-HI-A20 Generator Management Relay photo-1

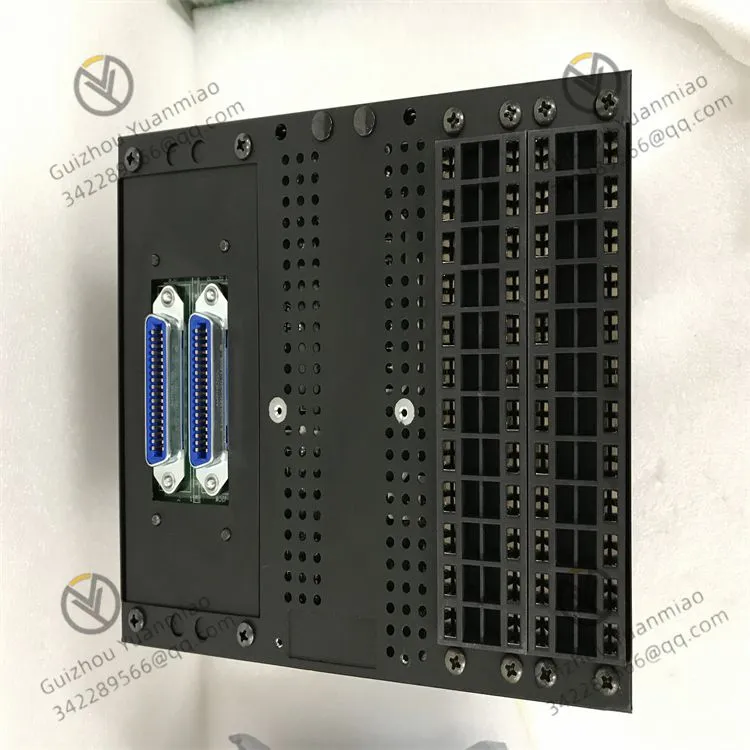

GE 489-P5-HI-A20 Generator Management Relay photo-2

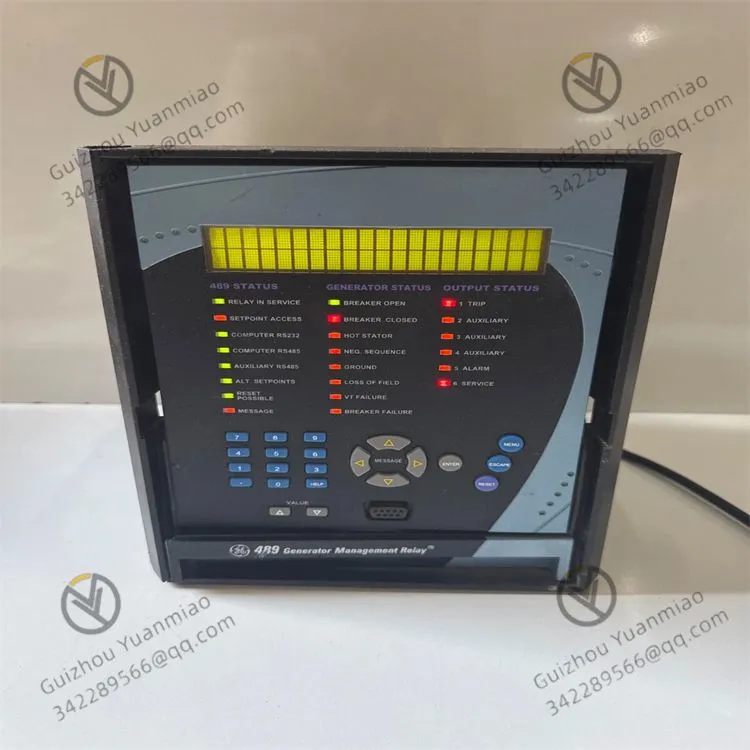

GE 489-P5-HI-A20 Generator Management Relay photo-3

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other

Certification:

Other

Function:

Other

Contact Supplier Request Quote Chat Now

Guizhou Yuanmiao Automation Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other

Certification Other

Function Other

Condition Other

Task Other

Mathematical Model Other

Signal Other

Customized Other

Structure Other

GE 489-P5-HI-A20 generator management relay

The 489-P5-HI-A20 is a generator management relay manufactured by GE Multilin. Its working principle mainly realizes the protection and control of generators through real-time monitoring of generator operating parameters, combined with preset protection logic and control strategies, while interacting with external systems through communication functions. The details are as follows:

Data Acquisition

Obtains 5A phase CT secondary current signals through current transformers (CTs) to monitor parameters such as generator load current.
Can access PT100/PT1000 temperature sensors to monitor motor winding temperature, bearing temperature, etc.
Also performs real-time measurement of generator voltage, frequency, and other parameters, providing a data foundation for subsequent protection and control.

Implementation of Protection Functions

The module integrates multiple protection algorithms and logics:

When the monitored current exceeds the overcurrent protection set value, it triggers protection actions (power cutoff or alarm signals) according to the preset instantaneous or inverse-time characteristics.
If the voltage deviates from the set normal range (such as undervoltage or overvoltage), the module responds promptly to prevent generator damage from voltage anomalies.
It also realizes ground fault protection through zero-sequence current monitoring, detects phase sequence and phase loss, and activates protection when phase sequence errors or phase loss occur. Meanwhile, it has functions such as locked rotor protection, overheat protection, and load unbalance protection to comprehensively ensure generator safety.

Execution of Control Functions

Controls generator start, stop, and switching operations based on preset logic or externally input control signals. For example:

After receiving a start signal from the control system, it controls the generator to close and start according to the set program.
During operation, it automatically adjusts the generator's operating status based on real-time monitored parameters and preset rules to ensure stable power system operation.

Analog Output and Communication

Transmits collected electrical parameters and other information to systems like PLC/DCS through 2-channel 4-20mA analog outputs for advanced data analysis and system integration.
The module is (standard equipped with) an RS485 interface supporting Modbus RTU protocol for multi-device networking communication. It may also have an Ethernet interface supporting protocols like Modbus TCP to facilitate high-speed data interaction with remote monitoring systems, enabling functions such as remote monitoring and parameter setting.

Human-Machine Interaction and Settings

The front-panel LCD display real-time shows generator operating parameters, fault codes, setting menus, etc., allowing operators to intuitively understand equipment status.
Operators can set various module parameters and protection logics through front-panel operation buttons to adapt to different generator systems and operating environments.
Status LED lights visually indicate the module's operation, fault, and alarm status for quick equipment condition assessment.

Application ScenariosPower Plants

Protects and controls medium-small generators by monitoring operating parameters (voltage, current, frequency, power, etc.), providing stator differential protection, stator/bearing thermal protection, and controlling start/stop/switching to ensure stable generator operation.

Substations

Protects transformers by monitoring and safeguarding against overload, short circuit, ground faults, etc. It also transmits transformer electrical parameters to the substation monitoring system via 4-20mA analog outputs for real-time operation tracking by maintenance personnel.

Petrochemical Industry

Protects and controls high-power motors (e.g., compressors, pumps) in petrochemical enterprises. As critical equipment in production, the 489-P5-HI-A20 provides locked rotor protection, overheat protection, etc., to prevent motor damage, ensure production continuity, and meet industry safety requirements (e.g., explosion-proof standards).

Metallurgical Industry

Suitable for equipment like blast furnace blowers and rolling mill drive motors operating under high-current and heavy-load conditions. The module enables real-time monitoring and protection, and integrates with industrial automation systems via Ethernet for remote monitoring and parameter adjustment, improving metallurgical production efficiency and reliability.

Municipal Water Supply and Sewage Treatment

Applied in sewage treatment plant high-voltage water pumps, urban water supply pumping stations, etc. It automatically controls motor start/stop based on water level signals and realizes unattended pumping station monitoring via Ethernet, allowing staff to remotely access equipment parameters and fault information for timely maintenance.

Industrial Automation Production Lines

Protects and controls power equipment like drive motors in various automated production lines. The module's programmable digital I/O functions receive production line control signals for motor logic control, while feeding back motor status to the production line control system to ensure stable operation.

Product Tags: 489-P5-HI-A20
