ALSTOM N895600512D N895600051C ECPU_1 N895600200Q Interface Unit

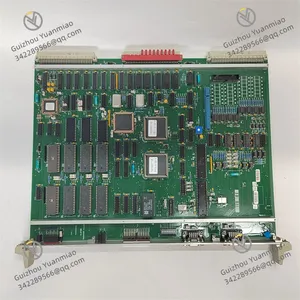

ALSTOM N895600512D N895600051C ECPU_1 N895600200Q Interface Unit thumbnail-1
ALSTOM N895600512D N895600051C ECPU_1 N895600200Q Interface Unit thumbnail-2
ALSTOM N895600512D N895600051C ECPU_1 N895600200Q Interface Unit thumbnail-3
ALSTOM N895600512D N895600051C ECPU_1 N895600200Q Interface Unit photo-1

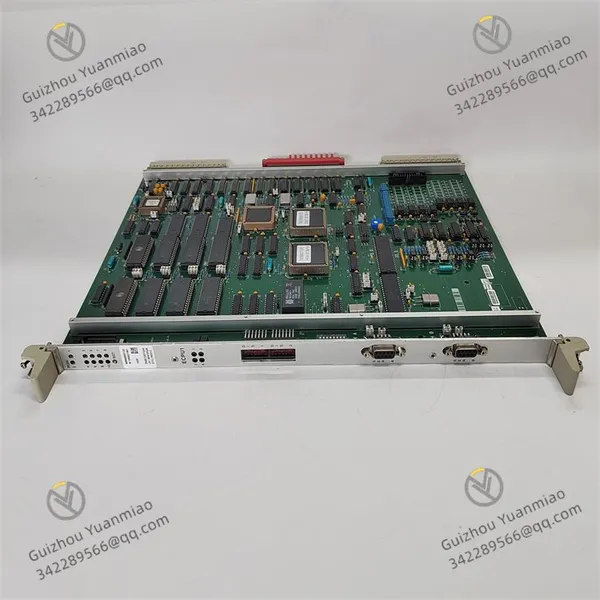

ALSTOM N895600512D N895600051C ECPU_1 N895600200Q Interface Unit photo-2

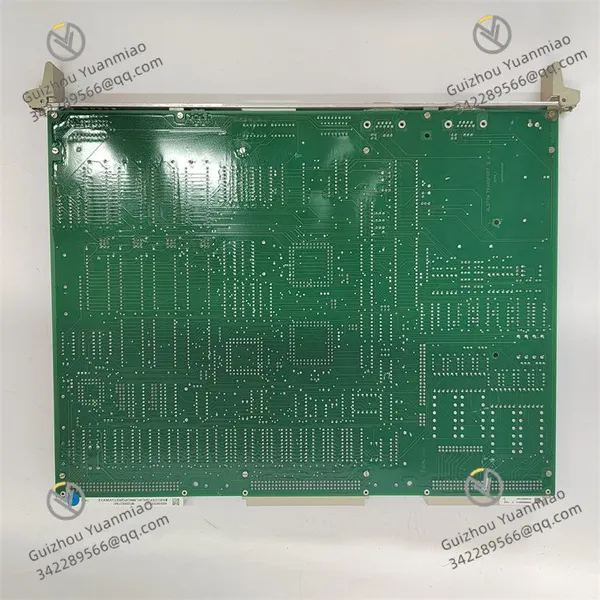

ALSTOM N895600512D N895600051C ECPU_1 N895600200Q Interface Unit photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, Global universal model
Condition:
Other, Global universal model
Task:
Other, Global universal model
Contact Supplier Request Quote Chat Now
Guizhou Yuanmiao Automation Equipment Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material Other, Global universal model
Condition Other, Global universal model
Task Other, Global universal model
Mathematical Model Other, Global universal model
Signal Other, Global universal model
Customized Non-Customized
Structure Other, Global universal model
Operating Temperature -40℃ ~ +70℃
Dimensions 100mm×80mm×60mm (L×W×H)
Input Voltage Range DC 24V ±10% or AC 220V ±15%
ALSTOM N895600512D N895600051C ECPU_1 N895600200Q
Overview
ALSTOM N895600512D and N895600051C are control modules/interface units designed by ALSTOM for industrial automation or rail transit, potentially used for signal processing, data acquisition, or system integration. Such products typically feature high reliability and strong anti-interference capabilities, suitable for harsh industrial environments (e.g., railway, power sectors).
Technical Parameters1. Electrical Parameters
Parameter Specification Description
Input Voltage Range DC 24V ±10% or AC 220V ±15% (vary by model)
Operating Current Typical 0.5-2A (depending on load and channel count)
Logic Threshold HIGH: ≥15V DC, LOW: ≤5V DC (digital signals)
Isolation Voltage Inter-channel/ground isolation ≥500V DC (optoelectric/magnetic isolation)
Response Time ≤10ms (configurable in high-speed mode)

N895600512D N895600051C ECPU_1 N895600200Q (3)

2. Channel and Interface Specifications
Parameter Specification Description
Number of Channels 8/16 digital input/output channels (N895600512D may be an output module, N895600051C may be an input module)
Interface Types Supports RS-485/RS-232, Ethernet (ProFINET/Modbus TCP), USB, etc.
Communication Protocols Compatible with industrial standard protocols (e.g., Modbus RTU, CANopen, EtherCAT)
3. Performance and Environmental Indicators
Parameter Specification Description
Sampling Frequency 1kHz-10kHz (configurable, suitable for real-time data acquisition)
Operating Temperature -40℃ ~ +70℃ (wide-temperature design for outdoor/harsh conditions)
Humidity 5%-95% RH (non-condensing)
Protection Class IP20 (panel-mounted) or IP65 (with protective casing, model-dependent)
4. Mechanical Parameters
Parameter Specification Description
Dimensions Approx. 100mm×80mm×60mm (L×W×H)
Installation Method DIN rail mounting or panel fixing
Weight Approx. 150-300g (depending on channel count and functions)

N895600512D N895600051C ECPU_1 N895600200Q (2)

Working Principle1. Signal Processing Logic

  • Input Module (e.g., N895600051C): Acquires signals from external sensors (e.g., switching quantities, analog quantities) through multiple input channels, converts them to digital signals via optoelectronic isolation, stores them in the input buffer, and the internal processor periodically reads and transmits them to the main control system via communication interfaces.

  • Output Module (e.g., N895600512D): Receives control commands from the main control system, drives actuators (e.g., solenoid valves, motors) through output channels (e.g., relays, transistors) after logical processing; some models support pulse output (e.g., PWM signals).

2. Communication and Control Flow

  • The module communicates with upper computers or PLCs via industrial buses (e.g., Ethernet, RS-485), supporting real-time operating systems (e.g., VxWorks, Linux Real-Time) to ensure real-time command response.

  • The internal multi-core processor or FPGA chip executes control algorithms, handles concurrent transmission of multi-channel data, and feedbacks operating status via LED indicators (power, communication, channel status).

3. Isolation and Anti-Interference Design

  • Adopts optoelectronic or magnetic isolation technology to prevent external high-power interference from affecting internal circuits, while preventing module failures from impacting other system parts, complying with safety standards for railway, power, and other industries.

N895600512D N895600051C ECPU_1 N895600200Q (1)

Common Faults and Solutions
Fault Phenomenon Possible Causes Solutions
Power indicator off 1. Abnormal input power
2. Fuse blown
3. Loose power interface		 1. Check if input voltage is within the rated range
2. Replace fuse (if built-in)
3. Re-plug the power connector
Communication failure (unable to connect) 1. Damaged communication cable
2. Incorrect protocol/baud rate configuration
3. Faulty interface chip		 1. Test cable continuity with a multimeter
2. Confirm protocol parameters (e.g., Modbus slave address, baud rate) via configuration software
3. Contact after-sales service for module replacement
No channel output/input abnormality 1. Faulty external signal source
2. Damaged channel hardware
3. Incorrect configuration parameters (e.g., input filter time)		 1. Test external signals (e.g., dry contact on/off) with a multimeter
2. Test channel status via diagnostic software; replace module if an error is reported
3. Check input/output mapping tables or software configurations
Module overheating or frequent restarts 1. Excessive operating environment temperature
2. Poor heat dissipation
3. Abnormal internal circuit		 1. Ensure the environment temperature is within -40℃~+70℃ and avoid direct sunlight
2. Clean dust from module cooling holes and ensure installation spacing meets requirements
3. Power off and restart; if ineffective, contact technical support
Abnormal LED indicator flashing 1. Hardware failure (e.g., memory error)
2. Incompatible firmware version		 1. Read error codes via diagnostic tools (if supported)
2. Upgrade or re-burn firmware
Product Tags: N895600512D , N895600051C , ECPU_1 N895600200Q
