ALSTOM N895609510K N895609010R E32OUT N895609100P Control Module

ALSTOM N895609510K N895609010R E32OUT N895609100P Control Module photo-1

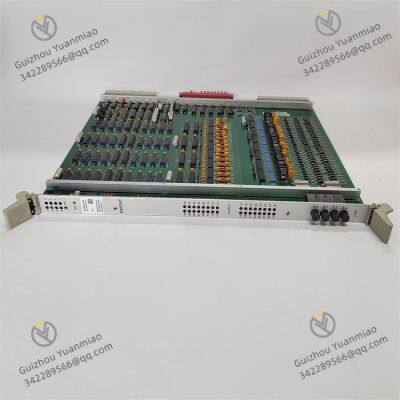

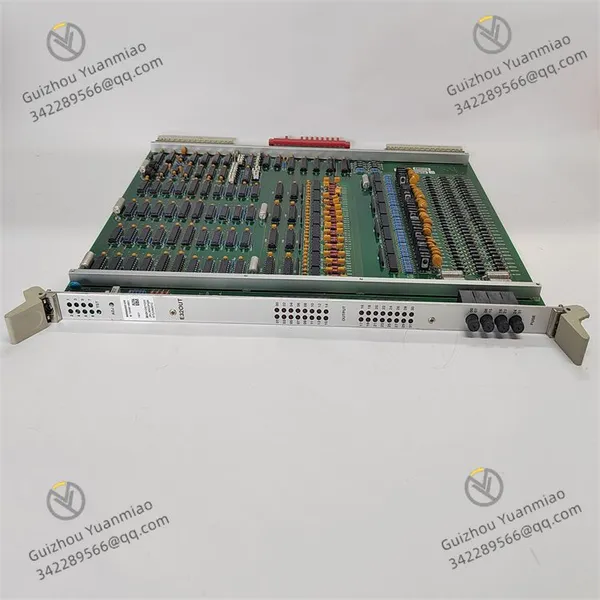

ALSTOM N895609510K N895609010R E32OUT N895609100P Control Module photo-2

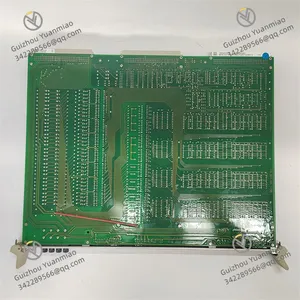

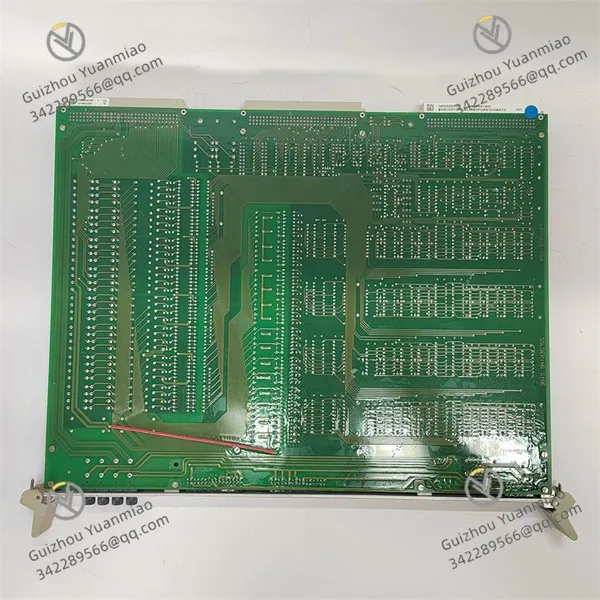

ALSTOM N895609510K N895609010R E32OUT N895609100P Control Module photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, Global universal model
Condition:
Other, Global universal model
Task:
Other, Global universal model
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Material Other, Global universal model
Condition Other, Global universal model
Task Other, Global universal model
Mathematical Model Other, Global universal model
Signal Other, Global universal model
Customized Non-Customized
Structure Other, Global universal model
Input Voltage Range DC 74V ±20%
Operating Temperature -40℃ ~ +70℃
Dimensions 120mm×100mm×70mm (L×W×H)
ALSTOM N895609510K N895609010R E32OUT N895609100P
I. Overview
ALSTOM N895609510K is a high-end control module designed by ALSTOM for rail transit or industrial automation, potentially used in train traction systems, signal control, or power monitoring scenarios. Such products typically feature high reliability, real-time performance, and anti-vibration capabilities, suitable for harsh on-board or ground industrial environments.
II. Technical Parameters1. Electrical and Power Parameters
ParameterN895609510K SpecificationsN895609010R Specifications
Input Voltage RangeDC 74V ±20% (vehicle power adaption)DC 110V ±15% (vehicle/industrial power adaption)
Power ConsumptionTypical 15W (no load)/30W (full load)Typical 20W (no load)/40W (full load)
Isolation VoltagePower-signal isolation ≥1000V DCInter-channel isolation ≥800V DC

N895609510K N895609010R E32OUT N895609100P (3)

2. Communication and Interface Specifications
ParameterN895609510K SpecificationsN895609010R Specifications
Communication Interfaces2× Ethernet (10/100Mbps, supports EtherNet/IP), 1× CANopen1× ProFINET (IRT real-time), 2× RS-485 (Modbus RTU)
Protocol SupportMVB (Multifunction Vehicle Bus), TCP/IPWTB (Wired Train Bus), Modbus TCP
Data Transmission RateUp to 100Mbps (Ethernet)Up to 12Mbps (CANopen)
3. Channel and Performance Indicators
ParameterN895609510K SpecificationsN895609010R Specifications
Digital I/O Channels16 digital inputs (opto-isolated)8 digital outputs (relay/transistor)
Analog Input Channels4 analog inputs (0-10V/4-20mA, 12-bit accuracy)2 analog outputs (0-5V, 10-bit accuracy)
Sampling Frequency10kHz (configurable)5kHz (real-time mode)
4. Environmental and Mechanical Parameters
ParameterCommon Specifications
Operating Temperature-40℃ ~ +70℃ (wide-temperature design)
Humidity5%~95% RH (non-condensing)
Protection ClassIP54 (housing protection)
Installation MethodDIN rail mounting (supports vertical/horizontal installation)
DimensionsApprox. 120mm×100mm×70mm (L×W×H)

N895609510K N895609010R E32OUT N895609100P (2)

III. Working PrincipleCore Control Logic
  • N895609510K (Input Acquisition Module): Acquires sensor signals (e.g., vehicle speed, voltage, switch status) via opto-isolated digital/analog channels, converts them through ADC, stores in cache, and transmits real-time to the train main control system via MVB or Ethernet. Supports periodic sampling and event-triggered modes.

  • N895609010R (Output Control Module): Receives control commands (e.g., traction/braking signals) from the main control system, drives actuators via relay/transistor outputs. Some channels support PWM modulation (e.g., motor speed control) and verify output status through feedback circuits.

Communication and Protocol Processing
  • The module integrates a dedicated communication processor (e.g., ARM or DSP), supporting parallel processing of multiple protocol stacks (e.g., simultaneous operation of MVB and EtherNet/IP). Hardware accelerators enable fast parsing and encapsulation of data frames to ensure real-time performance (response delay ≤1ms).

  • Supports master-slave mode switching, acting as a slave node (e.g., receiving PLC commands) or master node (e.g., managing sub-modules) in the train network.

Anti-Interference and Safety Design
  • Adopts multi-layer circuit board isolation design. The power section integrates EMI filter circuits to prevent vehicle power grid fluctuations. Signal channels block ground loop interference via magnetic isolation technology.

  • Built-in watchdog timer automatically restarts upon detecting software anomalies to ensure system safety. Supports hierarchical fault reporting (e.g., error types indicated by LED flashing codes).

N895609510K N895609010R E32OUT N895609100P (1)

IV. Common Faults and Solutions
Fault PhenomenonPossible CausesSolutions
Power indicator off1. Reversed input polarity or voltage anomaly
2. Internal power chip burnout
1. Use a multimeter to check input voltage and polarity
2. Replace module or repair power circuit
Communication failure (network light off)1. Loose/damaged network cable
2. IP address conflict
3. Physical layer chip failure
1. Replace cable or interface connector
2. Reset IP via configuration tool
3. Contact after-sales for module replacement
No digital input response1. Faulty external signal source (e.g., sensor disconnection)
2. Blown input channel fuse
1. Use an oscilloscope to check input signal waveform
2. Open module cover and replace blown fuse (if replaceable)
Abnormal output channel overheating1. Load current exceeds rating
2. Relay contact adhesion or transistor short circuit
1. Check load power to ensure it does not exceed channel rating
2. Test channels via diagnostic software and replace faulty module
Frequent module restarts1. Ambient temperature exceeds limit
2. Vibration-induced internal component looseness
3. Abnormal firmware version
1. Add cooling devices or relocate to a ventilated environment
2. Tighten installation screws and inspect circuit board soldering points
3. Upgrade to the latest firmware via serial port
Abnormal LED flashing (e.g., 3 quick flashes)Hardware error (e.g., memory check failure)1. Read error codes via specialized software (e.g., JTAG debugging)
2. Return to factory for repair if memory failure is confirmed
