75kW Mobile Trailer Generator Powered by Weifang Ricardo R6105ZD Diesel Engine With Sundproof Canopy

75kW Mobile Trailer Generator Powered by Weifang Ricardo R6105ZD Diesel Engine With Sundproof Canopy photo-1

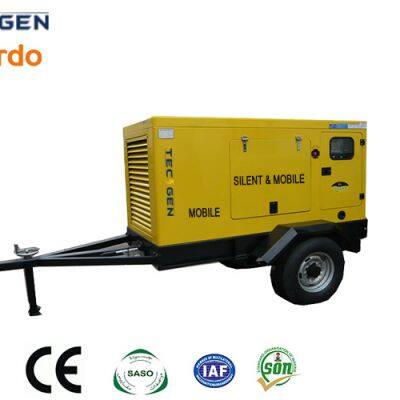

75kW Mobile Trailer Generator Powered by Weifang Ricardo R6105ZD Diesel Engine With Sundproof Canopy photo-2

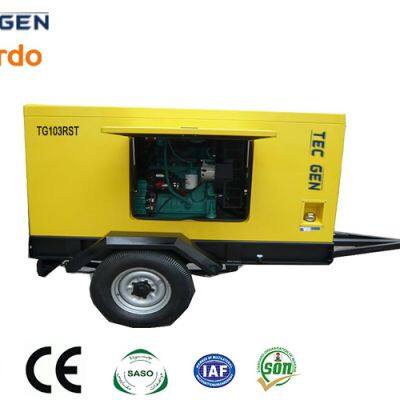

75kW Mobile Trailer Generator Powered by Weifang Ricardo R6105ZD Diesel Engine With Sundproof Canopy photo-3
US$ 4500 - 9000 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Self-Starting Diesel Generator
Warranty:
1500hours
Stroke:
Four Stroke
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou
Delivery Detail:
15 days
Type Self-Starting Diesel Generator
Warranty 1500hours
Stroke Four Stroke
Usage Common Units, Standby Unit, Emergency Crew
Speed Speed
Cooling Method Water Cooling
Installation Method Fixed
Excitation Mode AC Rotating Exciter
Conditions of Use Land Use
Landuse Type of Unit Low Noise Automation Type
Output Type AC Three Phase
Genset Model TG103RST
Frequency 50Hz
Prime Power 94kVA / 75kW
Max Power 103kVA / 83kW
Engine model R6105ZD
Alternator model TGI274S75
Transport Package FCL
Trademark TECGEN
Origin CHINA

75kW Mobile Trailer Generator Powered by Weifang Ricardo R6105ZD Diesel Engine with Sundproof Canopy


Product Description:

Introducing the Ricardo Generator's flagship model – the 75kW Mobile Trailer Generator, the ultimate solution for all your portable power needs. Whether you're in the construction industry, managing an outdoor event, or require emergency backup power, this robust generator delivers uninterrupted power wherever you go.

Standard Features:

  • Powerful Engine: Equipped with a robust diesel engine, the 75kW Mobile Trailer      Generator boasts a maximum output of 75 kilowatts, ensuring a steady and      reliable power supply.

  • Mobile Trailer Design: Mounted on a durable steel trailer frame, it's easy to transport      and maneuver, even on uneven terrain, making it the perfect choice for      remote locations.

  • Automatic Voltage      Regulation: Maintains stable voltage output,      protecting your appliances from damage caused by voltage fluctuations.

  • Long Runtime: With a large fuel tank, the generator can run continuously for      extended periods, minimizing refueling intervals.

Key Features:

  • Silent Operation: Equipped with advanced noise reduction technology, the 75kW Mobile      Trailer Generator operates at a whisper-quiet level, ideal for      noise-sensitive environments.

  • Remote Control Capability: Comes with a convenient remote control, allowing you to start,      stop, and monitor the generator's status from a safe distance.

  • Advanced Protection      Systems: Includes overload, low oil pressure,      and high-temperature shutdown protection, ensuring the safety of both the      generator and your equipment.

  • Easy Maintenance: Designed for hassle-free maintenance, with easy access to all      serviceable parts and a comprehensive user manual.

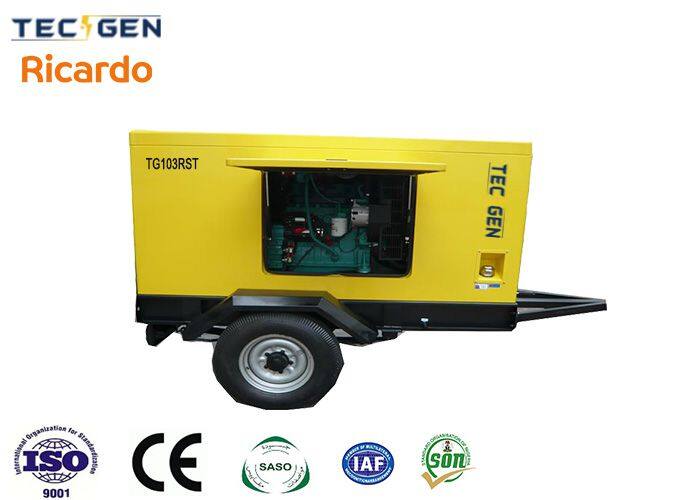

Ricardo 75kW Mobile Trailer Generator.jpg


75kW Mobile Trailer Generator Details

Genset

Type

Silent & Trailer

Model

TG103RST

Frequency

50Hz

Speed

1500rpm

Voltage

220/400 V

Phase

Three   Phase

Prime Power

94kVA / 75kW

Standby   Power

103kVA   / 83kW

Dimensions

L2850 x W1550 x H2000mm

Weight

2100kgs

Fuel Capacity

8 Hours Running Capacity

General Features

Engine

Ricardo

Radiator

50degrees max, fans driven by belt with safety   guard

Alternator

Tecgen

Charger

24V   trickle charger

Controller

MEBAY

Governor

Mechanical or electronic

Circuit Breaker

DELIXI   / CHNT / ABB

Canopy

Soundproof   made by galvanized steel plate

ATS

AISIKAI/ABB

Filters

Dry type air filter, fuel filter, oil filter

Fuel Tank

8hours   / 12hours / 24hours, or as required

Absorber

High   strength rubber

Start System

12/24V electric start

Muffler

Ripple flex exhaust pipe, exhaust siphon, flange

Battery

Varta   Maintenance free type

Manuals

Complete   with engine, alternator and genset

Engine Technical Data

Brand

Weifang   Ricardo

Engine Model

R6105ZD

Rated   Power

83kW

Cylinder

6 Cylinder

Bore*Stroke

105*125mm

Displacement

6.49

Aspiration

Turbocharged

Speed

1500rpm

Cooling   System

Water   Cooled

Fuel Consumption at 100% Load

21.4

Speed   Governor

MECH

Start System

12 / 24V Electric Starter

Option Engine Brands

Cummins, Deutz, Weifang Ricardo, Perkins, Yangdong, Quanchai,   FAWDE, SDEC, Weichai, Yuchai, VMAN, JX ISUZU, YANMAR, Beinei Aircooled, Caterpillar,   MITSUBISHI., ETC

Alternator Technical Data

Brand

Tecgen

Alternator   Model

TGI274S75

Rated Power

75kW

Speed

1500rpm

Frequency

50Hz

Phase

Three   Phase, Four Wire

Power Factor

0.8

Exciter   type

Single   bearing, brushless, Self-excited

Voltage adjust range

≥5%

Insulation   Grade

H

Protection Grade

IP23

Option Alternator Brands

Stamford, Leory Somer, Meccalte, Marathon, Tecgen

Controller System

Brand

MEBAY

Model

DC52D

Functions

Control with AMF module

Static   with auto. battery charger

Emergency stop push button

ATS   Connection

Alarms

Over and Under Speed

Low   and High Battery Voltage

Start and Stop Failure

Charge   Fail

Over Current

Under   / Over Generator Voltage

Low Oil Pressure

Emergency   Stop

High Engine Temperature

Over   Load

OPTIONAL EQUIPMENTS

Daily   Fuel Tank

Parallel   Panel

Remote   Control Panel

Soundproof   Type

Engine Heater

Permanent Magnet

Auto. Transfer Switch

Trailer Type

Water   Heater

Generator   (PMG)

Switch   Box

Spare   Parts



Usage:
Perfect for a wide range of applications, including construction sites, mining operations, outdoor events, remote communities, and as a backup power source for hospitals, schools, and critical infrastructure. Its versatility ensures you're never left in the dark.

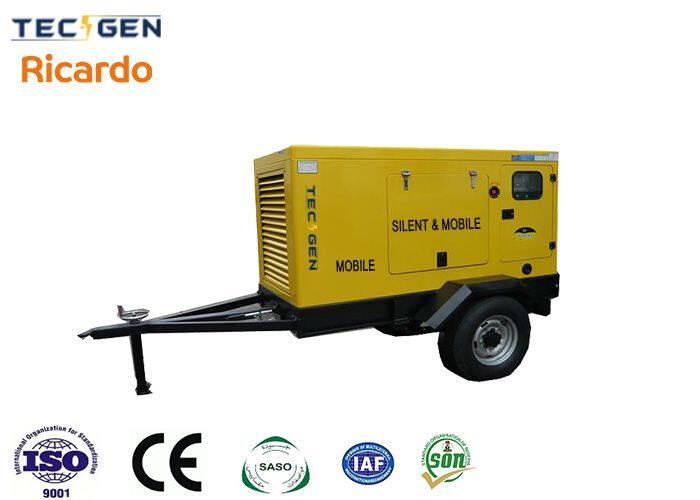

75kW Mobile Trailer Ricardo Generator.jpg


Advantages:

  • Instant Power: Provides instant power, allowing you to get back to work or keep      the party going without delay.

  • Durability: Constructed with high-quality materials, the Ricardo Generator is      built to last, even in harsh conditions.

  • Eco-Friendly: Advanced combustion technology reduces emissions, making it an      environmentally responsible choice.

  • Cost-Effective: Long service life and low maintenance costs ensure a great return      on investment.

Options:

  • Customization: Available in various colors and can be customized with additional      features like extra outlets, larger fuel tanks, or specialized enclosures.

  • Accessories: Includes a comprehensive set of accessories, such as wheel chocks,      battery charger, and tool kit, for seamless operation and maintenance.

FAQs:
Q: How long can the 75kW Mobile Trailer Generator run on a full tank?
A: Depending on the load, it can run for up to 12 hours on a full tank, ensuring extended operation without the need for frequent refueling.

Q: Is it easy to transport?
A: Absolutely! With its mobile trailer design and roadworthy tires, it's designed for easy towing and maneuverability, even over rough terrain.

Q: Does it come with a warranty?
A: Yes, the Ricardo Generator 75kW Mobile Trailer Generator comes with a comprehensive warranty, covering manufacturing defects and ensuring your peace of mind.

Experience the unbeatable performance and reliability of the Ricardo Generator 75kW Mobile Trailer Generator – the ultimate power solution for all your portable energy needs. Order now and unleash the power of uninterrupted energy!
