110kVA Mobile Trailer Generator Powered by Weifang Ricardo R6105ZLD Diesel Engine With Sundproof Canopy

110kVA Mobile Trailer Generator Powered by Weifang Ricardo R6105ZLD Diesel Engine With Sundproof Canopy photo-1

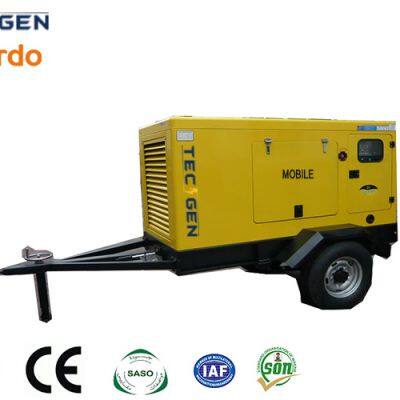

110kVA Mobile Trailer Generator Powered by Weifang Ricardo R6105ZLD Diesel Engine With Sundproof Canopy photo-2

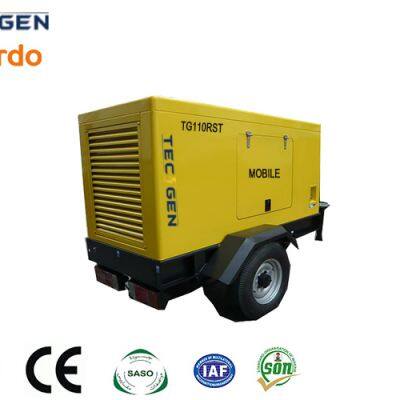

110kVA Mobile Trailer Generator Powered by Weifang Ricardo R6105ZLD Diesel Engine With Sundproof Canopy photo-3

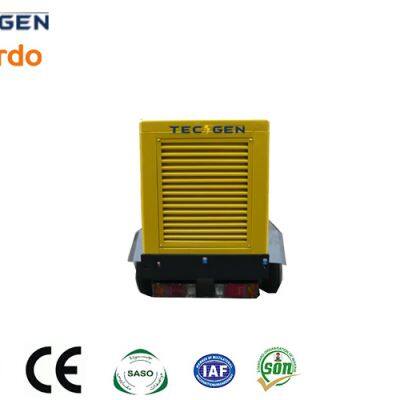

110kVA Mobile Trailer Generator Powered by Weifang Ricardo R6105ZLD Diesel Engine With Sundproof Canopy photo-4
US$ 4500 - 10000 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Self-Starting Diesel Generator
Warranty:
1500hours
Stroke:
Four Stroke
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou
Delivery Detail:
15 days
Type Self-Starting Diesel Generator
Warranty 1500hours
Stroke Four Stroke
Usage Common Units, Standby Unit, Emergency Crew
Speed Speed
Cooling Method Water Cooling
Installation Method Fixed
Excitation Mode AC Rotating Exciter
Conditions of Use Land Use
Landuse Type of Unit Low Noise Automation Type
Output Type AC Three Phase
Genset Model TG110RST
Frequency 50Hz
Prime Power 100kVA / 80kW
Max Power 110kVA / 88kW
Engine model R6105ZLD
Engine Output 100kW
Transport Package FCL
Trademark TECGEN
Origin CHINA

110kVA Mobile Trailer Generator Powered by Weifang Ricardo R6105ZLD Diesel Engine with Sundproof Canopy


Product Description: 110kVA Mobile Trailer Generator by Ricardo Genset

Standard Features:
Introducing the ultimate in portable power solutions, the 110kVA Mobile Trailer Generator from Ricardo Genset. Engineered for reliability and efficiency, this generator boasts a robust diesel engine capable of delivering a continuous output of 110 kilovolt-amperes, making it ideal for a wide range of applications. Standard features include an automatic voltage regulator ensuring stable power output, a long-lasting fuel tank for extended runtime, and a user-friendly control panel with intuitive display for easy monitoring and operation. The trailer-mounted design ensures seamless transportation and quick deployment, making it the go-to choice for emergency power, construction sites, events, and more.

Key Features:

  • Powerful Performance: The 110kVA Mobile Generator harnesses the power of a      high-performance diesel engine, delivering clean and reliable energy to      power even the most demanding equipment.

  • Mobility & Durability: Mounted on a sturdy trailer with heavy-duty wheels and suspension,      it's designed for easy towing and withstands rugged terrain, ensuring your      power source stays with you wherever you go.

  • Intelligent Control: Equipped with an advanced control system, it automatically adjusts      to maintain optimal performance and alerts users of any potential issues,      minimizing downtime.

  • Low Noise & Emission: Incorporating advanced soundproofing materials and emission control      technology, the Ricardo Genset operates quietly and environmentally      friendly.

  • Quick Setup &      Maintenance: With a streamlined design for easy      access to components, routine maintenance and setup are hassle-free,      keeping your generator running smoothly.

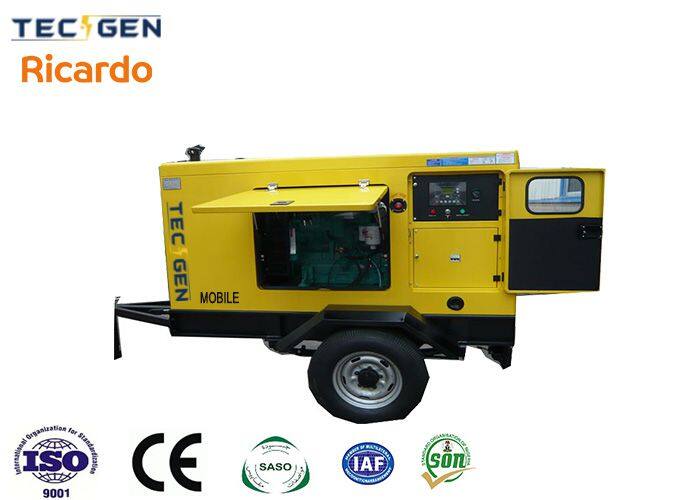

110kVA Mobile Trailer Generator.jpg

110kVA Mobile Trailer Generator Details

Genset

Type

Silent & Trailer

Model

TG110RST

Frequency

50Hz

Speed

1500rpm

Voltage

240/415 V

Phase

Three   Phase

Prime Power

100kVA / 80kW

Standby   Power

110kVA   / 88kW

Dimensions

L3000 x W1650 x H2050mm

Weight

2300kgs

Fuel Capacity

8 Hours Running Capacity

General Features

Engine

Ricardo

Radiator

50degrees max, fans driven by belt with safety   guard

Alternator

Tecgen

Charger

24V   trickle charger

Controller

MEBAY

Governor

Mechanical or electronic

Circuit Breaker

DELIXI   / CHNT / ABB

Canopy

Soundproof   made by galvanized steel plate

ATS

AISIKAI/ABB

Filters

Dry type air filter, fuel filter, oil filter

Fuel Tank

8hours   / 12hours / 24hours, or as required

Absorber

High   strength rubber

Start System

12/24V electric start

Muffler

Ripple flex exhaust pipe, exhaust siphon, flange

Battery

Varta   Maintenance free type

Manuals

Complete   with engine, alternator and genset

Engine Technical Data

Brand

Weifang   Ricardo

Engine Model

R6105ZLD

Rated   Power

100kW

Cylinder

6 Cylinder

Bore*Stroke

105*125mm

Displacement

6.49

Aspiration

Turbocharged   & Intercooled

Speed

1500rpm

Cooling   System

Water   Cooled

Fuel Consumption at 100% Load

22.9

Speed   Governor

MECH

Start System

12 / 24V Electric Starter

Option Engine Brands

Cummins, Deutz, Weifang Ricardo, Perkins, Yangdong, Quanchai,   FAWDE, SDEC, Weichai, Yuchai, VMAN, JX ISUZU, YANMAR, Beinei Aircooled, Caterpillar,   MITSUBISHI., ETC

Alternator Technical Data

Brand

Tecgen

Alternator   Model

TGI274S80

Rated Power

80kW

Speed

1500rpm

Frequency

50Hz

Phase

Three   Phase, Four Wire

Power Factor

0.8

Exciter   type

Single   bearing, brushless, Self-excited

Voltage adjust range

≥5%

Insulation   Grade

H

Protection Grade

IP23

Option Alternator Brands

Stamford, Leory Somer, Meccalte, Marathon, Tecgen

Controller System

Brand

Mebay

Model

DC52D

Functions

Control with AMF module

Static   with auto. battery charger

Emergency stop push button

ATS   Connection

Alarms

Over and Under Speed

Low   and High Battery Voltage

Start and Stop Failure

Charge   Fail

Over Current

Under   / Over Generator Voltage

Low Oil Pressure

Emergency   Stop

High Engine Temperature

Over   Load

OPTIONAL EQUIPMENTS

Daily   Fuel Tank

Parallel   Panel

Remote   Control Panel

Soundproof   Type

Engine Heater

Permanent Magnet

Auto. Transfer Switch

Trailer Type

Water   Heater

Generator   (PMG)

Switch   Box

Spare   Parts



Usage:
Perfect for a multitude of industries, the 110kVA Mobile Trailer Generator by Ricardo Genset is an essential tool for construction companies, event organizers, mining operations, hospitals, and any other sector requiring reliable backup or primary power sources. Whether it's powering heavy machinery, lighting up a concert venue, or keeping critical systems running during emergencies, this generator delivers.

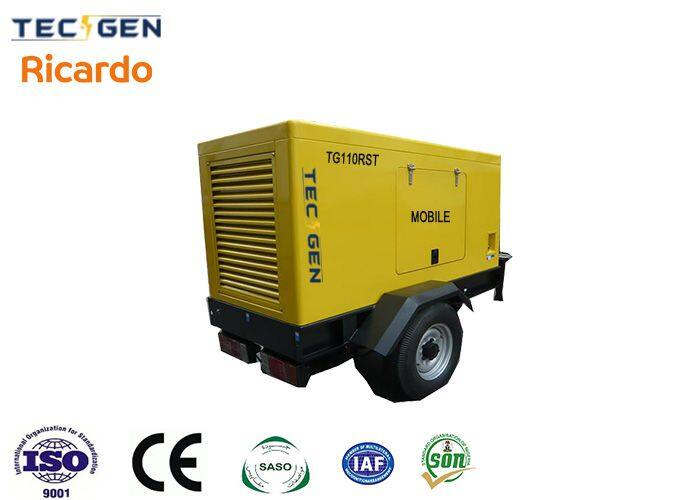

Heavy Duty 110kVA Mobile Trailer Generator.jpg


Advantages:

  • Versatility: Its high capacity and mobile design make it suitable for a vast      array of applications, ensuring you're always prepared.

  • Cost-Effectiveness: Long runtime and fuel efficiency translate into lower operational      costs over time.

  • Peace of Mind: With automatic protection features and 24/7 customer support, you      can trust Ricardo Genset to keep your power needs covered.

  • Eco-Friendly: Reduced emissions and low noise levels contribute to a greener,      more sustainable operation.

Options:

  • Custom Paint Job: Personalize your generator with a custom color scheme to match your      brand or fleet.

  • Additional Outlets: Upgrade to include more power outlets or specialized sockets for      specific equipment.

  • Remote Monitoring System: Install a remote monitoring system for real-time tracking and      control, enhancing operational efficiency.

  • Extended Warranty: Protect your investment with an extended warranty package for added      peace of mind.

FAQs:
Q: How long can the 110kVA Mobile Trailer Generator run on a full tank?
A: Depending on the load, it can run for up to 12 hours on a full tank, ensuring continuous power supply.

Q: Is it easy to maintain?
A: Absolutely! The generator is designed for easy access to all maintenance points, and our comprehensive manual provides step-by-step instructions.

Q: Can I customize the generator to my specific needs?
A: Yes, we offer a range of customization options, including paint jobs, additional outlets, and remote monitoring systems, to suit your unique requirements.

Q: How does it handle rough terrain?
A: The heavy-duty trailer and suspension system are specifically engineered to navigate uneven and challenging terrains, ensuring stable transportation and deployment.

With the 110kVA Mobile Trailer Generator by Ricardo Genset, you're investing in a powerful, reliable, and versatile power solution that will keep your operations running smoothly, no matter the challenge. Experience the difference of Ricardo Genset today!
