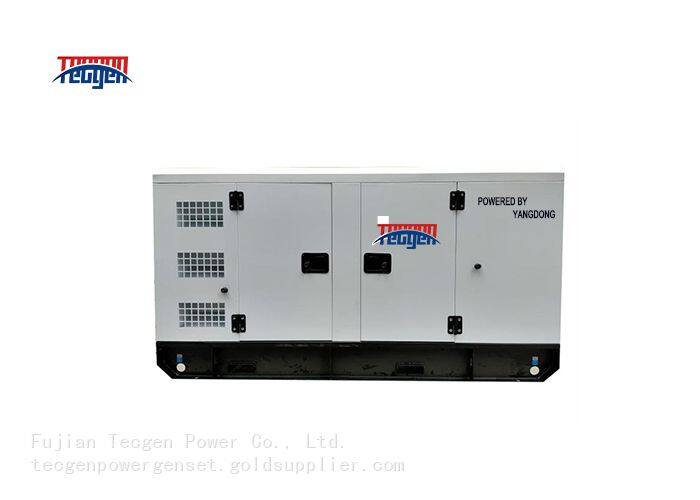

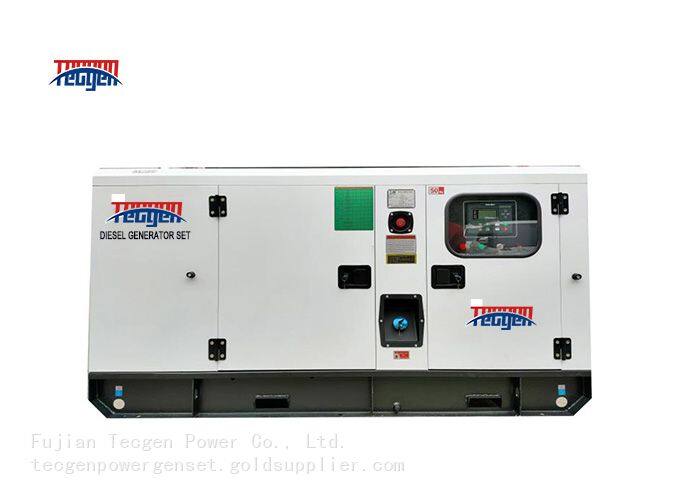

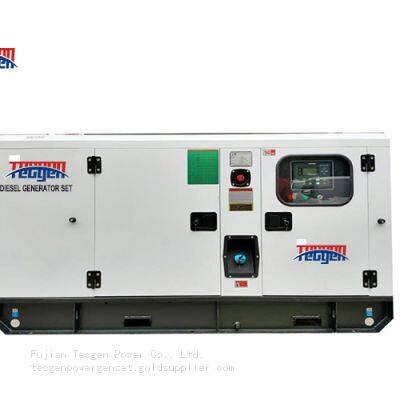

60Hz Diesel Power Genset 20kW Yangdong Diesel Generator With Soundproof Canopy for Hotel Power

60Hz Diesel Power Genset 20kW Yangdong Diesel Generator With Soundproof Canopy for Hotel Power photo-1
60Hz Diesel Power Genset 20kW Yangdong Diesel Generator With Soundproof Canopy for Hotel Power photo-2
60Hz Diesel Power Genset 20kW Yangdong Diesel Generator With Soundproof Canopy for Hotel Power photo-3
US$ 1700 - 3100 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Self-Starting Diesel Generator
Warranty:
1500hours
Stroke:
Four Stroke
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou
Delivery Detail:
20 days
Type Self-Starting Diesel Generator
Warranty 1500hours
Stroke Four Stroke
Usage Common Units, Emergency Crew
Speed Speed
Cooling Method Water Cooling
Installation Method Fixed
Excitation Mode AC Rotating Exciter
Conditions of Use Land Use
Landuse Type of Unit Low Noise Automation Type
Output Type AC Three Phase
Model TG28YDSD6
Voltage 440V//415V/400V/380V/230V/220V/110V
Frequency 60Hz
Prime power 20kW / 25kVA
Max power 22kW / 28kVA
Engine Brand YANGDONG
Engine model YSD490D
Alternator Model TGI184S20
Controller Smartgen HGM6110N
Fuel Tank Capacity 10 running hours
Transport Package FCL
Trademark TECGEN
Origin CHINA

60Hz Diesel Power Genset 20kW Yangdong Diesel Generator with Soundproof Canopy for Hotel Power


Product Description for 60Hz Diesel Power Genset

Key Features:

  1. Powerful Chinese Diesel      Engine: Equipped with a reliable Yangdong      diesel engine, renowned for its powerful performance and durability.

  2. Efficient Alternator: Features a high-quality alternator that ensures stable and      efficient power output for continuous operation.

  3. Smartgen Controller: Integrated with a Smartgen controller for automatic management      and protection, ensuring smooth and safe operation.

  4. Silent/Super Silent      Design: Minimizes noise levels, providing a      quieter operational environment.

Standard Features:

  1. Forced Water Cooling      System: Ensures optimal engine temperature      for enhanced performance and durability.

  2. Overload & Short      Circuit Protection: Prevents      damage to the generator set, safeguarding against potential hazards.

  3. Easy Access Panels: Designed for convenient maintenance and repairs, reducing      downtime and enhancing usability.



60Hz   Diesel Power Genset Technical Datasheets

Genset model

TG28YDSD6

Genset Type

Silent / Super Silent

Rated Voltage

440V//415V/400V/380V/230V/220V/110V

Frequency

60Hz

Speed

1800rpm

Output Type

AC Three Phase

P.F(COS)

P.F. 0.8

Prime Output Current

69.7A

Prime Power

20kW / 25kVA

Standby Power

22kW / 28kVA

Diesel Engine

Brand

Yangdong

Model

YSD490D

AC Alternator

Brand

Tecgen Power

Model

TGI184S20

Genset Controller

Brand

Smartgen

Model

HGM6110N

Genset Weight

880kgs

Genset Dimensions

L2100 * W 900 * 1000

Fuel Tank Capacity

10 running hours

Yangdong   Diesel Engine Data

Brand

Yangdong

Engine Model

YSD490D

Number of Cylinders

4 Cylinder in Line

Cycle

4-troke

Aspiration

Natural Aspiration

Displacement

2.54L

Compression ratio

18:1

Bore×Stroke

90*100mm

Speed

1800rpm

Prime Power

25kW

Standby Power

28kW

Speed Governor

MECH or Electrical

Cooling System

Forced water   cooling cycle

Starting system

DC Motor

Fuel Consumption at 100% Load

247.5g/kwh@1800rpm

AC   Alternator Data

Brand

Tecgen Power

Model

TGI184S20

Frequency/speed

60HZ/1800RPM

Rate Output

20kW

No. of Phase

3 Phase, 4 Wire

Exciter type

Single bearing, Brushless, Self-excited   with AVR

Power factor

0.8

Insulation Grade

H

Protection Grade

IP23

Working Condition

Below 1000m

Bearing

Single

Coupling

Direct

Voltage adjust range

≥5%

Voltage regulation NL-FL

≤±1%

Genset   Controller System

Controller System

Brand

Smargen

Model

HGM6110N

Functions

Auto Mains (Utility) Failure

Static with auto. battery charger

Emergency stop push button

ATS & RS485 Connection

CAN Functions

Diesel   Generator Set Output ranges & Brand Options

Prime Power (kW)

Diesel Engine

AC Alternator

Controller

Type

8kW ~ 2400kW

Cummins / Perkins / Deutz / Weichai /   Yuchai / SDEC / Mitsubishi / Doosan / Wudong / Baudouin

Leroy Somer /

Stamford /

Mecc Alte /

Tecgen



DEIF

Open/Silent

7kW ~ 320kW

Yangdong / FAWDE / Quanchai / YTO

Tecgen

Smartgen

11kW ~ 104kW

Beinei Aircooled

Tecgen


10kW ~ 300kW

Weifang Ricardo

Stamford

DEEPSEA

6.8kW ~ 2000kW

Caterpillar

Caterpillar

Caterpillar

6.8kW ~ 2000kW

FG Wilson

FG Wilson

FG Wilson

17kW ~ 30kW

Isuzu

Mecc Alte

ComAp

210kW ~ 818kW

VMAN

Tecgen

Tecegn

6kW ~ 2000kW

Chinese Engines

Smartgen



Usage:
Ideal for a range of applications, including power backup, emergency power supply, and off-grid power solutions across various industries and settings.


Options:

  1. Multiple Engine Brands: Choose from a variety of engines to suit your specific power      requirements and budget.

  2. Customization: Customize the generator set according to your voltage,      frequency, and output power needs for a perfect fit.

Warranty:
Offered for 18 months or 1500 hours, whichever comes first, providing peace of mind and ensuring long-term reliability.

FAQ:

  • Q: What is the warranty      period for the generator set?

    A: The warranty period is 18 months or 1500 hours, depending on which      comes first.

  • Q: Can the generator set      be customized?

    A: Yes, we offer customization options to meet your specific power      requirements.

With its robust Chinese diesel engine and high-quality alternator, our 60Hz diesel power genset is the ultimate choice for reliable and efficient power supply. Contact us today for more information and ordering details!
