NI CFP-AO-210 8-Channel Voltage Output Module

NI CFP-AO-210 8-Channel Voltage Output Module thumbnail-1
NI CFP-AO-210 8-Channel Voltage Output Module thumbnail-2
NI CFP-AO-210 8-Channel Voltage Output Module thumbnail-3
NI CFP-AO-210 8-Channel Voltage Output Module thumbnail-4

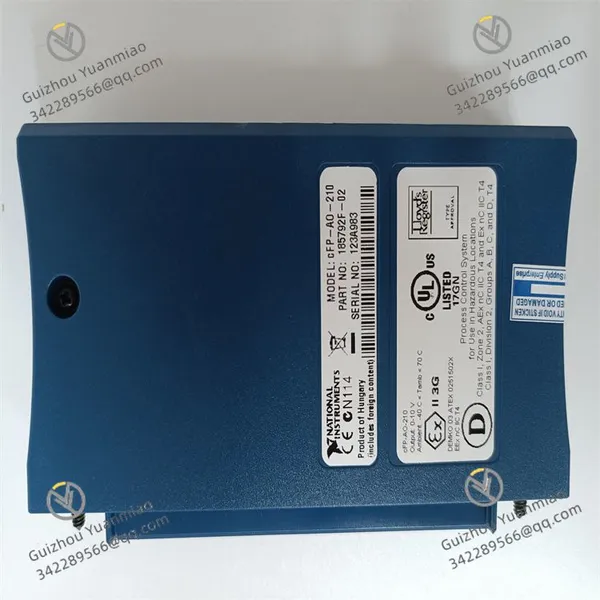

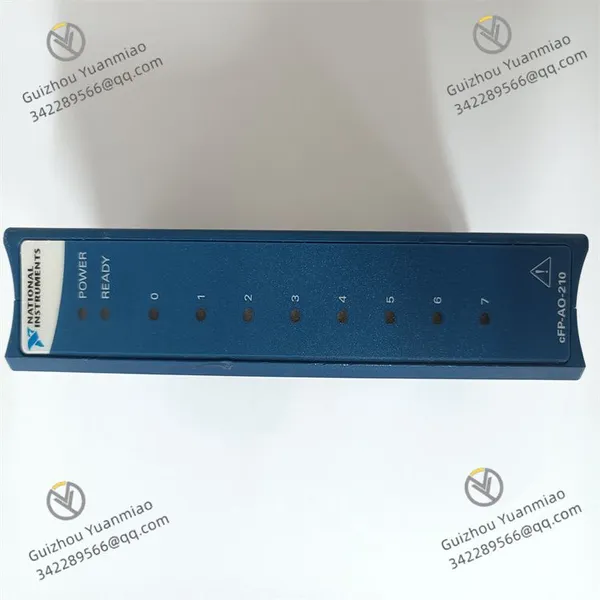

NI CFP-AO-210 8-Channel Voltage Output Module photo-1

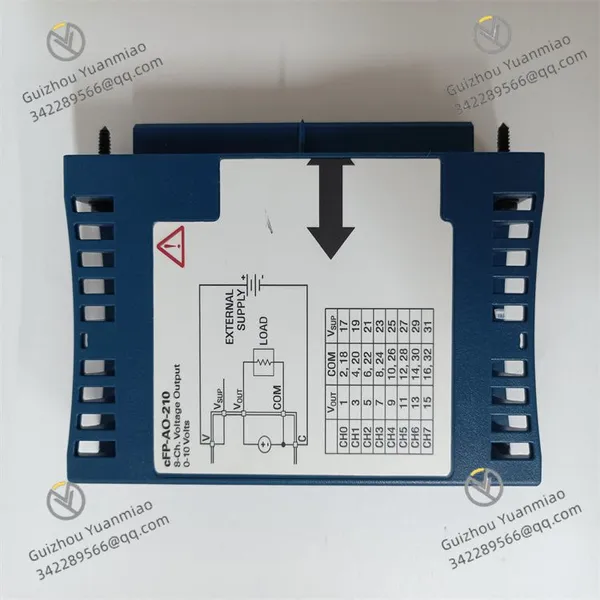

NI CFP-AO-210 8-Channel Voltage Output Module photo-2

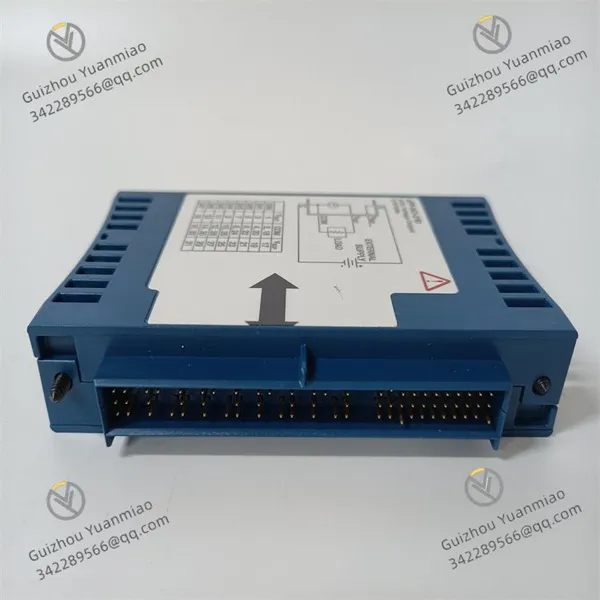

NI CFP-AO-210 8-Channel Voltage Output Module photo-3
NI CFP-AO-210 8-Channel Voltage Output Module photo-4
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, Global universal model
Condition:
Other, Global universal model
Task:
Other, Global universal model
Contact Supplier Request Quote Chat Now
Guizhou Yuanmiao Automation Equipment Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material Other, Global universal model
Condition Other, Global universal model
Task Other, Global universal model
Mathematical Model Other, Global universal model
Signal Other, Global universal model
Customized Non-Customized
Structure Other, Global universal model
Output Ranges ±10V, ±5V, ±1V, 0−10V, 0−5V, 0−1V
Safe Operating Voltage 250V
Operating Temperature Range −40°C to +70°C
NI CFP-AO-210Functional Features
  • Analog Signal Output
    Generates high-precision analog voltage signals for driving actuators, testing equipment, or simulating sensor inputs. Suitable for industrial control, automated testing, scientific research, and experimental scenarios.
  • Multi-Channel Output Capability
    Equipped with 4 analog voltage output channels, supporting simultaneous output of multiple independent signals to meet collaborative control needs of multiple devices.
  • Configurable Output Ranges
    Supports multiple software-configurable output ranges, including:
    ±10V, ±5V, ±1V, 0−10V, 0−5V, 0−1V
    Compatible with input ranges of different load types, offering strong adaptability.
  • High Resolution and Accuracy
    Adopts 16-bit resolution with output voltage accuracy up to ±0.01% of full scale, ensuring stable and accurate signal output.
  • Isolation Characteristics
    Features 2500Vrms input-output isolation to prevent electrical interference and device damage, enhancing system safety for complex electrical environments.
  • Plug-and-Play & Hot Swap
    Enables quick installation and insertion/removal during system operation without powering off, improving maintenance convenience.

CFP-AO-210 (3)

CFP-AO-210 (4)

Technical Parameters
Parameter Type Specific Index
Number of Output Channels 4 analog voltage outputs
Resolution 16 bits
Output Ranges ±10V, ±5V, ±1V, 0−10V, 0−5V, 0−1V
Output Accuracy ±0.01% (full scale)
Isolation Voltage 2500Vrms (input-output isolation)
Safe Operating Voltage 250V
Update Rate Up to 1 MS/s (per channel)
Operating Temperature Range −40°C to +70°C
Application Areas
  • Industrial Automation Control
    Drives actuators like servo motors and control valves to achieve precise adjustment of production line speed, pressure, and flow.
  • Testing and Measurement Systems
    Simulates sensor signal sources for equipment calibration, fault simulation, or performance testing (e.g., power supply and amplifier testing).
  • Robotics and Mechanical Control
    Outputs control signals to joint drivers for precise control of robot movement trajectories.
  • Scientific Research and Laboratory Scenarios
    Generates waveform signals (e.g., sine waves, square waves) for physics and electronics experiments, or drives precision instruments (e.g., spectrometers, oscilloscopes).

CFP-AO-210 (1)

CFP-AO-210 (2)

Common Faults and Solutions
  • Abnormal Output Signal (e.g., voltage deviation, fluctuation)

  • Possible causes: Incorrect output range configuration, overload, poor cable contact, or ground interference.

  • Solutions:

    • Confirm the software-configured output range matches load requirements.

    • Check if load impedance is within the module's rated range (e.g., ≥1kΩ).

    • Replace with shielded cables, ensure good grounding, and keep away from strong electromagnetic interference sources.

  • No Output from Channel

  • Possible causes: Abnormal driver, hardware damage, or disabled channel.

  • Solutions:

    • Reinstall or update NI official drivers.

    • Check channel configuration via NI MAX software to confirm if output is enabled.

    • If hardware failure occurs, contact after-sales service for module circuit inspection.

  • Module Communication Interruption

  • Possible causes: Bus interface failure, unstable power supply, or incompatible communication protocol.

  • Solutions:

    • Check CFP chassis power and bus connections to ensure stable supply voltage (e.g., 24V DC).

    • Confirm communication protocols (e.g., PCIe, EtherCAT) are compatible with the system, and restart the device to reset the communication link.

Comparison with NI CFP-AI-100
Characteristic NI CFP-AI-100 (Analog Input Module) NI CFP-AO-210 (Analog Output Module)
Core Function Acquires analog signals and converts to digital quantities Generates analog voltage signals to drive external devices
Channel Type 8 analog inputs (voltage/current) 4 analog voltage outputs
Resolution 12 bits 16 bits
Typical Applications Sensor data acquisition, equipment monitoring Actuator control, signal source simulation
Summary
As a high-precision analog output module, NI CFP-AO-210 is suitable for scenarios requiring precise signal control, leveraging its multi-channel, high-resolution, and strong isolation features. During use, pay attention to matching output ranges with loads and regularly troubleshoot interference and driver issues to ensure stable system operation.
