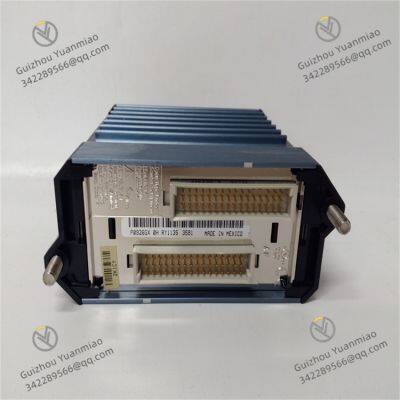

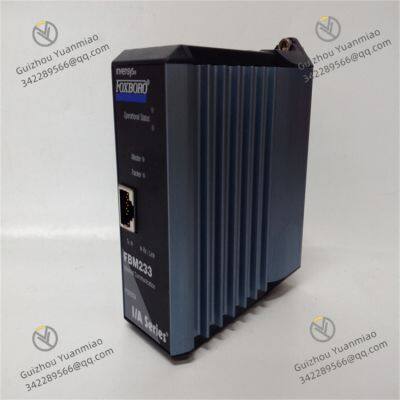

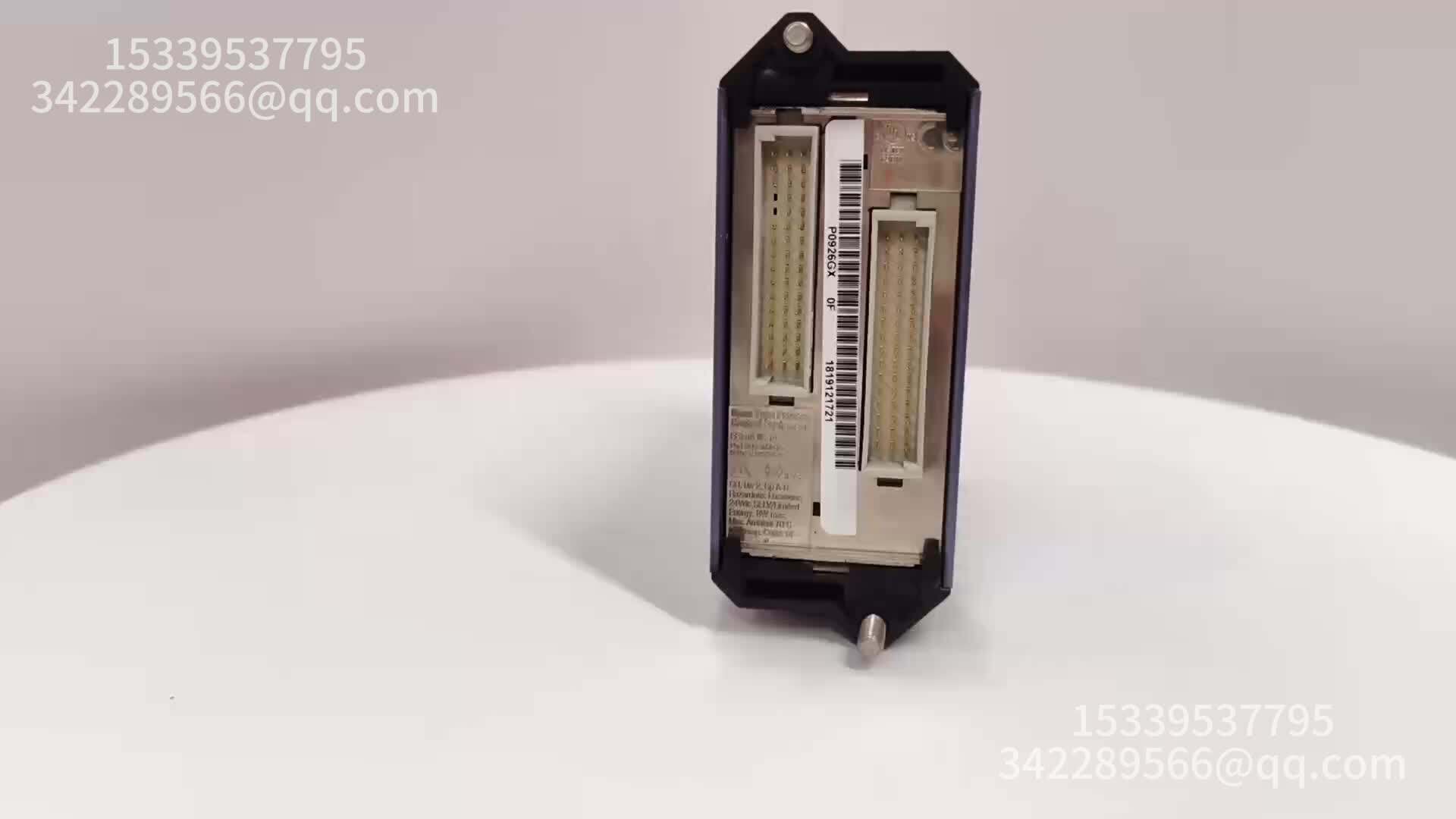

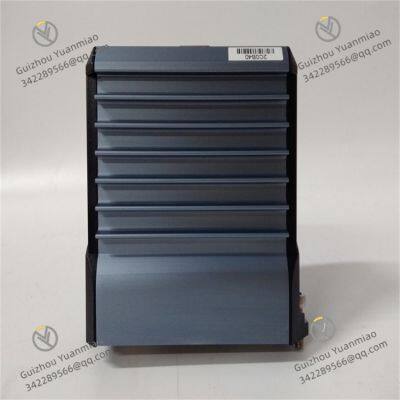

Foxboro FBM233 P0926GX Analog Input Module

I. Functional Features

• High-integration Analog Input Module:
  Equipped with 16 isolated analog input (AI) channels, supporting industrial standard signals (e.g., 4-20mA, 0-10V). Suitable for high-density collection of process parameters such as temperature, pressure, and flow.

• High-precision Signal Processing: AI channels feature 16-bit resolution, linearity ≤±0.05% FS, and sampling rate ≥500Hz, meeting high-precision measurement requirements.

• Full-channel Electrical Isolation Design:
  Each AI channel is independently optoelectrically isolated with an isolation voltage ≥500V AC, effectively suppressing common-mode interference and preventing cross-channel signal crosstalk and equipment damage.
• Wide-range Signal Compatibility and Configuration Flexibility:

• Input signals support 4-20mA, 0-20mA, 0-5V, 0-10V, ±5V, ±10V, etc. (configurable via software), compatible with pressure transmitters, temperature sensors, flowmeters, and other devices.

• Each channel can independently set signal types, engineering units, and alarm thresholds to adapt to complex industrial site requirements.

• Industrial-grade Environmental Adaptability and Status Monitoring:

• Operating temperature: -40°C to 70°C, protection level meets dustproof and splash-proof requirements, suitable for harsh environments such as metallurgy, chemical industry, and power.

• Each channel is equipped with independent LED indicators (input value abnormality, signal status) for on-site real-time monitoring and fault diagnosis.

II. Technical Parameters

III. Working Principle

• Analog Signal Acquisition and Processing Flow:

• Signal Access: AI channels receive external sensor signals (e.g., 4-20mA current or 0-10V voltage), filtering and amplifying via signal conditioning circuits to eliminate noise interference.

• Analog-to-Digital Conversion: Convert analog signals to digital quantities through 16-bit ADC, transmitting to the internal processor via optoelectric isolators to ensure signal integrity.

• Data Processing: The processor linearizes and corrects digital signals, filters (configurable filtering time), supports engineering unit conversion (e.g., mapping between temperature in °C and current in mA), and stores in status registers.

• Communication and Status Feedback Mechanism:

• Communicate with the control system in real time via Modbus RTU protocol, uploading AI data and receiving configuration commands.

• LED indicators dynamically display channel status (e.g., flashing when input exceeds limits, steady on when normal) for on-site debugging.

IV. Installation and Configuration Guide(I) Installation Steps

• Safety and Environmental Preparation:

• Power off and wear an anti-static wristband to avoid static damage to components.

• The installation environment should be far from strong electromagnetic sources (e.g., frequency converters, transformers), ensuring temperature and humidity meet requirements.

• Physical Installation:

• Insert into the corresponding slot of the FBM backplane, pressing until the slot locks. If using a DIN rail, fix the backplane with an adapter.

• Wiring Connection:
• Wiring Connection:

• Current signal (4-20mA): Two-wire transmitters directly connect to AI terminals (+ for signal, - for COM); three-wire/four-wire transmitters require external power supply.

• Voltage signal (0-10V): Connect positive and negative poles to corresponding terminals, common end to COM. Use shielded wires and single-point grounding is recommended.

• Power Wiring: Connect to 24V DC power supply (mind polarity), using shielded cables.

• AI Wiring:

• Appearance Inspection:

• Confirm no loose terminals and correct wiring. After powering on, check the PWR light (green steady on), and AI channel lights should not flash abnormally.

(II) Configuration Process

• Tools and Connection:

• Use Foxboro's dedicated configuration software (e.g., FBM Configuration Tool) to connect the module via RS-485 or Ethernet.

• Parameter Configuration:

• Communication Parameters: Set Modbus address (1-247), baud rate (up to 115.2kbps), and parity.

• AI Parameters: Configure input signal types, engineering units (e.g., °C, kPa), upper/lower alarm values, and filtering time (default 10ms) for each channel.

• Function Verification:

• Manually input standard signals (e.g., 10mA to an AI channel), observe if LED lights match software display values (error ≤±0.05% FS).

V. Typical Application Scenarios

• High-density Process Parameter Collection:

• Chemical industry: Synchronous monitoring of multi-point temperature and pressure in reactors, flow distribution collection in distillation columns.

• Petroleum refining: Large-scale data collection systems for storage tank liquid level and pipeline pressure.

• Power and Energy Monitoring:

• Substations: Analog collection of multi-loop bus voltage and current, transformer oil temperature and winding temperature monitoring.

• Photovoltaic/wind power: Centralized signal processing for multiple sensor groups (e.g., wind speed, photovoltaic panel temperature).

• Environmental Protection and Municipal Engineering:

• Sewage treatment plants: Collection of multi-station pH, turbidity, and COD parameters, linkage control with PLC.

• Urban pipe networks: Multi-point monitoring of water supply pressure and flow to build intelligent water management systems.

VI. Comparison with FBM232/P0926GW (Extended Reference)

VII. Fault Troubleshooting Key Points
