Home > Products > Isuzu Diesel Generator > Prime 24kW JX ISUZU Genset Powered by JX Isuzu JE493DB-01 Diesel Engine

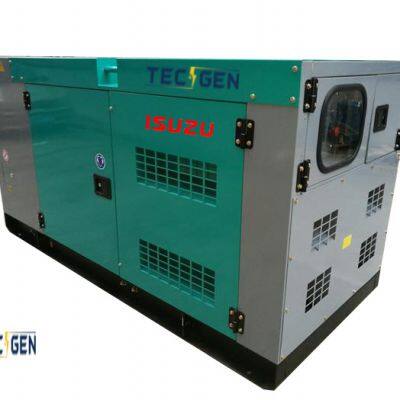

Prime 24kW JX ISUZU Genset Powered by JX Isuzu JE493DB-01 Diesel Engine
- 0 Set / Sets per Month
- Fuzhou
- T/T L/C PayPal D/P Western Union Other
- 15 days
You May Like
-
30kVA ISUZU Diesel Generator Set with Soundpoof & Weather Proof Canopy for Outdoor Use
-
30kW ISUZU Diesel Generator Powered by JX Isuzu JE493ZLDB-02 Engine with Stamford S1L2-N1 Alternator
-
Continuous Running 80kVA Cummins Diesel Generator Set Powered by 4 Cylinder Diesel Engine
-
Continuous Running 84kW Cummins Diesel Generator Set Powered by 6 Cylinder Diesel Engine
-
Heavy Duty Use 900kW Cummins Diesel Genset with 12 Cylinder CCEC Diesel Engine
-
Silent Type Cummins 400kW Diesel Generator Set with 800A ATS Box
Product Details
Type | Self-Starting Diesel Generator | Warranty | 1500hours | |
Stroke | Four Stroke | Usage | Common Units, Standby Unit, Emergency Crew | |
Speed | Speed | Cooling Method | Water Cooling | |
Installation Method | Fixed | Excitation Mode | AC Rotating Exciter | |
Conditions of Use | Land Use | Landuse Type of Unit | Low Noise Automation Type | |
Output Type | AC Three Phase | Model | TG33JISD6 | |
Frequency | 60Hz | Voltage | 220V | |
Phase | 3 Phase, 4 Wire | P.F(COS) | P.F 0.8 | |
Rated Power | 24kW / 30kVA | Standby Power | 26kW / 33kVA | |
Engine Brand | JX Isuzu | Engine Model | JE493DB-01 | |
Alternator Model | TGI184S24 | Transport Package | FCL | |
Trademark | TECGEN | Origin | CHINA |
Product Description
Prime 24kW JX ISUZU Genset Powered by JX Isuzu JE493DB-01 Diesel Engine
Product Title: Prime 24kW JX ISUZU Genset - Reliable Power Solution
Product Description:
Introducing the Prime 24kW JX ISUZU Genset, the ultimate power solution for your industrial, commercial, or residential needs. Engineered with precision and backed by the renowned durability of JX ISUZU, this genset is the perfect blend of performance and efficiency.
Standard Features:
Powerful Engine: Equipped with the JE493DB-01 engine, delivering a rated output of 24kW and a standby capacity of 26kW, ensuring uninterrupted power supply even during peak demand.
High-Quality Alternator: The TGI184S24 alternator, manufactured by Copy Stamford, ensures stable voltage and frequency regulation, maintaining ±1% accuracy.
Intelligent Controller: The DEIF SGC-420 controller monitors and regulates the genset's performance, optimizing fuel efficiency and ensuring smooth operation.
Key Features:
Efficient & Silent Operation: Operating at just 70dB(A) @ 7m, the genset provides clean energy without disturbing your surroundings.
Compact Design: With dimensions of L2100 * W730 * H1000mm, this compact genset is easy to transport and install.
Long-Lasting Durability: Boasting a 4-cylinder inline engine with forced water cooling, the Prime 24kW JX ISUZU Genset ensures long-term reliability and low maintenance costs.
Prime 24kW JX ISUZU Genset Specifications | |||||
Model | Engine | Alternator | Controller | Output | |
TG33JISD6 | JE493DB-01 | TGI184S24 | DEIF SGC-420 | 24kW | |
Remark: (1) Payment Terms: FOB Fuzhou Port (2) Delivery: 15 working days (3) Payment method: 30% deposit, 70% before delivery (4) Price Valid time: 30 Days (5) Option: Integrated Fuel Tank, Water Heater, ATS, PMG Generator, SYNC Function, 12/24 Hours Fuel Tank, 3000 hours Spare Parts
| |||||
General Date of 24kW JX ISUZU Silent Generator | |||||
Engine Model | JE493DB-01 | ||||
Alternator Mode | TGI184S24 | ||||
Rated Output | 24kW / 30kVA | ||||
Standby Output | 26kW / 33kVA | ||||
Rated Speed | 1800 RPM | ||||
Frequency | 60 HZ | ||||
Rated Voltage | 220V | ||||
Rated Current | 78.7A | ||||
Breaker | 100A Aisikai Breaker | ||||
Power Factor | 0.8 | ||||
Genset Phase | 3 phase, 4 – wire connection | ||||
Fuel Tank | 8 running hours | ||||
Noise level dB(A) @7m | 70dB(A) | ||||
Net Weight | 700KGS | ||||
Genset size | L2100 * W730 * H1000mm | ||||
Voltage regulation rate | ≤±1% | ||||
Random voltage variation | ≤±1% | ||||
Frequency regulation rate | ≤±5% | ||||
Random frequency variation | ≤±0.5% | ||||
General specification of Engine for 24kW JX ISUZU Silent Generator | |||||
Manufacture | JX ISUZU | ||||
Model | JE493DB-01 | ||||
Rated Output/Speed | 28KW/1800RPM | ||||
Standby Output/Speed | 31KW/1800RPM | ||||
Aspiration | Natural Intake | ||||
Speed Governor | MECH or Electric | ||||
Engine Type | 4 cylinders in line | ||||
Bore X Stroke | 93*102mm | ||||
Displacement | 2.771 L | ||||
Compression ratio | 18.2:1 | ||||
Cooling system | Forced Water Cooling Cycle | ||||
Rated speed | 1500rpm | ||||
Fuel Consumption/rated output | 6 L / h | ||||
Fuel Consumption/standby output | 7 L / h | ||||
Starter motor | D.C. 24V Electric starting | ||||
Alternator (Dynamo) | AC24V | ||||
General data of Alternator for 24kW JX ISUZU Silent Generator | |||||
Alternator Model | TGI184S24 | ||||
Manufacture | Copy Stamford | ||||
Rate Output | 24kW | ||||
Rated voltage(V) | 220V | ||||
Voltage regulation | AVR ± 1.0 % | ||||
Working Altitude | ≤1000 | ||||
Control System | Brushless Self Excited | ||||
Bearing | Single Bearing | ||||
Insulation System | Class H | ||||
Protection | IP23 | ||||
Power factor | 0.8 | ||||
Winding connection | 3 phase, 4 – wire connection | ||||
Standard configuration of 24kW JX ISUZU Silent Generator | |||||
Aluminum water tank | 50℃ | ||||
Controller Panel | DEIF SGC-420 | ||||
Battery | Varta Maintenance free Battery | ||||
Silencer | Included | ||||
Dry type air filter, fuel filter, oil filter | |||||
24V D.C automatic battery charger | |||||
Max. 50 degree celsius radiator | |||||
Batteries, rack and cable | |||||
Ripple flex exhaust pipe, flange and muffler |
Usage:
Ideal for powering construction sites, hospitals, data centers, and remote locations, the Prime 24kW JX ISUZU Genset ensures continuous power supply in emergencies or as a primary source.
Advantages:
Fuel-Efficient: With fuel consumption as low as 6L/h at rated output, reducing operational costs.
Easy Maintenance: Designed for hassle-free maintenance, with quick access to key components.
Versatile Options: Customize your genset with optional features like an integrated fuel tank, water heater, ATS, and more, to suit your specific needs.
Options:
Integrated Fuel Tank
Water Heater
Automatic Transfer Switch (ATS)
PMG Generator
SYNC Function
Extended Fuel Tank (12/24 Hours)
3000 Hours Spare Parts Kit
FAQs:
Q: How loud is the Prime 24kW JX ISUZU Genset?
A: The noise level is 70dB(A) at 7 meters, making it suitable for use in noise-sensitive environments.
Q: What is the fuel consumption at rated output?
A: The fuel consumption is 6 liters per hour at rated output, ensuring cost-effective operation.
Q: Can I customize my genset with additional options?
A: Yes, several customization options are available to tailor the genset to your specific requirements.
Experience the unmatched reliability and performance of the Prime 24kW JX ISUZU Genset, your go-to solution for all your power needs. Order now and enjoy the peace of mind that comes with a JX ISUZU Genset.
