Heavy Duty Use 900kW Cummins Diesel Genset With 12 Cylinder CCEC Diesel Engine

Heavy Duty Use 900kW Cummins Diesel Genset With 12 Cylinder CCEC Diesel Engine thumbnail-1
Heavy Duty Use 900kW Cummins Diesel Genset With 12 Cylinder CCEC Diesel Engine thumbnail-2
Heavy Duty Use 900kW Cummins Diesel Genset With 12 Cylinder CCEC Diesel Engine thumbnail-3
Heavy Duty Use 900kW Cummins Diesel Genset With 12 Cylinder CCEC Diesel Engine thumbnail-4
Heavy Duty Use 900kW Cummins Diesel Genset With 12 Cylinder CCEC Diesel Engine thumbnail-5
Heavy Duty Use 900kW Cummins Diesel Genset With 12 Cylinder CCEC Diesel Engine photo-1
Heavy Duty Use 900kW Cummins Diesel Genset With 12 Cylinder CCEC Diesel Engine photo-2
Heavy Duty Use 900kW Cummins Diesel Genset With 12 Cylinder CCEC Diesel Engine photo-3
Heavy Duty Use 900kW Cummins Diesel Genset With 12 Cylinder CCEC Diesel Engine photo-4
Heavy Duty Use 900kW Cummins Diesel Genset With 12 Cylinder CCEC Diesel Engine photo-5
US$ 8000 - 15000 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Self-Starting Diesel Generator
Warranty:
1500hours
Stroke:
Four Stroke
Contact Supplier Request Quote Chat Now
Fujian Tecgen Power Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou
Delivery Detail:
20 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Self-Starting Diesel Generator
Warranty 1500hours
Stroke Four Stroke
Usage Common Units, Emergency Crew
Speed Speed
Cooling Method Water Cooling
Installation Method Fixed
Excitation Mode AC Rotating Exciter
Conditions of Use Land Use
Landuse Type of Unit Low Noise Automation Type
Output Type AC Three Phase
Model TG1238C
Voltage 440V//415V/400V/380V/230V/220V/110V
Frequency 50Hz
Prime power 900kW / 1125kVA
Max power 990kW / 1238kVA
Engine Brand Cummins
Engine model KTA38-G9
Alternator Model TGI404S900
Controller DEIF SGC-420
Canopy Type 20ft / 40ft Container
Transport Package FCL
Trademark TECGEN
Origin CHINA

Heavy Duty Use 900kW Cummins Diesel Genset with 12 Cylinder CCEC Diesel Engine


Introducing the Powerful 900kW Cummins Engine Genset: Your Reliable Open Type Diesel Generator Solution

Empower your industrial operations with the formidable 900kW Cummins Engine Genset, a masterpiece of engineering excellence designed to meet the most demanding power requirements. This open type diesel generator, featuring the iconic CCEC Cummins KTA38-G9 engine, sets the benchmark for reliability, efficiency, and durability in the power generation industry.

Standard Features:

  • Powerful Engine: Equipped      with the KTA38-G9, a 12-cylinder, four-stroke, water-cooled,      direct-injection diesel engine, delivering a maximum output of 1089kW,      ensuring ample power reserves for critical applications.

  • Versatile Output: Rated      at 900kW/1125kVA with a standby capacity of 990kW/1238kVA, this genset      effortlessly adapts to varying loads, ensuring uninterrupted power supply.

  • Electric Governor:      Precisely controls engine speed for stable frequency (50Hz) and voltage      (240/415V), ensuring clean and reliable power output.

  • Rugged Construction:      Built to withstand harsh environments, the generator's sturdy frame and      components ensure long-term durability.

Key Features:

  • Efficient Alternator: The      Tecgen TGI404S900 alternator boasts a 92.50% efficiency rating, crafted      from 100% pure copper, ensuring minimal energy loss and maximum power      conversion.

  • Brushless Design:      Self-excitation and brushless voltage regulation (+/-1%) ensure      maintenance-free operation and stable voltage output, enhancing overall      system reliability.

  • Advanced Control System:      Integrated with the DEIF SGC-420 control panel, offering comprehensive      monitoring and protection functions, including under-speed, over-speed,      coolant temperature, and fuel level detection, ensuring safe and efficient      operation.

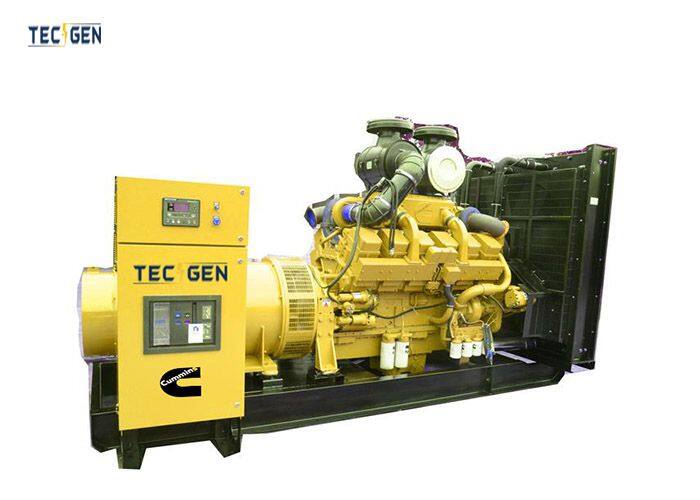

900kW Cummins Engine Genset.jpg


900kW Cummins Engine Genset Datasheet

Genset Model

TG1238C

Rated Power

900kW   / 1125kVA

Standby Power

990kW   / 1238kVA

Governor

Electric

Frequency

50Hz

Rated Voltage

240 / 415V

Rated Current   (A)

1565.2A

Dimension (mm)

L4800   x W2100 x H2300

Gross Weight   (kg)

8600

                              Diesel   Engine

Brand

CCEC   Cummins

Model

KTA38-G9

Configuration

Four-stroke,Water-cooling,Direct   Injection

Max Engine   Power

1089kW

Rated Speed   (rpm)

1500rpm

Cylinder No.

12

Bore*Stroke   (mm)

159 x 159

Displacement(L)

37.8

Intake

Turbocharged and Aftercooled

Fuel   Consumption (g/Kw*h)

219@100% load

Starting   method

24V   DC / 200Ah

Alternator

Brand

Tecgen

Model

TGI404S900

Rated Power

900kW

Materials

100% pure   copper

Efficiency

92.50%

Voltage   Regulation

Voltage   Regulation

Brushless, Self-excitation

Insulation   Class

H

Option brands

Stamford   / Leroy Somer / Meccalte

Control System

Brand

DEIF

Model

SGC-420

Working   Voltage

DC8.0V to   DC35.0V, continuous

Overall   Dimensions (mm)

233*38.5*173

Panel Cutout   (mm)

219*158

Working   Condition

0 to 95 % RH.   To IEC 60068-2-78

Functions

AMF/ATS

RS485   & CAN communication

9   Inlet & 7 Outlet

PLC   & BTN

Protections

Under-speed

Over-speed

Configurable   crank connect

Battery   monitoring

Charging   alternator

Pre-heat

Coolant   temperature

Lube   oil pressure

Fuel   level detection

Fuel   theft detection

ECU   communication failure

ECU   diagnostic lamp

Option   brands

Deepsea   / Smartgen / ComAp / Mebay

Genset option equipment

Integrated-Fuel-Tank

ATS   Box / Cabinet

PMG   Alternator

Sync   Panel

Trailer   Type

Engine   Heater

Water   Heater

Fuel   – Water Separator

Maintenance Timetable of   Diesel Generating Set

Items

Job

Content

Everyday

Every   Week

Every   Month

Every   Six Month

Every   Year or 250 Hours

Lubricating   System

Check

Oil   leakage

√

√

√

√

√

Level   of engine oil

√

√

√

√

√

Replace

Oil   Filter


√

√

Engine   Olil


√

√

Clean

Crankcase   box


√

√

Cooling   System

Check

Oil   leakage

√

√

√

√

√

Radiator   Block

√

√

√

Soft   Tube and Joint

√

√

√

Fluid

√

√

√

√

Antifreeze   and

Anticorrosion

√

√

√

Belt   Status


√

√

Add   Grease

lubricant

Fan   and Tensing


√

√

Belt   wheel


√

√

Check

Driving   Belt wheel and pump


√

√

Replace

Cooling   Liquid

Every 12 months

Clean

Cooling   System

Airflow   System

Check

Oil   Gas

√

√

√

Cleaner

√

√

√

√

Pipe   Fittings and Joint


√

√

Replace

Core   of Air Cleaner



√

Fuel   System

Check

Leakage

√

√

√

√

√

Quality   of Fuel

√

√

√

√

Pump   Nozzle



√

Fuel   pipe and Joint


√

√

Oil   Pump

√

√

√

Discharged

Deposition   of Fuel Tank

√

√

√

Replace

Filter   of oil


√

√

Check

Nozzle

Every Two Years

Adjust

Value



√



Usage:

Ideal for use in a wide range of industries, including construction sites, hospitals, data centers, and industrial complexes, the 900kW Cummins Engine Genset serves as a primary or backup power source, ensuring continuous operation during power outages or grid failures. Its open type design allows for easy maintenance and accessibility, making it the perfect choice for large-scale power generation needs.

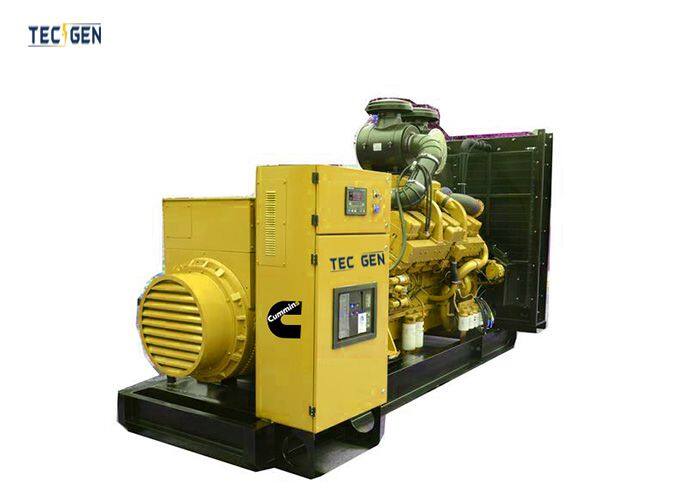

CCEC 900kW Cummins Engine Genset.jpg


Advantages:

  • High-Performance Engine:      The Cummins KTA38-G9 engine delivers unparalleled power and torque,      ensuring swift response to load changes.

  • Cost-Effective: With low      fuel consumption (219g/kWh at 100% load) and high efficiency, this genset      offers exceptional value for money.

  • Easy Maintenance: Open      type design and modular components facilitate swift maintenance and      repairs, minimizing downtime.

  • Versatile Options: Choose      from a range of optional equipment, including integrated fuel tanks, ATS      boxes, PMG alternators, and more, to tailor the genset to your specific      requirements.

Options:

  • Integrated Fuel Tank:      Ensure continuous operation with a built-in fuel tank that eliminates the      need for frequent refueling.

  • ATS Box/Cabinet:      Seamlessly switch between primary and backup power sources with an      automatic transfer switch.

  • Engine Heater & Water      Heater: Protect your investment from cold weather with optional heaters      for the engine and cooling system.

  • Control System      Alternatives: Select from leading control system brands like Deepsea,      Smartgen, ComAp, or Mebay for advanced monitoring and control      capabilities.

FAQs:

Q: What is the maximum engine power of the 900kW Cummins Engine Genset?
A: The KTA38-G9 engine delivers a maximum power output of 1089kW.

Q: What is the rated voltage and frequency of this genset?
A: The genset is rated at 240/415V and 50Hz, ensuring compatibility with most electrical systems.

Q: Can I customize the control system?
A: Yes, you can choose from various control system options, including DEIF, Deepsea, Smartgen, ComAp, and Mebay, to suit your specific monitoring and protection needs.

Experience the unbeatable power and reliability of the 900kW Cummins Engine Genset – your trusted partner for all your open type diesel generator requirements. Order now and elevate your power generation capabilities to new heights!
