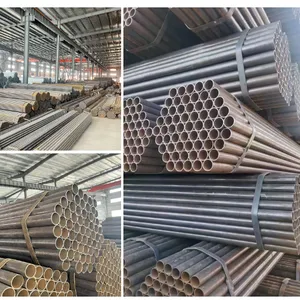

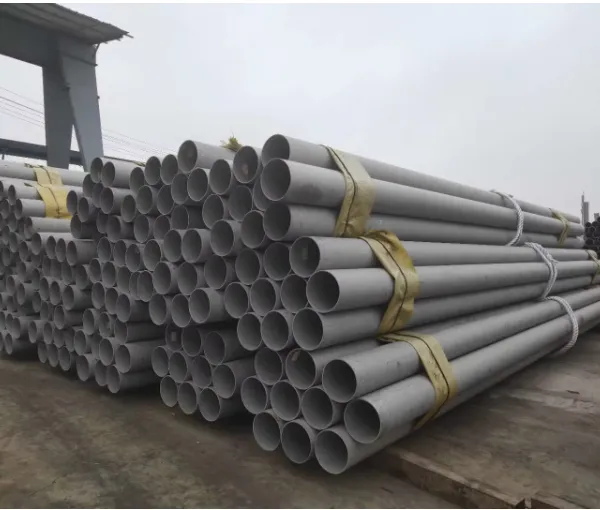

Help CenterWholesale Aluminum/Round/ Titanium/Welder/Seamless/Inconel/ Hastelloy/Nickel Alloy/304, 316L, 321, 430, 410 600 625 718 X750 N02200 Alloy Steel Pipe
Related Products
-
Lork AMS 4930/Uns R56401/AMS 4907/ASTM F 136 Titanium Alloy Gr23 Tube for Dental Medical Implant Devices Ti-6al-4V Eli Titanium Alloy PipeNegotiableMOQ: 100000 Tons -
High Quality Duplex Polishing Mirror Ab 2b Bright Stainless Steel Tube for ChemicalUS$ 1200 - 1800MOQ: 1 Ton
-
EU General Aerospace Duplex Hastelloy Alloy Tube ISO9001 C22 N06022 C276 N10276 N10675 Round Square Rectangular PipeNegotiableMOQ: 1 Ton
-
EU General ASTM B622 Hastelloy C22 /Uns N06022/ 2.4602 Nickel Alloy Steel Seamless Pipe for Pharmaceutical IndustryNegotiableMOQ: 1 Ton
-
304 316 Stainless Steel Bright Annealed Seamless Polished Surface Capillary TubeNegotiableMOQ: 1 Ton
Introduction
Zhongzheng Stainless Steel Co., Ltd.specializes in the supply of Grade 23 Ti 6Al 4V ELI alloy raw materials and processing, alloys, stainless steel, metal quality development, welcome your inquiries
Ti 6Al-4V ELI is the extra-low interstitial version of Ti 6Al-4V and its content is arrived at by the careful selection of ingot raw materials with lower specified limits on iron and the interstitial elements C and O. It has been the material of choice for many medical and dental applications due to its excellent biocompatibility, good fatigue strength, and low modulus. The ELI grade has superior damage tolerance (fracture toughness, fatigue crack growth rate) and better mechanical properties at cryogenic temperatures compared to standard grade Ti 6Al-4V. The high-purity alloy is also known as ASTM B348 Grade 23.
Titanium Ti 6Al 4V ELI Alloy Application Industries
Medical implant devices
Marine usage
Oil and Gas applications
Ti 6Al 4V ELI Titanium Alloy Chemical Composition
The chemical composition of grade 23 Ti 6Al 4V ELI alloy is outlined in the following table.
| Element | Content (%) |
| Titanium, Ti | 88.09 - 91 |
| Aluminum, Al | 5.5 - 6.5 |
| Vanadium, V | 3.5 - 4.5 |
| Iron, Fe | ≤ 0.25 |
| Carbon, C | ≤ 0.080 |
| Nitrogen, N | ≤ 0.030 |
| Hydrogen, H | ≤ 0.0125 |
| Other, each | ≤ 0.10 |
| Other, total | ≤ 0.40 |
| Properties | Metric | Imperial |
| Tensile strength | 860 MPa | 125000 psi |
| Yield strength | 790 MPa | 115000 psi |
| Poisson's ratio | 0.342 | 0.342 |
| Elastic modulus | 113.8 GPa | 16510 ksi |
| Shear modulus | 44.0 GPa | 6380 ksi |
| Elongation at break | 15% | 15% |
| Hardness, Brinell | 326 | 326 |
| Hardness, Knoop | 354 | 354 |
| Hardness, Rockwell C | 35 | 35 |
| Hardness, Vickers | 341 | 341 |
The physical properties of grade 23 Ti 6Al 4V ELI alloy are tabulated below.
| Properties | Metric | Imperial |
| Density | 4.43 g/cm3 | 0.160 lb/in3 |
| Melting point | 1604 - 1660°C | 2919 - 3020°F |
Ti 6Al 4V ELI Titanium Alloy Thermal Properties
The thermal properties of grade 23 Ti 6Al 4V ELI alloy are tabulated below.
| Properties | Metric | Imperial |
| Thermal expansion co-efficient (@20-100°C/68-212°F) | 8.60 µm/m°C | 4.78 µin/in°F |
| Thermal conductivity | 6.70 W/mK | 46.5 BTU in/hr.ft².°F |
AMS 4905
AMS 4907
AMS 4930
AMS 4931
AMS 4956
AMS 4996
AMS 6932
ASTM F 136
ASTM B 348
MIL-T-9047
Ti 6Al 4V ELI alloy can be machined using slow speeds, right quantity of coolant flow and high feed rates. High-speed tools should be used for tooling this alloy and the recommended tool types are tungsten carbide designations C1-C4 or cobalt based.
FormingTi 6Al 4V ELI alloy can be hot or cold formed. Forming techniques include hydropress, stretch or drop-hammer.
WeldingWeldability of Ti 6Al 4V ELI alloy is rated as fair.
Heat TreatmentThe material can be solution treated at 904-954 °C (1660-1750°F) for 2 h, and then water quenched.
AnnealingFor annealing Ti 6Al 4V ELI alloy, the material has to be held at 732°C (1350°F) for about 1/4 and 4h. It should then be furnace cooled to 566°C (1050°F) then air cooled.

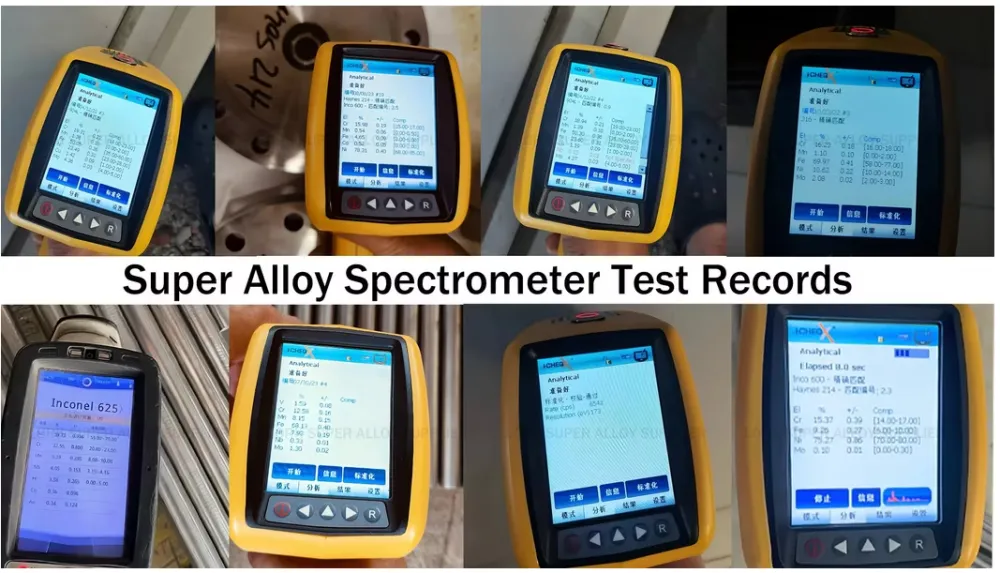

Detection

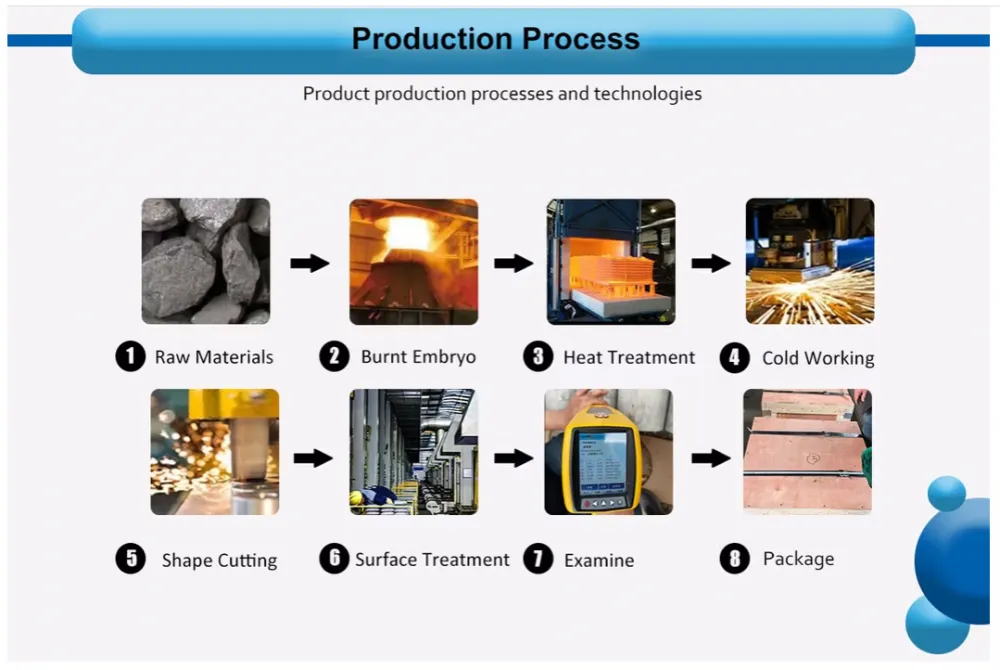

Processing

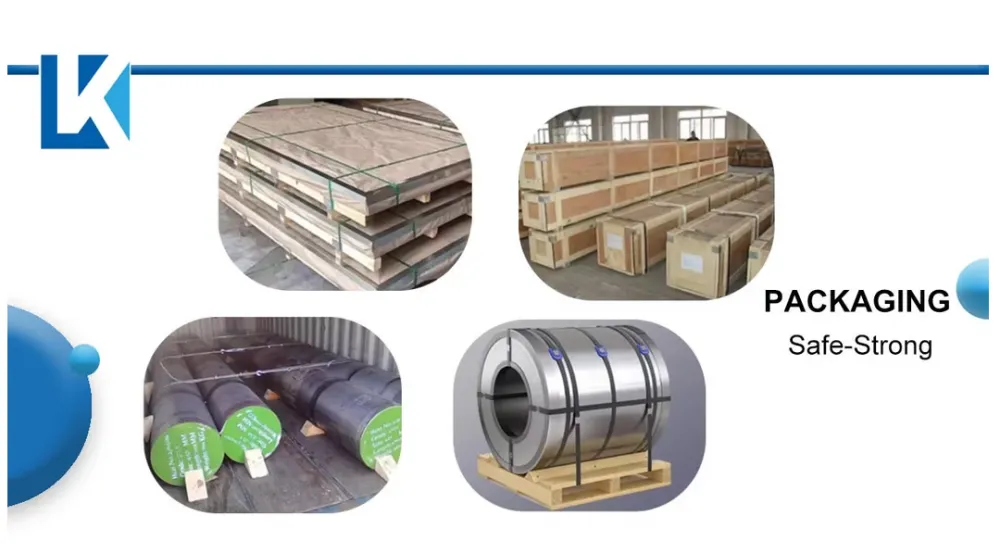

Packaging & Shipping
FAQ
Q1: Do you accept the trial order ?
A1: Yes,if we have the exactly size in stock.we can delivery even 1 piece/meter .
Q2: Can I have free sample before making orders?
Q3: How do you control the quality ?
A3: MTC and PMI will be sent before shipment,any 3rd party inspection if need .
Q4: How about your delivery time ?
A4: Generally delivery time is 15 working days .
Q5: How can I quickly get the price list ?
A5: Directly click "chat now" or send us email with detail specifications,you will get the official price list in 1 hour .
