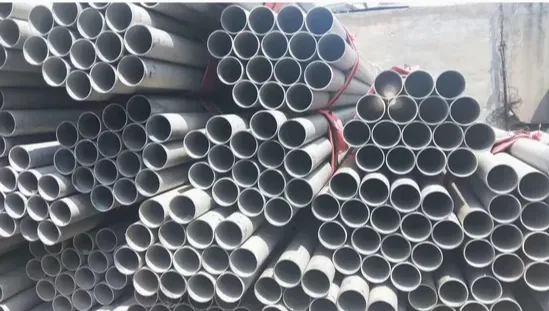

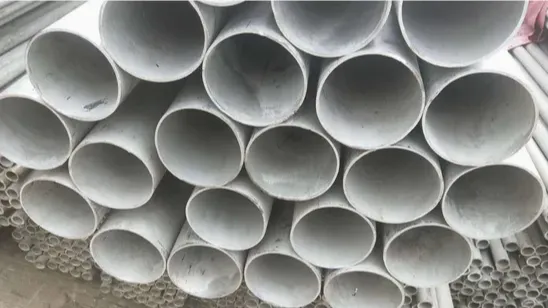

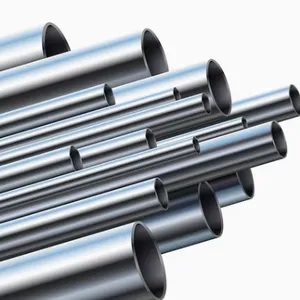

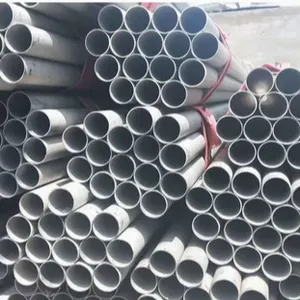

Help CenterEU General Astmb622 Hastelloy C22 /Uns N06022/ 2.4602 Nickel Based Alloy Nickel Alloy Steel Seamless Tube--Pulp & Paper Industries
Related Products
-
High-End Chemical Equipment Toct 03X18h11 Round Pipe Seamless/Welded Black/Bright/Polished/Pickling/Cold Drawing Stainless Steel Pipe/TubeUS$ 2 - 50MOQ: 1 Kilogram -
Cone-Shaped Tube / Circular Arc Board /Square/Round/Seamless Steel Pipe/Welded/Galvanized/Titanium AlloyNegotiableMOQ: 100000 Tons
-
Cylind Thick Wall Welded Seamless Honing Honed Square Brass Copper Titanium Nickel Alloy Galvanized Inox Seamless Stainless Steel PipeNegotiableMOQ: 100000 Tons
-
EU General Nickel Alloy Steel Seamless Pipe Hastelloy C22 /Uns N06022/ 2.4602 ASTM B622 TubeNegotiableMOQ: 1 Ton
-
EU General Hastelloy C22 /Uns N06022/2.4602 Seamless Nickel Alloy Steel PipeNegotiableMOQ: 1 Ton
| Model Number | ASTM B622 UNS N06022 Tube. | ||||
|---|---|---|---|---|---|
| Brand Name | OEM | ||||
| origin | China | ||||
| Small Orders | Accepted | ||||
The combination of good weldable properties along with resistance to the grain-boundary precipitate being formed on the enables the Hastelloy C22 Tube to be used in an as welded condition. This being said, however, the Tubing Sb 622 UNS N06022 must not be used beyond a temperature of 1250° F. At temperatures exceeding 1250° F, the Hastelloy UNS N06022 Tubing material is prone to the formation of detrimental phases. This, in turn, could lead to loss of several important properties of the ASTM B622 UNS N06022 Tube.
As the ASTM B619 UNS N06022 Tube is able to withstand both oxidizing and reducing corrosive compounds, the Alloy C22 Tube proves to be an asset to the chemical processing industry. This is because, in chemical processing industries, the Alloy C22 Seamless Tubing offers optimum resistance to corrosion in upset conditions. The Hastelloy C22 Seamless Tubing proves to be useful against localized corrosion like pitting and crevice corrosion. Apart from marine environments, the 2.4602 Alloy 22 Tube resists acetic anhydride as well. In the presence of oxidizing media such as nitric acid, ferric and cupric salts, the Hastelloy Alloy C22 Tubing demonstrates good resistance. In fact, the C22 Hastelloy Welded Tubing has superior resistance to oxidizing aqueous media. Contact Oshwin to get the quote for Hastelloy C22 Tubing.
ASTM B622 UNS N06022 Tube sizesC22 Hastelloy Seamless Tubing
Size: 1/2" OD - 12" OD
OD: 3.00 - 219.10 mm
Thickness : 0.40 - 12.70 mm
Length: Single, Double Random & Cut Length
Hastelloy Alloy C22 Welded Tubing
Size: 1/2" - 12" OD, Guage: 25 SWG - 10 SWG
OD: 6.35 to 114.3 mm O.D
Thickness : 0.8 - 12.7 mm
Length: up to 26 Meters
| ASTM/ ASME Specification | ASTM B619/ ASME SB 619, ASTM B622 / ASME SB 622 Standard Specification for Seamless & Welded Superheater, Condenser, Hydraulic, Boiler and Heat-Exchanger Tubes |
| Shapes | Hastelloy UNS N06022 Round, Rectangular, Square, Hydraulic, Straight, "U" Shape, Coiled, Honed Tubes, Pan Cake Coils |
| Manufacturing Type | Seamless / ERW / Welded / Fabricated / CDW / CDS / DOM / CEW / 100% X Ray Welded |
| Thickness Range | SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXH, SCH XXS, SCH XS |
| Swg & Bwg | 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg. |
| Standard | SUS, JIS, AISI, ASTM, GB, DIN, EN |
| Delivery Condition | Annealed and Pickled (AP), Polished, Bright Annealed (BA), Cold Drawn, MF |
| Value Added Services |
|
| END | Plain End, Beveled End, Treaded Hastelloy Alloy C22 Tube |
| Processing Service | Bending, Welding, Decoiling, Punching, Cutting, Moulding |
| Technique | C22 Hastelloy Cold drawn, Cold rolled, Hot rolled, Extrusion Tube |
| Marking |
Marked Sample: ASTM B622 UNS N06022 Seamless 113.60 mm OD x 6 mm W.T. HEAT No. xxxxxx |
| Test Certificate |
|
| Alloy NW 6022 Tubing Packaging | Packed in PE Fabric Bundles or ply wooden box wrapped in plastic or Standard seaworthy export packing or as per customers' request |
| Port | Mumbai, India |
ASTM B622 UNS N06022 Seamless Tube
Hastelloy DIN 2.4602 Extruded Seamless Tube
C22 Hastelloy Annealed Tubes
Hastelloy Alloy C22 Seamless Round Tubing
Alloy NW 6022 Redrawn Tube
Hastelloy UNS N06022 Seamless Heat exchanger Tubes
ASTM B622 Alloy C22 Seam Weld Tubing
Hastelloy UNS N06022 Welded Tube
C22 Hastelloy Cold Rolled Tube
Alloy NW 6022 Coiled Tubing
ASME SB 622 UNS N06022 Rectangular Tube
Hastelloy Alloy C22 Square Tubing
ASTM B622 Alloy C22 Exhaust Tubing
Alloy C22 Hastelloy Straight Tube
| ASME SB 622 UNS N06022 Exhaust Tubing | ASTM B622 UNS N06022 Dom Tubing |
| Hastelloy Alloy C22 Rectangular Tubing | Hastelloy UNS N06022 Hydraulic Tubing |
| C22 Hastelloy Seamless Tubing | ASME SB 622 UNS N06022 Round Tubing |
| ASTM B622 UNS N06022 Instrument Tubing | ASTM B619 Alloy C22 Sanitary Tube |
| Hastelloy UNS N06022 Square Tubing | Hastelloy C22 1 inch Tube |
| Density | Melting Range | Yield Stress (0.2%Offset) | Tensile Stress | Elongation |
| 8.69 g/cm3 | 1399 °C (2550 °F) | Psi - 45000 , MPa - 310 | Psi - 1,00,000 , MPa - 690 | 45 % |
| Ni | C | Mo | Mn | Si | Fe | P | S | Co | Cr |
| Balance | 0.010 maximum | 12.5 - 14.5 | 0.50 maximum | 0.08 maximum | 2 - 6 | 0.02 maximum | 0.02 maximum | 2.5 maximum | 20 - 22.5 |
| NICKEL ALLOY | UNS | DIN / WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST |
| Hastelloy C22 | N06022 | 2.4602 | - | NiCr21Mo14W | NW 6022 | - | - |
| Product Name | Nickel alloy steel pipe |
| Grade | N06022 |
| Standards | JIS, AISI, ASTM, GB, DIN, EN |
| Diameter | 1/8''-36'' 10.3mm-914.4mm |
| Thickness | 1mm-70mm |
| Length | 5000mm-12000mm,or customize |
| Surface | AP,BA,2B,or others |
| Pipe Ends | Bevel end,Plain end,Bevel both ends,Bevel large end,Bevel small end,or others |
| Application |
petroleum,foodstuff,chemical industry,construction, electric power,nuclear,energy,machinery,biotechnology,paper making,shipbuilding,boiler fields. |
| Quality and test | Radiography Test Report,PMI,Heat Treatment Charts,Manufacturer Test Certificate,etc. |
| Packing | Ply Wooden Boxes,PE Fabric Bundles,Standard seaworthy export packing,Plastic Bags, or as required |
| Delivery time | 20-75 days |
Chemical Composition
| Grade | Ni | Cr | Mo | W | C | Si | Co | Mn | V | P | S |
| C22 | Bal | 20.00-22.50 | 12.50-14.50 | 2.50-3.50 | ≤0.015 | ≤0.080 | ≤2.50 | ≤0.50 | ≤0.35 | ≤0.02 | ≤0.02 |
Mechanical Properties
| Grade | Tensile Strength ksi(MPa ) | Yield Strength (MPa) | Elongation (%) |
| C22 | ≥100(690) | ≥310 | ≥45 |
the ASTM B622 Nickel alloy seamless tube and pipe tolerance
| Specification | OD(D) SIZE | PERMISSIBLE VARIATION | THICKNESS(S) SIZE | PERMISSIBLE VARIATION | LENGTH(L) SIZE | PERMISSIBLE VARIATION |
| B622 (For Cold-workedPipe and Tube) |
10≤D | ±0.13 | ±15% | ODOD>50.8:+4.8/-0 Details refer to B829 |
||
| 16≤D | ±0.19 | ±10% | ||||
| 38≤D | ±0.25 | |||||
| 76≤D≤82 | ±0.38 | |||||
| B622 (For Hot-finished Tube) |
19≤D≤38 | +0.4/-0.8 | ±12.5% | |||
| 38.1≤D≤82 | +0.8/-0.8 | |||||
| B622 (For Hot-finished Pipe) |
25≤D≤48 | ±0.38 | +16%/-12.5% | |||
| 48≤D≤82 | ±0.51 |
