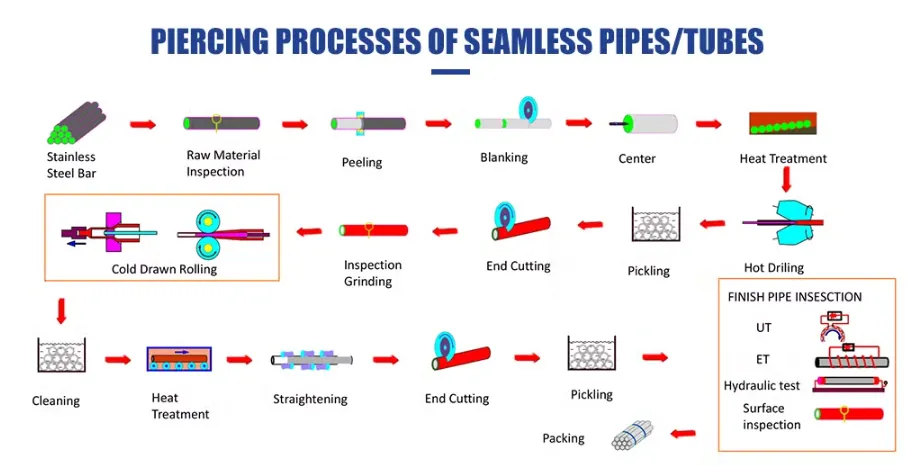

ZHONGZHENG has fully grasp the various material performances of high-temperature nickel alloy and characteristics of pipe process through years of independent research on high-temperature nickel alloy pipes technologies .Our company uses advanced high -speed precision rolling mill,continuous automatic temperature control natural gas roller furnace, automatic temperature control box annealing furnace and different material high temperature nickel alloy pickling process to produce different materials of nickel alloy pipe.
Key technologies : The uniformity and material purity of chemical composition of material,the precise control of the variant amount of pipe process,the precise heat treatment temperature and time , different materials with acid formula process and pickling time .
Size Range:OD 6mm--630mm
WALL THICKNESS :0.5mm-65mm
Max Length : 18m (Special specifications are available as required.)
STANDARD :ASTM B677,ASTM A789,ASTM A790,ASTM B622,ASTM B829,ASME SB163,ASME SB165,ASME SB167,ASME SB407,ASME SB423,ASME SB444,ASME SB622,ASME SB668,ASME SB677,ASME SB690,ASME SB729.......
Material:Alloy B/ N10001,Alloy B2/N10665,Alloy B3/N10675,AlloyC4/N06455,Alloy C22/N06022,Alloy C276/N10276, 2.4819,Alloy C2000/N06200,Alloy G35/N06035,Alloy G30/N06030,Alloy S/N06635,Alloy N/N10003,Alloy X/N06002,Alloy 188/R30188,Alloy 230/N06230,
Alloy 556/R30556,Alloy 600/ N06600,Alloy 601/N06601,Alloy 617/N06617,Alloy625/N06625,Alloy718/N07718,Alloy X750/N07750,
Alloy800/N08800 UNS N08800,Alloy 800H/N08810, UNSN08810,Alloy 800HT/N08811,Alloy 825/N08825,2.4858,Alloy 925/ N09925,
Alloy 926/N08926,Alloy 400/ N04400,Alloy K500/UNS N05500,174PH, 17-7PH, 15-7PH...
Nickel:N4/UNS N02201,N6/UNS N02200
| Titanium | Composition Requirements, weight percent | |||||||||
| Grade | C | O | N | H | Fe | Al | V | Pd | Ni | Mo |
| 1 | ≤0.08 | ≤0.18 | ≤0.03 | ≤0.015 | ≤0.20 | - | - | - | - | - |
| 2 | ≤0.08 | ≤0.25 | ≤0.03 | ≤0.015 | ≤0.30 | - | - | - | - | - |
| 3 | ≤0.08 | ≤0.35 | ≤0.05 | ≤0.015 | ≤0.30 | - | - | - | - | - |
| 4 | ≤0.08 | ≤0.40 | ≤0.05 | ≤0.015 | ≤0.50 | - | - | - | - | - |
| 5 | ≤0.08 | ≤0.20 | ≤0.05 | ≤0.015 | ≤0.40 | 5.5~6.75 | 3.5~4.5 | - | - | - |
| 7 | ≤0.08 | ≤0.25 | ≤0.03 | ≤0.015 | ≤0.30 | - | - | 0.12~0.25 | - | - |
| 9 | ≤0.08 | ≤0.15 | ≤0.03 | ≤0.015 | ≤0.25 | 2.5~3.5 | 2.0~3.0 | - | - | - |
| 11 | ≤0.08 | ≤0.18 | ≤0.03 | ≤0.015 | ≤0.20 | - | - | 0.12~0.25 | - | - |
| 12 | ≤0.08 | ≤0.25 | ≤0.03 | ≤0.015 | ≤0.30 | - | - | - | 0.6~0.9 | 0.2~0.4 |
| 16 | ≤0.08 | ≤0.25 | ≤0.03 | ≤0.015 | ≤0.30 | - | - | 0.04~0.08 | - | - |
| 17 | ≤0.08 | ≤0.18 | ≤0.03 | ≤0.015 | ≤0.20 | - | - | 0.04~0.08 | - | - |
| 23 | ≤0.08 | ≤0.13 | ≤0.03 | ≤0.0125 | ≤0.25 | 5.5-6.5 | 3.5~4.5 | - | - | - |
Tensile Requirements
| Titanium | Tensile Strength | Yield Strength | Elongation | Bend Test(Radius of Mandrel) | |
| Grade | ksi [MPa] | 0.2% offset, ksi [MPa] | in 2", % | t | 1.8 mm≤t |
| 1 | ≤35 [240] | 20~45 [138~310] | 24 | 1.5T | 2T |
| 2 | ≤50 [345] | 40~65 [275~450] | 20 | 2T | 2.5T |
| 3 | ≤65 [450] | 55~80 [380~550] | 18 | 2T | 2.5T |
| 4 | ≤80 [550] | 70~95 [483~655] | 15 | 2.5T | 3T |
| 5 | ≤130 [895] | ≤120 [828] | 10 | 4.5T | 5T |
| 7 | ≤50 [345] | 40~65 [275~450] | 20 | 2T | 2.5T |
| 9 | ≤90 [620] | ≤70 [483] | 15 | 2.5T | 3T |
| 11 | ≤35 [240] | 20~45 [138~310] | 24 | 1.5T | 2T |
| 12 | ≤70 [483] | ≤50 [345] | 18 | 2T | 2.5T |
| 16 | ≤50 [345] | 40~65 [275~450] | 20 | 2T | 2.5T |
| 17 | ≤ 35[240] | 20~45 [138~310] | 24 | 1.5T | 2T |
| 23 | ≤120 [828] | ≤110 [759] | 10 | 4.5T | 5T |
| Category | Material | Dimension(mm) | Specification |
| Ti & Alloy ingots & bars | CP Ti, Ti-6Al-4V, Ti-6Al-4V Eli, Ti-3Al-2.5V, Ti-5Al-2.5Sn, Ti-5Al-2.5Sn Eli, Ti-0.05Pd, Ti-0.2Pd, Ti-6Al-7Nb, Ti-13Nb-13Zr, Ti-0.1Ru, Ti-3Al-8V-6Cr-4Mo-4Zr, Ti-6Al-4V-0.1Ru, etc. |
Standard Or Customized |
GB/T 2965, ASTM B348 |
| Ti & Alloy castings | GB/T 6614, ASTM B367 | ||
| Ti & Alloy forgings | GB/T 25137, ASTM B381 | ||
| Ti & Alloy plates | GB/T 3621, ASTM B265 | ||
| Ti & Alloy strips & foils | GB/T 3622, ASTM B265 | ||
| Cold rolled Ti & Alloy strip coils | GB/T 26723, ASTM B265 | ||
| Ti & Alloy wires | GB/T 3623, ASTM B863 | ||
| Ti & Alloy seamless tubes | GB/T 3624, ASTM B861 | ||
| Ti & Alloy welded tubes | GB/T 26057, ASTM B862 | ||
| PM Ti & Alloy components | GB/T 6887, ASTM B817 |
FAQ
*What is your paying terms?
Our usual paying terms are 30%TT as deposit and balance paid after seeing copy of bill of loading. For clients cooperated for more than one year, we accept 20% prepay. Beside we do business also under D/P and LC terms.
*How long is your delivery time?
For the goods we have in stocks, we deliver the goods within 5days. If it is a production order with volume not above 200tons, the delivery time will usually be within 20days after sealing contract. And the delivery time shall be slightly longer for order volume above 200tons.
*Can you do partial shipment?
We will follow client request to do partial shipment or not. Partial shipment is not a problem for us.
*What is your Minimum Order Quantity?
For goods in stocks we supply starting with one piece. Shall it is a production order, the MOQ is 3tons. Please be noted price based on MOQ will be slight higher than FCL condition due to higher unit cost.
*Before cooperation we want a sample for inspecting of quality, is that okay?
We can provide a free sample for you shall sample value not above 30USD, you only need to pay the express charge. For a sample valued more than 30USD, the express charge and just one half of sample value is on the account of you, and we afford the other half.
*What is the mode of transportation?
Ocean freight is the most important shipping way, and we choose the ship line based on soonest and earliest shipping time, rather than cheaper cost; or we follow clients' instruction if there is one. Also railways will be chosen by us when it is more convenient. For samples and papers, the transportation will be by air.
