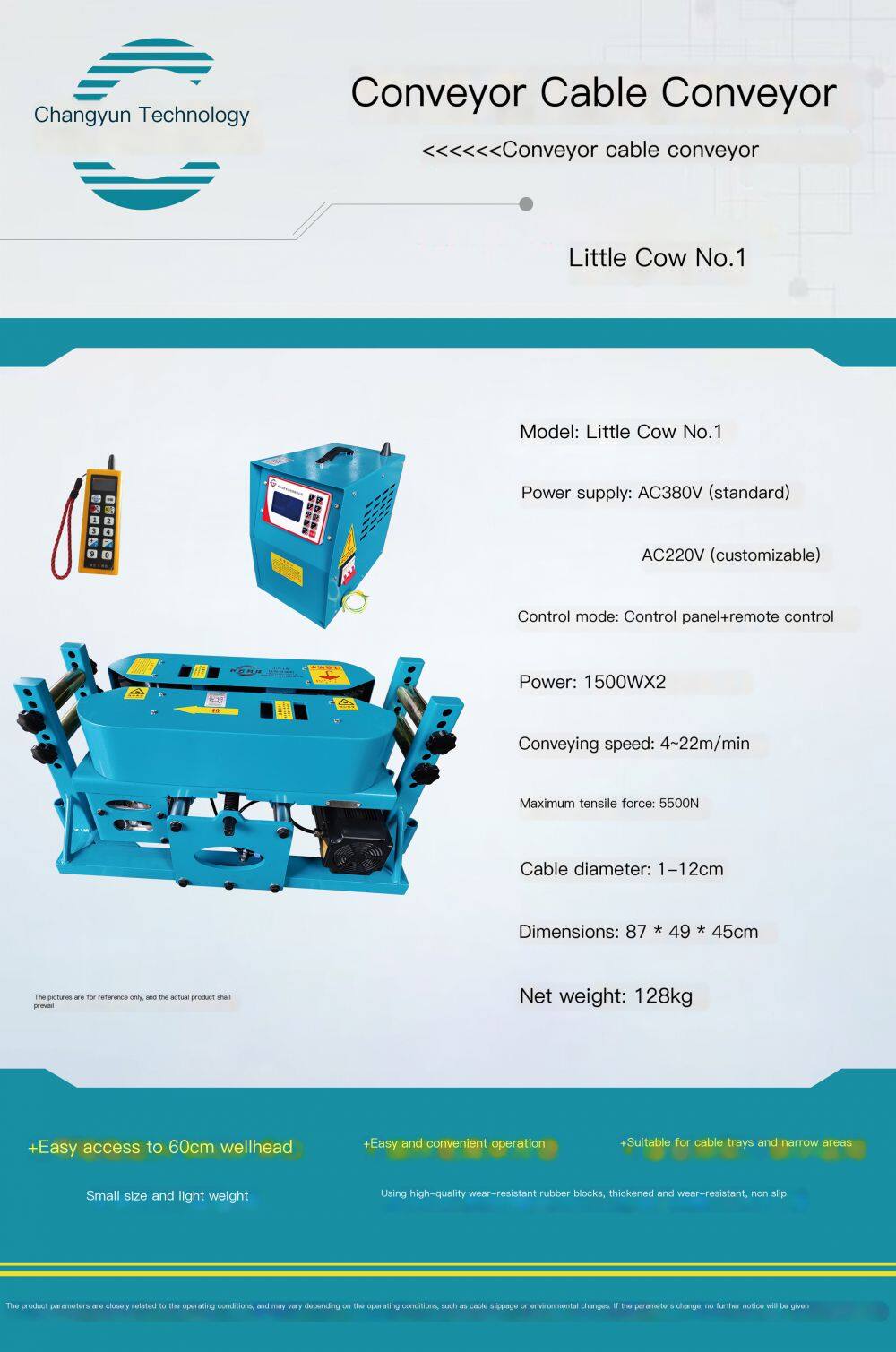

Changyun Technology Little Bull No.1 Cable Laying Machine Cable Conveyor Cable Pulling Cable Dogs

• Model: Little Bull No.1

• Power Supply: The standard power supply is AC380V. It can also be customized to AC220V according to your specific needs.

It features a convenient control method with both a control panel and remote - control operation. This dual - control system allows for flexible and precise control during the cable conveying process, whether you are operating it on - site or from a distance.

• Power: It has a power of 1500W×2, providing sufficient power to ensure stable and efficient cable conveying.

• Conveying Speed: The conveying speed ranges from 4 to 22m/min. This adjustable speed range can meet different construction and operation requirements, enabling you to control the progress of cable laying according to the actual situation.

• Maximum Tensile Force: It can exert a maximum tensile force of 5500N, which is strong enough to handle various types and weights of cables during the conveying process.

• Cable Diameter: It is suitable for cables with a diameter ranging from 1 to 12cm, making it applicable to a wide range of cable specifications in different projects.

• External Dimensions: The external dimensions are 87×49×45cm, which is relatively compact. This compact design makes it easy to transport and store.

• Net Weight: The net weight is 128kg. Despite its certain weight, its structural design ensures stability during operation.

• Compact and Lightweight: With its small volume and light weight, it can easily enter a 60cm well - opening. This feature is particularly useful in scenarios where space is limited, such as underground pipe networks or narrow wells.

• Easy Operation: The control panel and remote - control system make the operation simple and convenient. Even operators with less experience can quickly get started and master the operation skills.

• High - quality Wear - resistant Blocks: It adopts high - quality wear - resistant rubber blocks that are thickened for enhanced wear resistance and non - slip performance. This ensures a stable conveying process and reduces the risk of cable slippage during operation.

• Suitable for Special Environments: It is well - suited for use in cable trays and narrow areas. Whether it is laying cables in complex bridge - frame structures or in confined spaces, it can perform efficiently.

Please note that product parameters are closely related to the actual working conditions. Different usage scenarios, such as cable slippage or environmental changes, may lead to differences in parameters. If there are any parameter changes, we will not notify you separately.
