Product Name

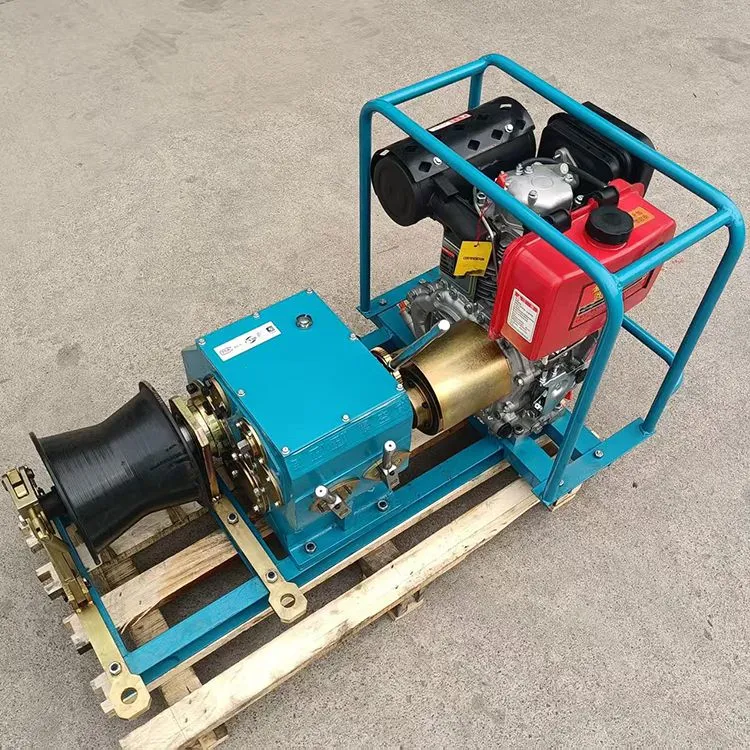

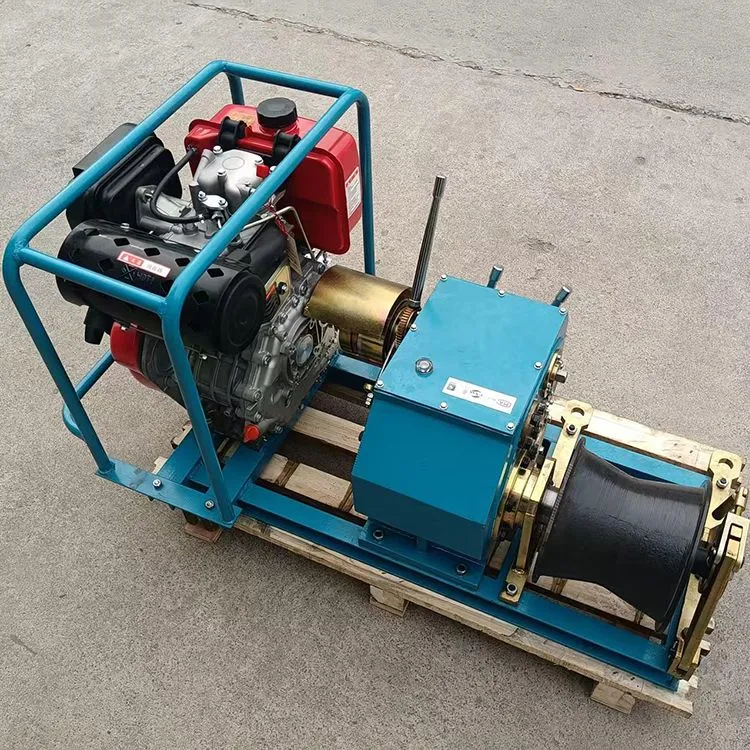

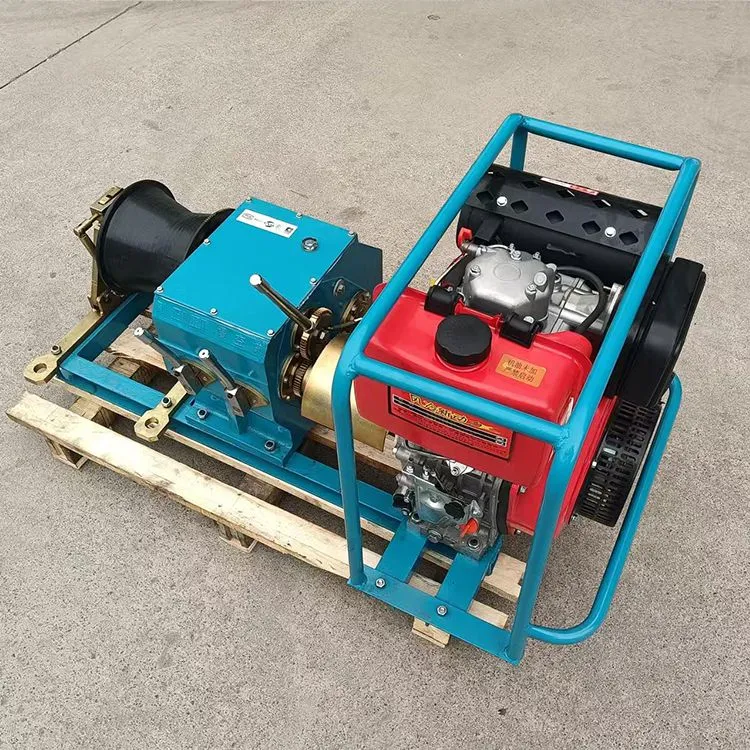

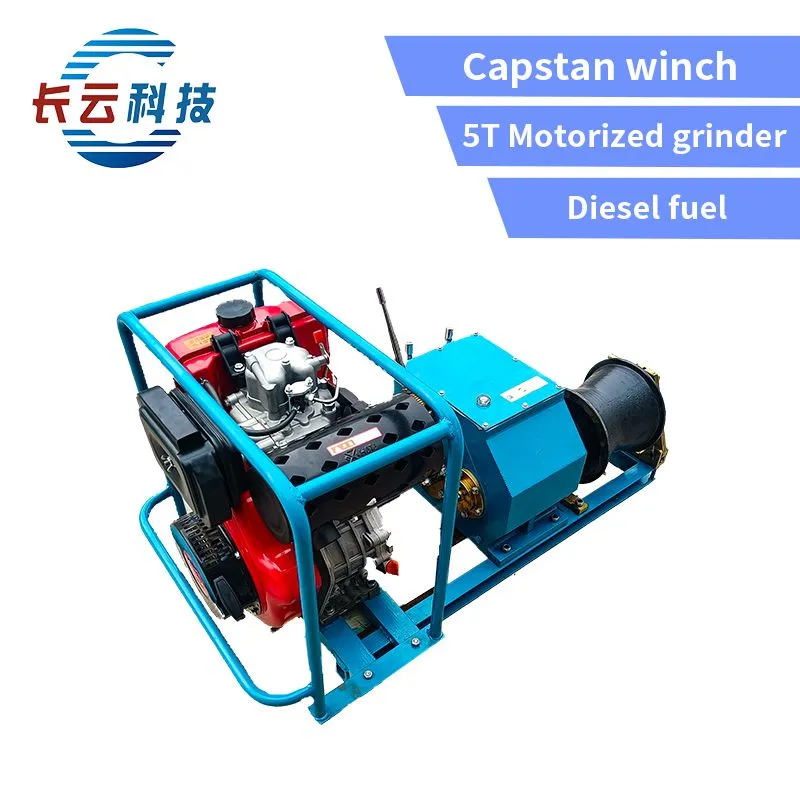

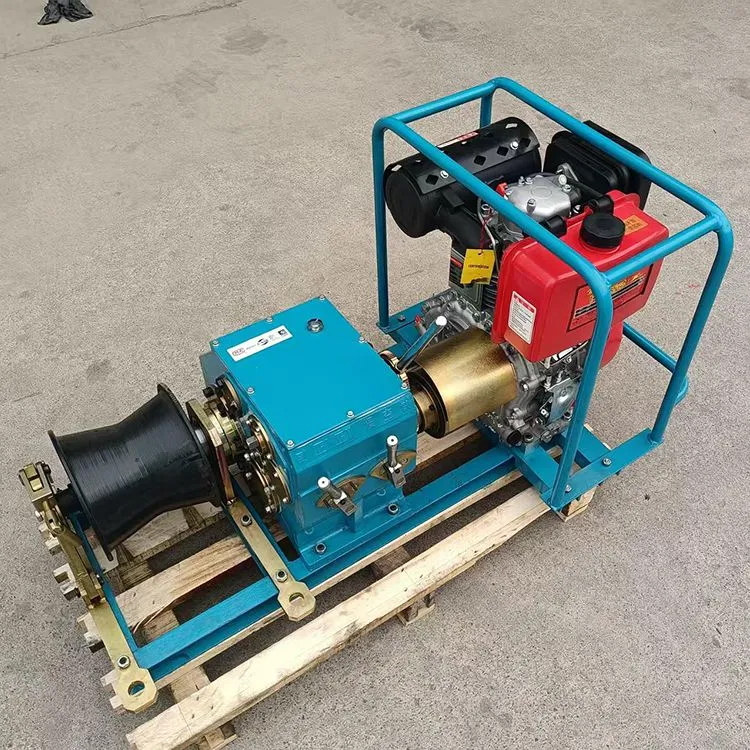

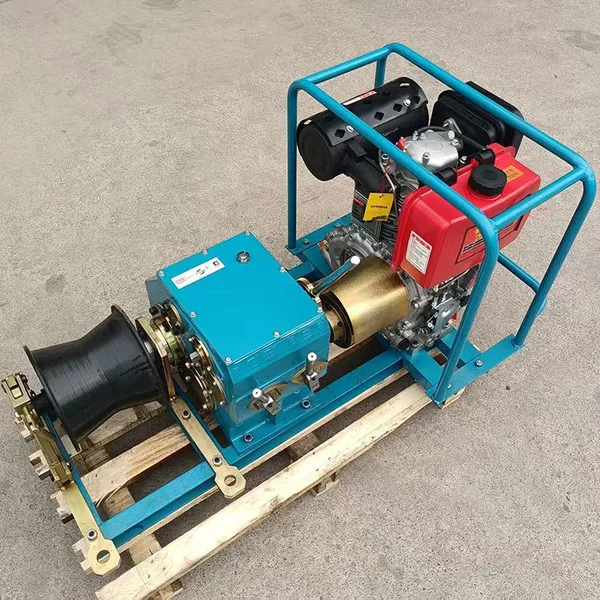

5T Diesel Winch (Shaft Drive)
Keywords
Diesel Winch, 5T Pulling Capacity, Shaft Drive System, Multi-Speed Gears, Heavy-Duty Cable Laying Machine, Portable Winch
Product Description
Overview
The 5T Diesel Winch (Shaft Drive) by Changyun Technology is a high-performance pulling device engineered for demanding applications such as cable laying, industrial recovery, and construction operations. Designed to function in environments where electrical power is inaccessible, this winch combines diesel/gasoline engine versatility with robust mechanical performance.
Key Features
Power Options: Compatible with both diesel and gasoline engines, providing flexibility for various operational needs.
Multi-Speed Gears: Equipped with four forward gears and two reverse gears, allowing precise control over traction force and speed.
Durable Construction: Features a high-strength shaft drive system, enhanced coupling mechanics, and a rigid structure ensuring safety and reliability under heavy loads.
Portability: Compact dimensions (112 × 57 × 58 cm) and a weight of approximately 165 kg make it suitable for remote or challenging sites.
Performance Specifications
Rated Pulling Force: 50 KN
Gear Traction Details:
Forward Gear 1: 50 KN at 4.5 m/min
Forward Gear 2: 26 KN at 8.5 m/min
Forward Gear 3: 20 KN at 11 m/min
Forward Gear 4: 10 KN at 23 m/min
Reverse Gear 1: 3.5 m/min (traction force not specified)
Reverse Gear 2: 9 m/min (traction force not specified)
Applications
Cable laying and pulling in telecommunications and power infrastructure projects.
Heavy-load recovery in off-road, agricultural, or industrial settings.
Construction, mining, and forestry operations requiring reliable mechanical traction.
Note
Lab data provided. Actual performance may vary based on operational conditions, improper use, or environmental factors such as slippage.
Packaging: Wooden Case
Brand: Changyun Technology
