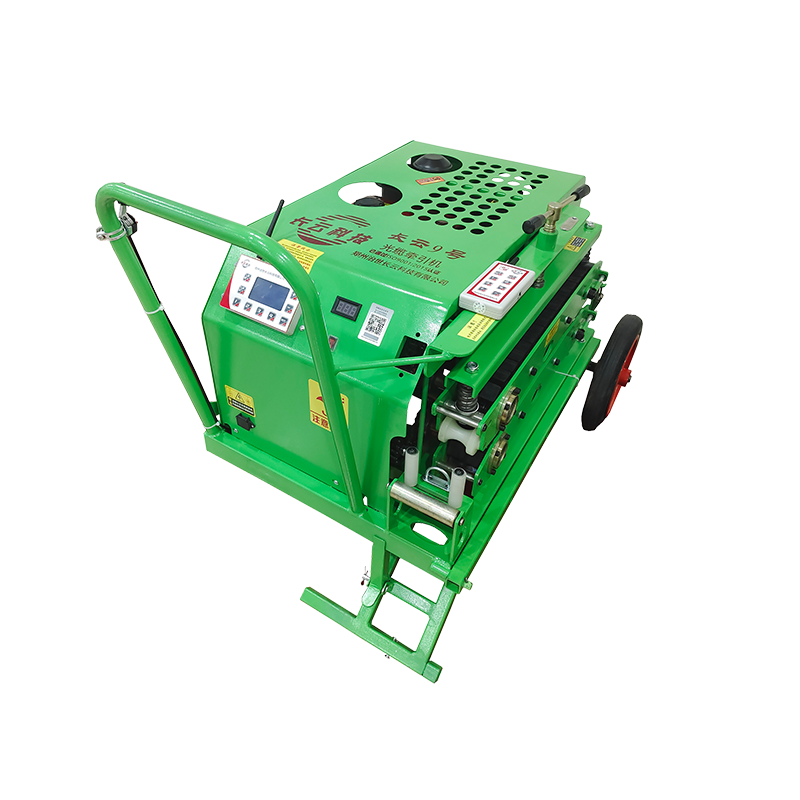

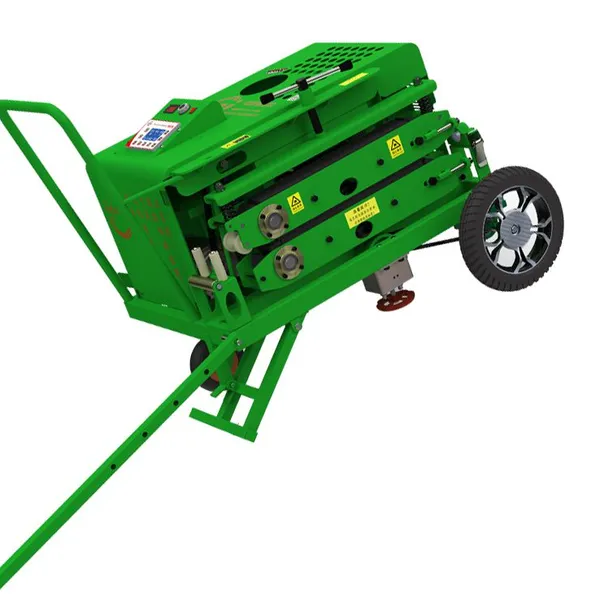

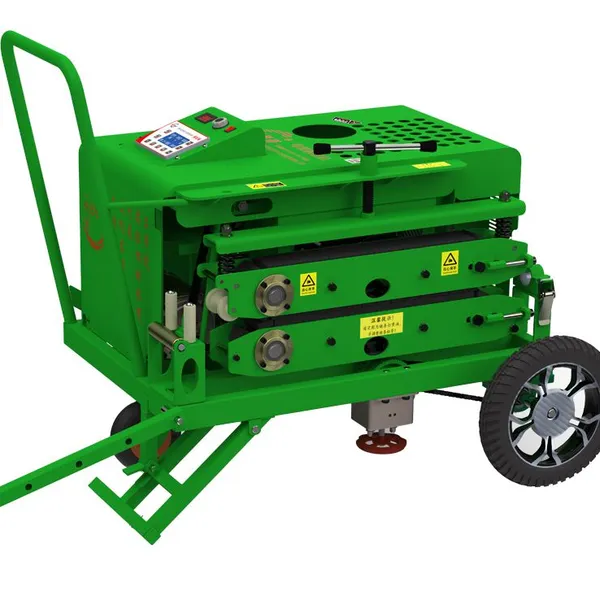

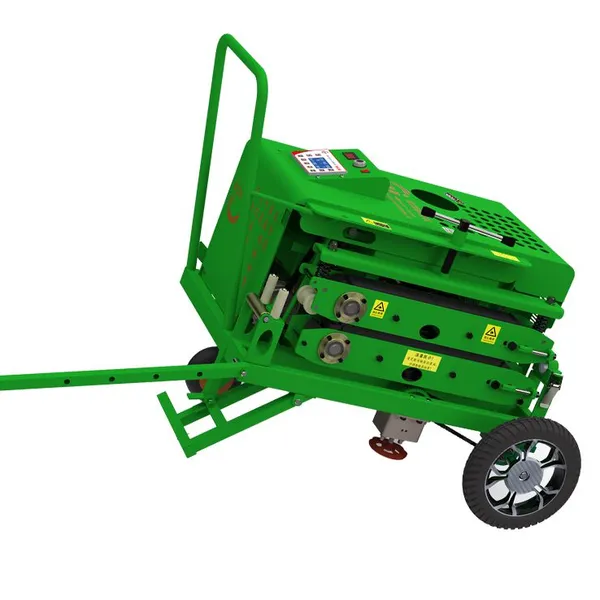

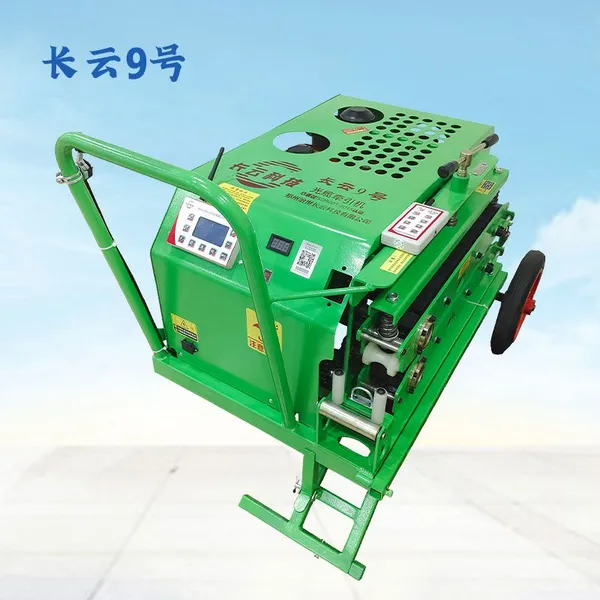

The Changyun No. 9 Optical Cable Tractor is a specialized piece of equipment that Changyun Technology has independently developed, manufactured, and provides after - sales service for.
1. Power and Starting SystemStarting Method: It features a hand - pull starting mechanism, which is simple and reliable.
Power System: Equipped with a diesel generator, this tractor offers stable power supply. The motor power is 1200W, enabling it to generate a strong output pulling force of up to 4200N. This high - power output allows it to effortlessly handle the traction of various cables ranging from 4 to 288 cores.
Control Method: The tractor supports both button and remote control operations. This dual - control mode provides users with flexible and convenient operation options, enhancing work efficiency and adaptability in different working scenarios.
Transmission Method: An enhanced conveyor belt transmission system is adopted. The transmission speed can be adjusted within the range of 0 - 80m/min, and it has a 4 - gear + stepless speed regulation function. This feature ensures that the tractor can operate at an appropriate speed according to different work requirements. Moreover, despite its large pulling force, it is designed to prevent damage to the cables during the traction process.
Clamping Method: A new quick - clamping method is employed, which significantly improves work efficiency by reducing the time required for cable clamping.
Mobility: The machine adopts a manual walking mode. The maximum opening of the conveyor belt is 5cm, making it suitable for various complex working environments. Whether it is in narrow trenches or uneven terrains, this tractor can still perform its tasks effectively.
Dimensions and Weight: It has overall dimensions of 95X78X80cm and a net weight of 97kg. The compact design makes it easy to transport and maneuver on the job site.
Performance: The Changyun No. 9 Optical Cable Tractor runs smoothly and is energy - efficient, saving fuel during operation. These performance advantages make it an excellent choice for optical cable laying projects and a reliable assistant for relevant construction teams.
