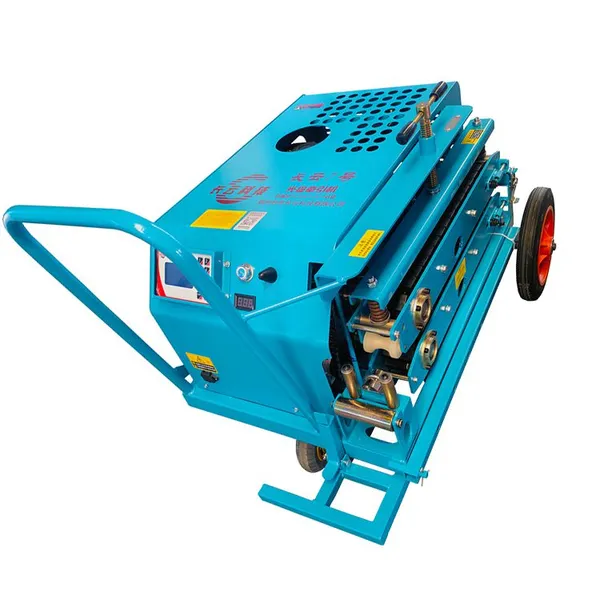

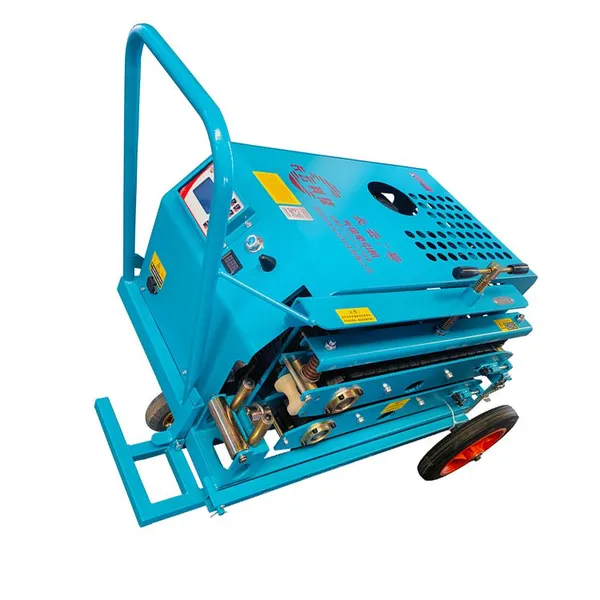

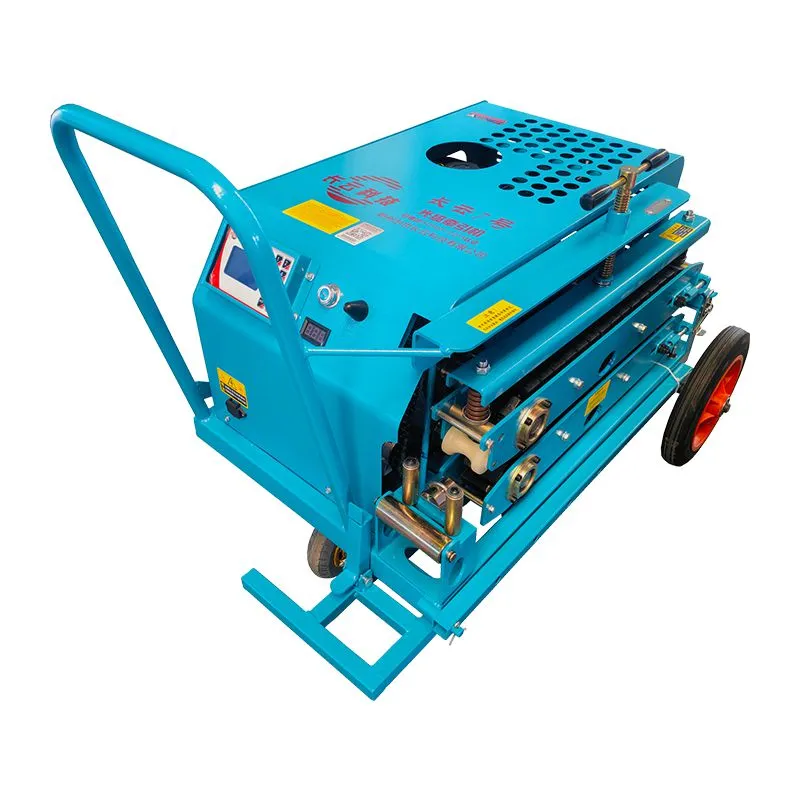

The Changyun No.7 Optical Cable Tractor launched by Changyun Technology is a highly efficient device specially designed for optical cable laying projects.
Powerful Power: It uses a gasoline generator as the power system, with an output pulling force of up to 4200N. It can easily handle the traction of various optical cables with 4 - 288 cores. Even in complex terrains and situations with large resistance, it can operate stably to ensure the construction progress.
Convenient Operation: It has two starting modes, electric start and hand - pull start. Operators can flexibly choose according to the actual situation, which is simple and convenient. In terms of control methods, it combines a control panel and remote - control, allowing operators to easily control the equipment operation from different working positions, greatly improving the flexibility and convenience of operation.
Efficient and Safe Transmission: It adopts an enhanced version of the belt - type transmission method. The maximum opening of the belt can reach 5CM, and the new quick - clamping device can firmly fix the optical cable to prevent sliding. The transmission speed ranges from 0 - 80m/min, and there are 4 speed adjustment gears, which can be precisely adjusted according to the actual construction needs to achieve efficient cable - laying. At the same time, this transmission method has a large pulling force but does not damage the cable, effectively protecting the integrity of the optical cable.
Flexible Movement: The machine adopts a hand - pushing walking method, is small and light, with a net weight of only 115kg and an overall size of 95×60×80cm. It can move flexibly in narrow construction environments and is easy to carry and move.
Multi - functional Expansion: This equipment can be optionally equipped with an inverter to provide power for other tools, solving the problem of insufficient power supply at the construction site; it can also be optionally equipped with a transformer to achieve silent construction, reducing the impact on the surrounding environment, especially suitable for noise - sensitive areas.
With its stable performance, convenient operation and diverse functions, the Changyun No.7 Optical Cable Tractor has become a powerful assistant in optical cable laying projects, bringing efficiency and convenience to your construction.
