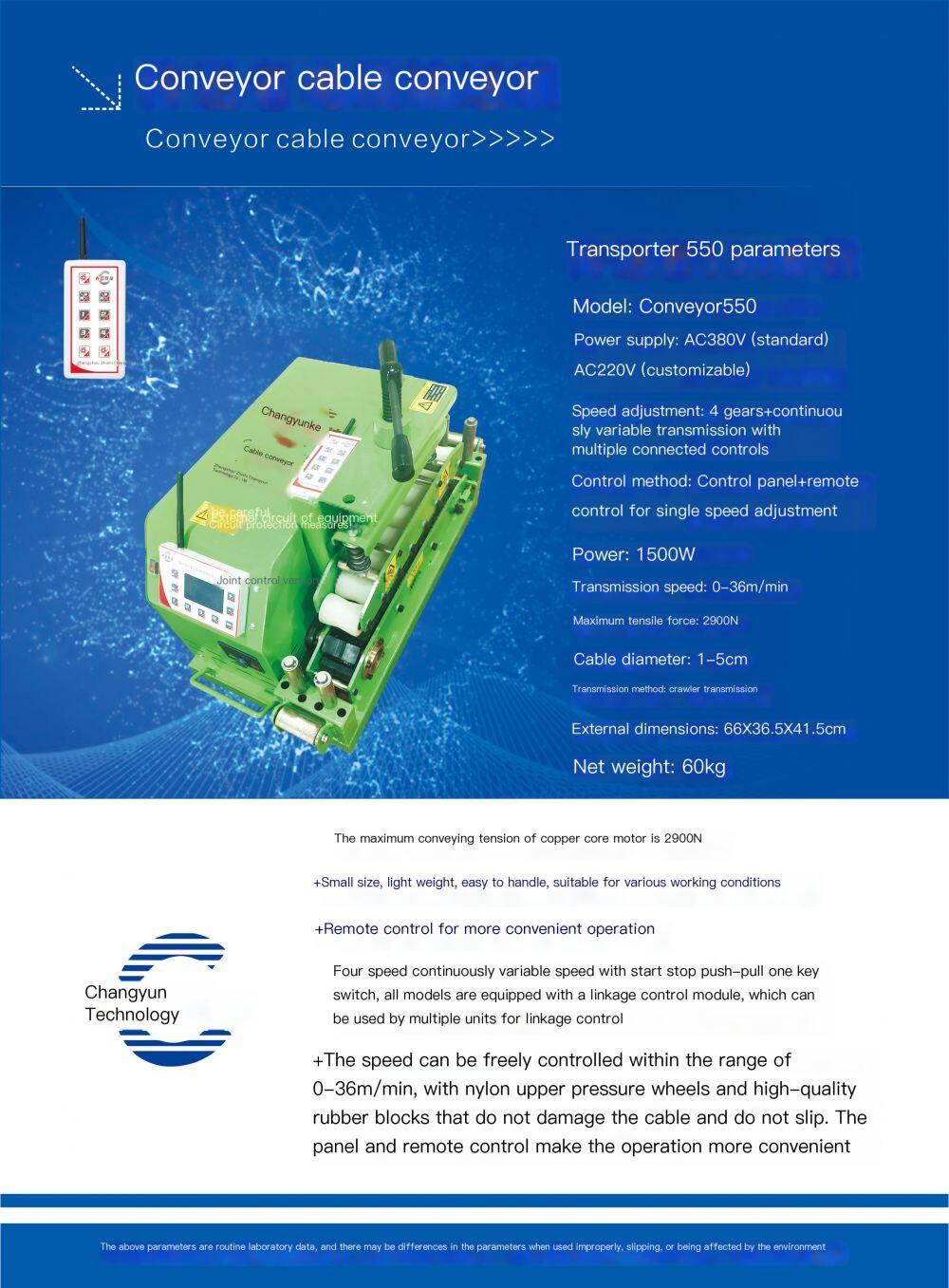

Conveyor Cable Conveyor - Conveyor5501. Overview

The Conveyor550 cable conveyor is a high - performance equipment designed for efficient cable laying and conveying tasks. It combines advanced technology with practical design to meet various industrial and engineering needs.

2. Key Parameters

• Model: Conveyor550

• Power Supply:

• Standard: AC380V

• Customizable: AC220V

• Speed Regulation: 4 - gear + stepless speed regulation, enabling flexible adjustment according to different working requirements.

• Multi - unit Linkage Control: Supports multi - unit linkage operation, which is very suitable for large - scale cable laying projects.

• Control Method: Equipped with a control panel and remote control, allowing for both on - site manual operation and remote wireless control for greater convenience and flexibility.

• Single - unit Speed Fine - tuning: Allows precise speed adjustment for a single machine to adapt to specific working conditions.

• Power: 1500W

• Conveying Speed: 0 - 36m/min, providing a wide range of speed options to meet different laying speeds.

• Maximum Tensile Force: The copper - core motor can provide a maximum conveying tensile force of 2900N, ensuring the stable conveying of cables.

• Cable Diameter: Suitable for cables with a diameter of 1 - 5cm.

• Conveying Method: Belt conveyor, which can ensure a smooth and stable conveying process.

• External Dimensions: 66X36.5X41.5cm

• Net Weight: 60kg

3. Product Features

• High - performance Motor: The copper - core motor has a maximum conveying tensile force of 2900N, which can effectively drive cables of different specifications and lengths.

• Compact and Portable: With a small volume and light weight, it is easy to move and can be adapted to various working environments, such as narrow spaces or complex terrains.

• Remote Control Operation: The remote control function greatly improves the convenience of operation. Operators can control the machine from a distance, reducing the need for on - site manual intervention and improving work efficiency and safety.

• Flexible Speed Adjustment: It has four gears and stepless speed regulation. Users can start, stop, and adjust the speed at will according to the actual situation. The one - key push - pull switching design makes the operation more convenient.

• Multi - unit Linkage: All models are equipped with a linkage module, enabling multiple machines to work in coordination. This is especially useful for large - scale cable laying projects, which can improve work efficiency and ensure the consistency of cable laying.

• Accurate Speed Control: In the range of 0 - 36m/min, the speed can be freely controlled, allowing for precise control of the cable laying process to meet different project requirements.

• Cable Protection: The nylon upper pressure wheel and high - quality rubber block combination ensure that the cable is not damaged during the conveying process and does not slip, effectively protecting the integrity of the cable.

4. Application Scenarios

The Conveyor550 cable conveyor is widely used in power engineering, communication engineering, urban construction, and other fields. Whether it is for new cable laying, cable replacement, or maintenance work, this equipment can play an important role in improving work efficiency and ensuring the quality of cable laying.

5. Note

The above parameters are routine data obtained in the laboratory. When the usage method is improper, slipping occurs, or it is affected by the environment, there may be differences in the parameters. Please refer to the actual situation during use.
