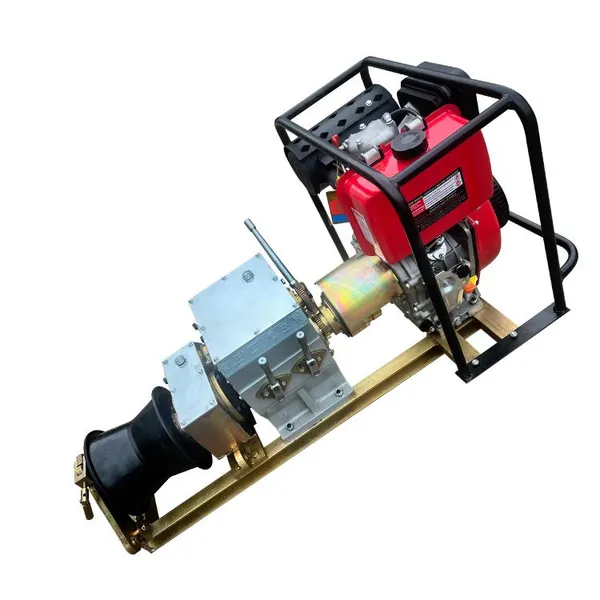

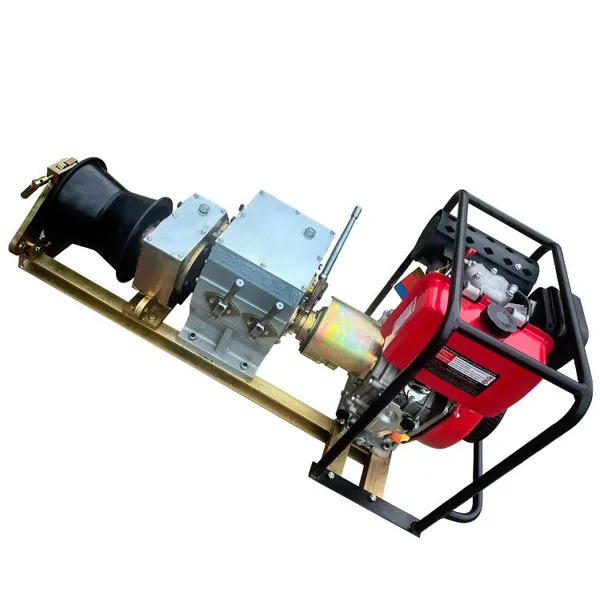

8-Ton High-Traction Diesel Cable Winch Cable Pulling Machine for Electrical Engineering

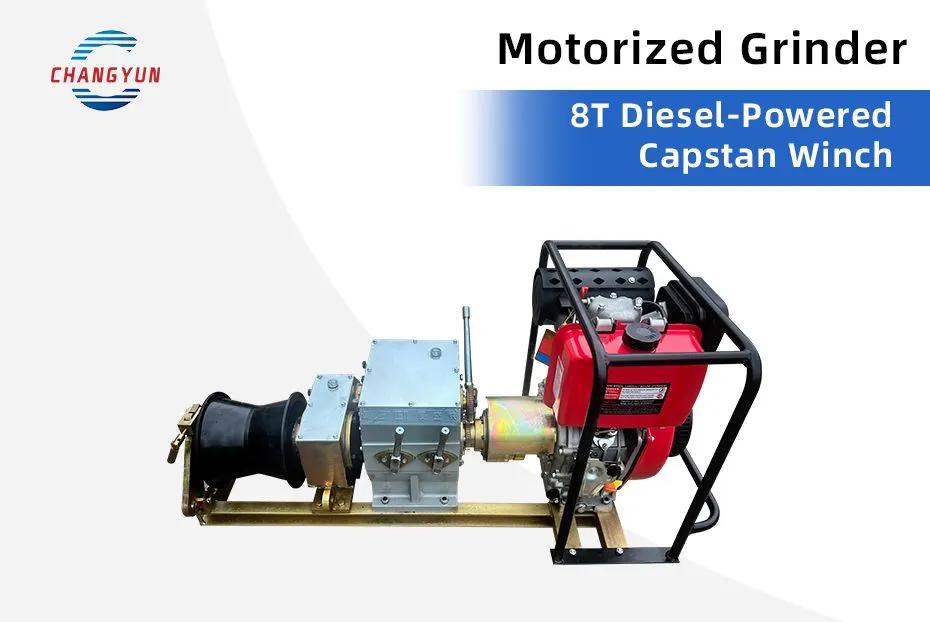

Motorized Grinder - 8T Diesel Winch

Brand: Changyun Technology

Product Overview

This 8T diesel winch is a high - performance motorized grinder designed for various heavy - duty applications. It is a reliable and efficient tool for tasks such as cable pulling, towing, and other operations that require significant pulling force.

Key Specifications

• Model: 8T Diesel Winch (Shaft - drive)

• Rated Pulling Force: 80KN

• Overall Dimensions: 122 * 56 * 60 cm

• Product Weight: Approximately 180 kg

Performance Parameters

The winch offers different gear positions with corresponding maximum pulling forces and pulling speeds. In forward gear 1, it has a maximum pulling force of 80KN and a pulling speed of 4.5 m/min. Forward gear 2 provides a maximum pulling force of 50KN at a speed of 8.5 m/min. Forward gear 3 delivers 28KN of pulling force while moving at 15 m/min, and forward gear 4 gives 15KN of force with a speed of 28 m/min. For reverse operations, reverse gear 1 has a pulling speed of 9 m/min and reverse gear 2 operates at 11 m/min, though there is no specified maximum pulling force for the reverse gears.

Product Features

• Power Options: It comes with optional gasoline and diesel power, which makes it adaptable to different working environments. This feature is particularly beneficial for construction work in mountainous and field areas.

• Multi - gear Adjustment: The multi - gear design allows for convenient and quick operation. Users can adjust the pulling speed and force according to the specific requirements of the task at hand.

• Reliable Structure: The winch is equipped with high - strength coupling devices, ensuring more reliable operation and stronger torque. This design guarantees safety during use.

Notes

The product parameters are closely related to the working conditions. Variations in working conditions, such as cable slippage or environmental changes, may lead to differences in the parameters. In case of any parameter changes, separate notification will not be provided. The picture is for reference only, and the actual product shall prevail.
