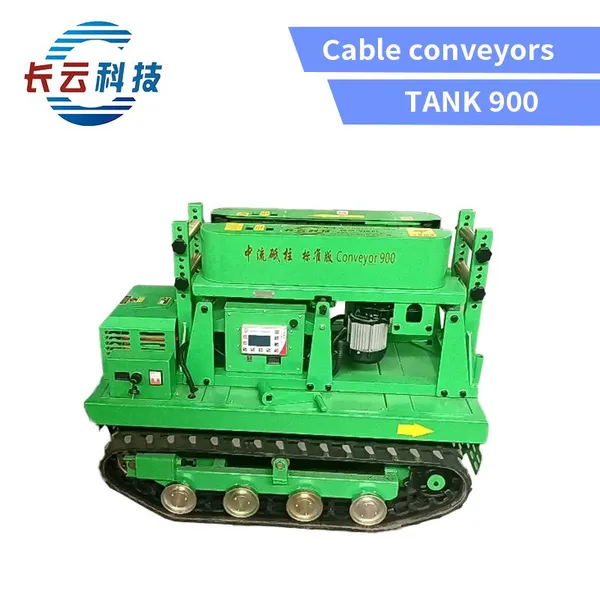

Changyun Technology Tank900 Cable Conveyor Cable Feeder Cable Layer

The Crawler Cable Conveyor - Tank 900 is a specialized piece of equipment designed for the efficient transportation of cables. Its unique design combines the functions of cable - pulling and movement in one integrated unit, making it highly suitable for a wide range of applications, especially in complex working conditions.

• Organic Combination of Cable - Pulling and Movement: This machine seamlessly integrates the functions of pulling cables and moving itself. It can adapt to different terrains and working scenarios, providing a comprehensive solution for cable - laying tasks.

• Mobility in Complex Environments: Thanks to its crawler - based design, the Tank 900 can move flexibly on various terrains such as muddy ground, uneven surfaces, and soft soil. This makes it ideal for use in outdoor construction sites, mines, and other areas with difficult access.

• Dual - Machine Single - Control: The system features a dual - machine single - control mechanism, which allows for easy switching between different operating modes. This not only improves work efficiency but also enhances the practicality of the equipment.

• Powerful Performance: With a generator power of 4kW, the Tank 900 has sufficient power to pull cables with a diameter ranging from 2cm to 24cm. It can generate a pulling force of up to 6000N, enabling it to handle heavy - duty cable - laying tasks with ease. Additionally, it has excellent climbing ability, making it capable of handling slopes and other challenging terrains.

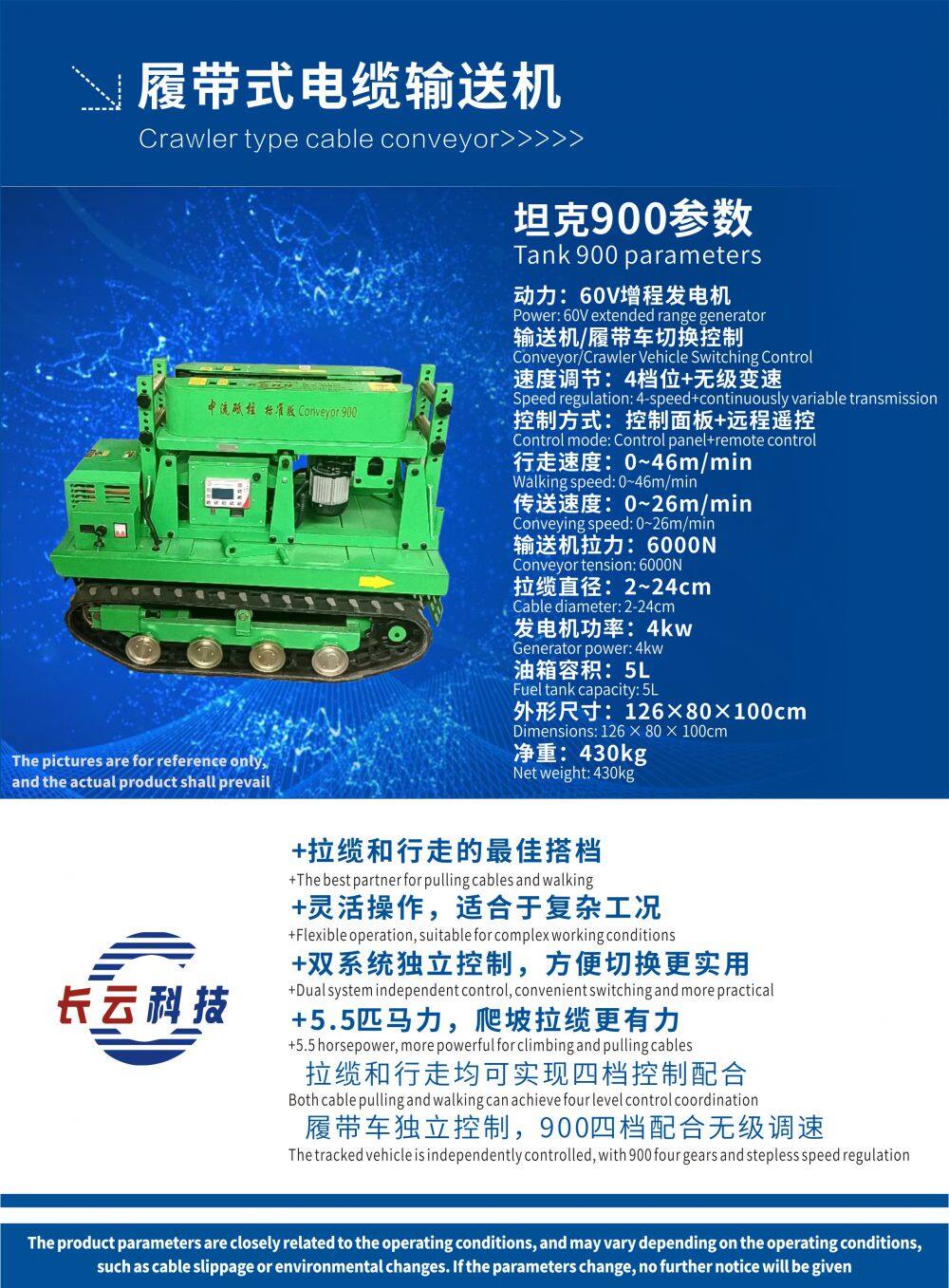

• Model: Tank 900

• Power Source: Generator

• Type: Conveyor/ Crawler Vehicle

• Speed Regulation: 4 gear positions + stepless speed regulation

• Control Method: Control panel + remote control

• Travel Speed: 0 - 46m/min

• Conveyor Speed: 0 - 26m/min

• Conveyor Towing Force: 6000N

• Cable Diameter: 2 - 24cm

• Generator Power: 4kW

• Fuel Tank Capacity: 5L

• Overall Dimensions: 126X80X100cm

• Net Weight: 430kg

The Tank 900 is widely applicable in industries such as power engineering, telecommunications, mining, and municipal construction. It can be used for underground cable - laying, overhead cable - installation, and other related tasks. Whether it is in urban areas or remote construction sites, this equipment can play a crucial role in ensuring the smooth progress of cable - laying projects.

The above parameters are routine laboratory data. In case of improper use, slippage, or environmental influences, the parameters may vary. Please refer to the actual situation during use.
