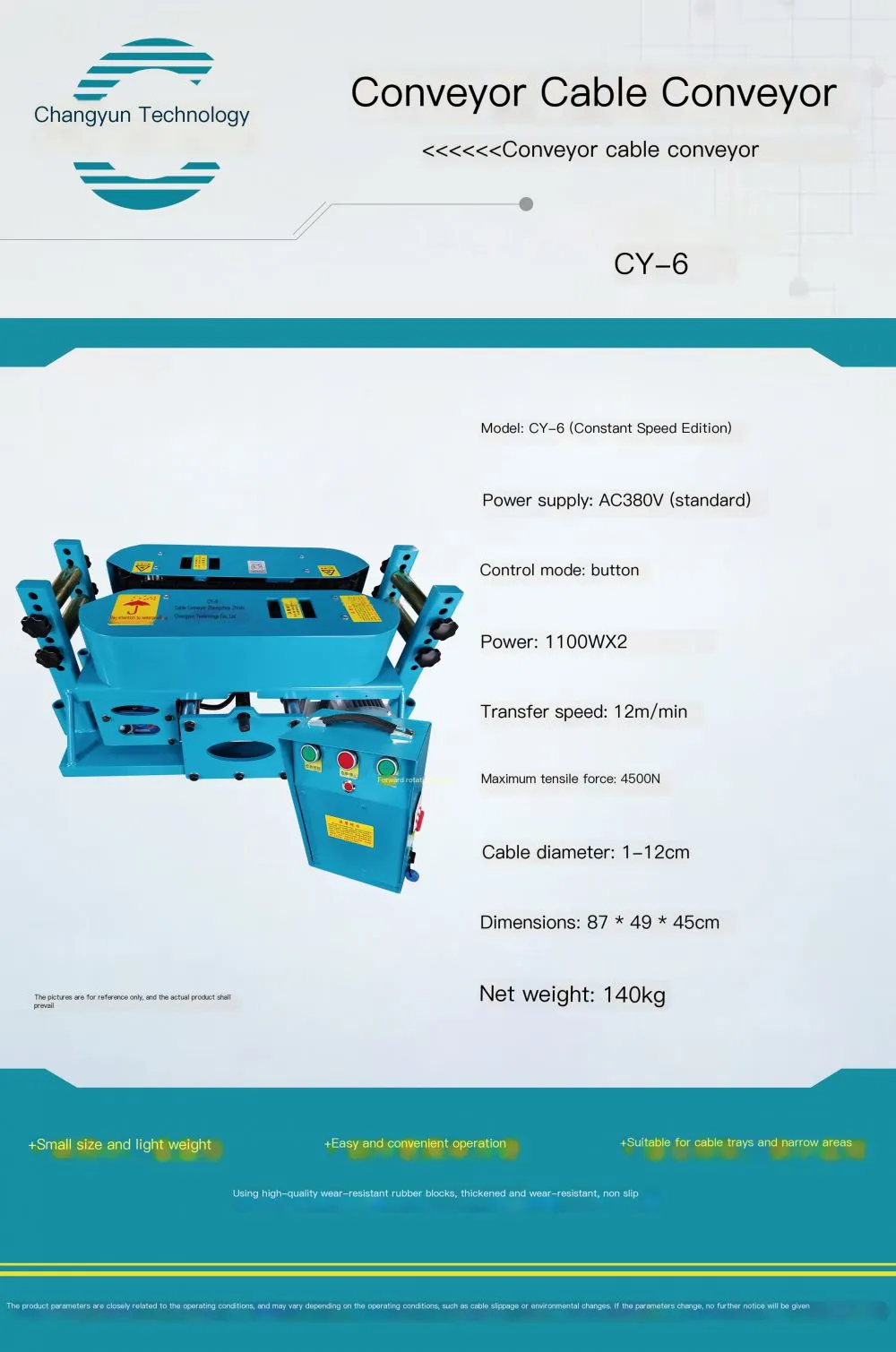

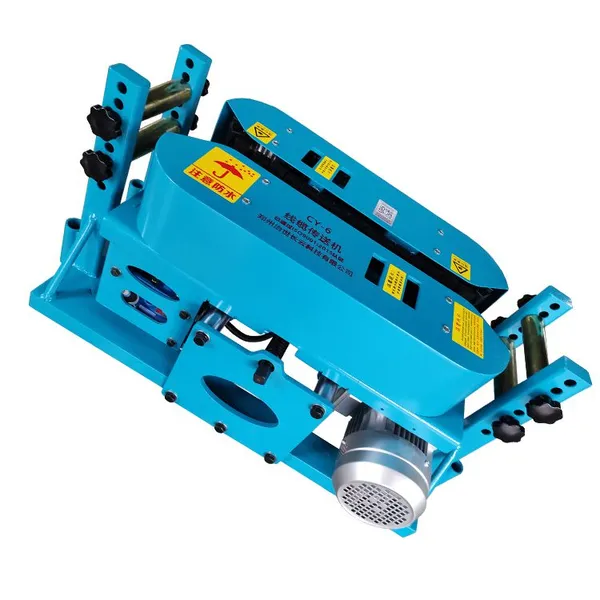

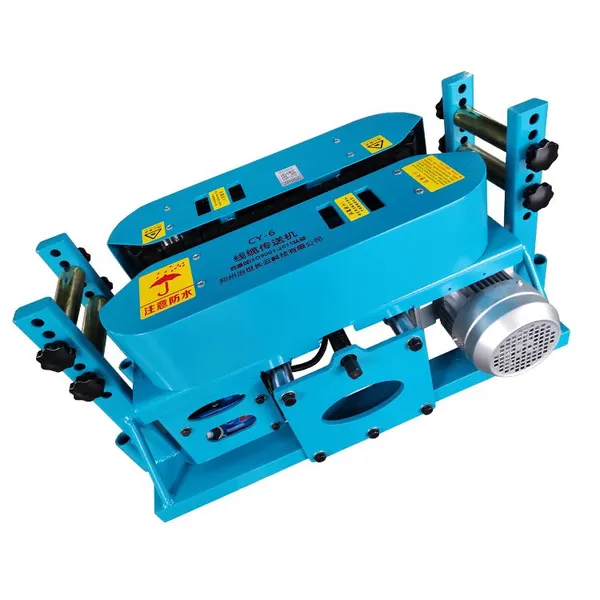

Conveyor Cable Conveyor - CY - 6 by Changyun Technology
Brand: Changyun Technology
Model: CY - 6 (Constant - speed version)
The Conveyor Cable Conveyor - CY - 6 is a high - performance cable handling machine designed for various cable laying and conveying tasks. It combines efficiency, ease of use, and durability to meet the diverse needs of industrial and construction applications.
1. Power Supply
The machine operates on a standard AC 380V power supply, ensuring stable and reliable power for continuous operation in most industrial environments.
2. Control Method

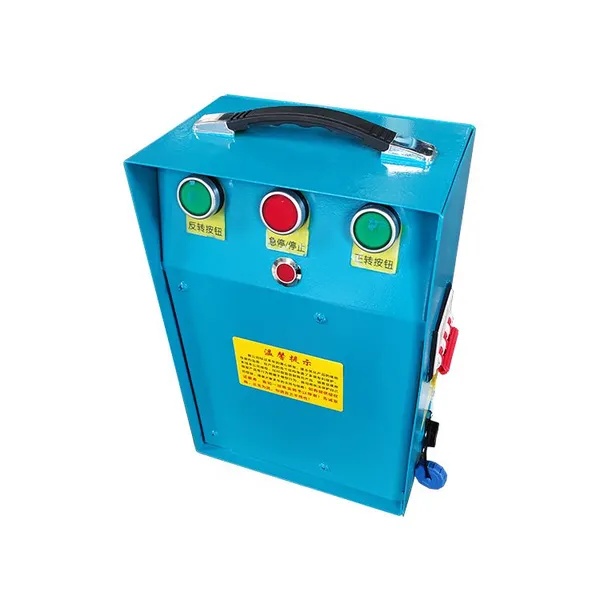

It features a simple button - based control system. This intuitive control method allows operators to start, stop, and adjust the machine's functions with ease, reducing the learning curve and improving work efficiency.
3. Power and Performance
Power: Equipped with two 1100W motors, providing a total power of 2200W. This powerful configuration enables the machine to handle heavy - duty cable conveying tasks effortlessly.
Conveying Speed: The conveying speed is set at 12m/min, which strikes a balance between high - speed operation and stability, ensuring smooth and accurate cable delivery.
Maximum Tensile Force: Capable of exerting a maximum tensile force of 4500N, it can effectively pull large - diameter and heavy cables without slipping or stalling.
4. Cable Compatibility
It is suitable for cables with a diameter ranging from 1cm to 12cm. Whether it's small - diameter control cables or large - diameter power cables, this machine can handle them with precision.
5. Physical Dimensions and Weight
Dimensions: The overall dimensions of the machine are 87cm in length, 49cm in width, and 45cm in height. Its compact design makes it easy to transport and install in different workspaces.
Net Weight: Weighing 140kg, it is relatively lightweight compared to its powerful performance. This feature is especially beneficial for applications in confined spaces or when frequent relocation of the machine is required.
6. Advantages
Compact and Lightweight: The small volume and light weight of the CY - 6 make it highly portable. It can be easily moved to different work locations within a construction site or an industrial plant, saving time and effort in cable laying operations.
Easy Operation: With its simple button - controlled interface, even operators with limited experience can quickly master the operation of the machine. This reduces the need for extensive training and minimizes the risk of operational errors.
Suitable for Confined Spaces: Its compact size and powerful performance make it an ideal choice for use in bridge racks, narrow areas, and other confined spaces where traditional cable laying methods may be difficult to implement.
7. Material Quality
The machine is made with high - quality wear - resistant rubber blocks. These rubber blocks are thickened to enhance wear resistance and provide reliable anti - slip performance. This ensures stable contact with the cables during the conveying process, reducing the risk of cable damage and improving overall work efficiency.
It should be noted that the product parameters are closely related to the actual working conditions. For example, factors such as cable slippage or environmental changes may cause some differences in the parameters. If there are any parameter changes, we will not notify you separately. However, we are committed to providing you with a high - quality cable conveying solution to meet your specific needs.
