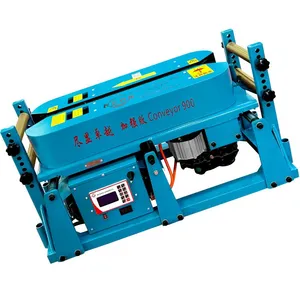

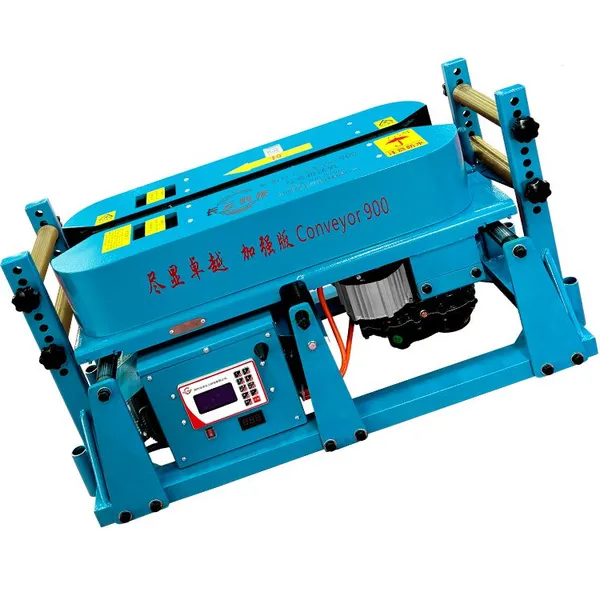

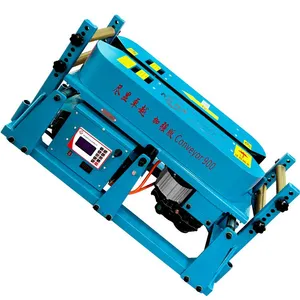

Changyun Technology Enhanced900 Wire and Cable Conveyor Crawler Cable Conveyor Machine for Underground Cable Hauling

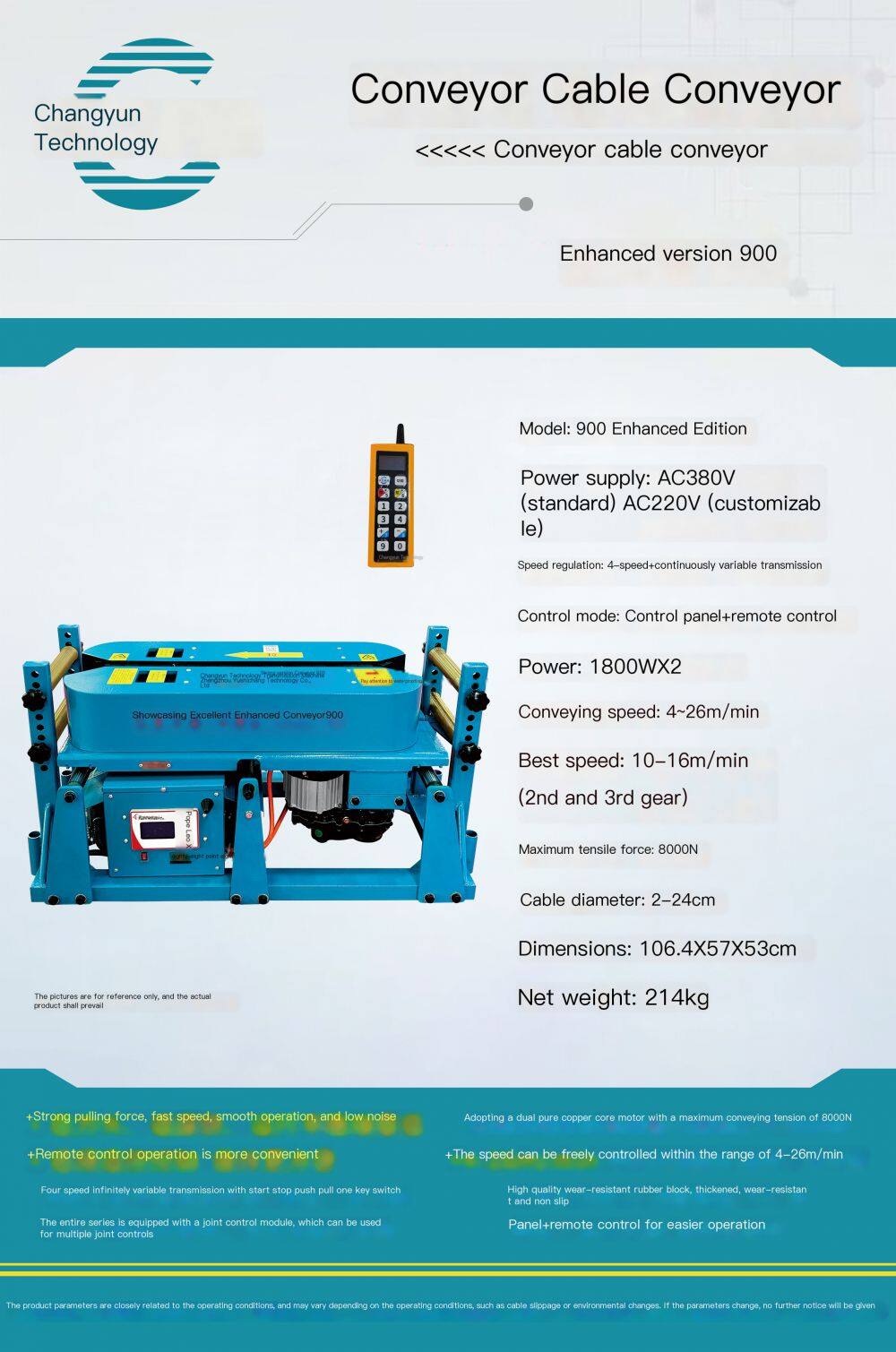

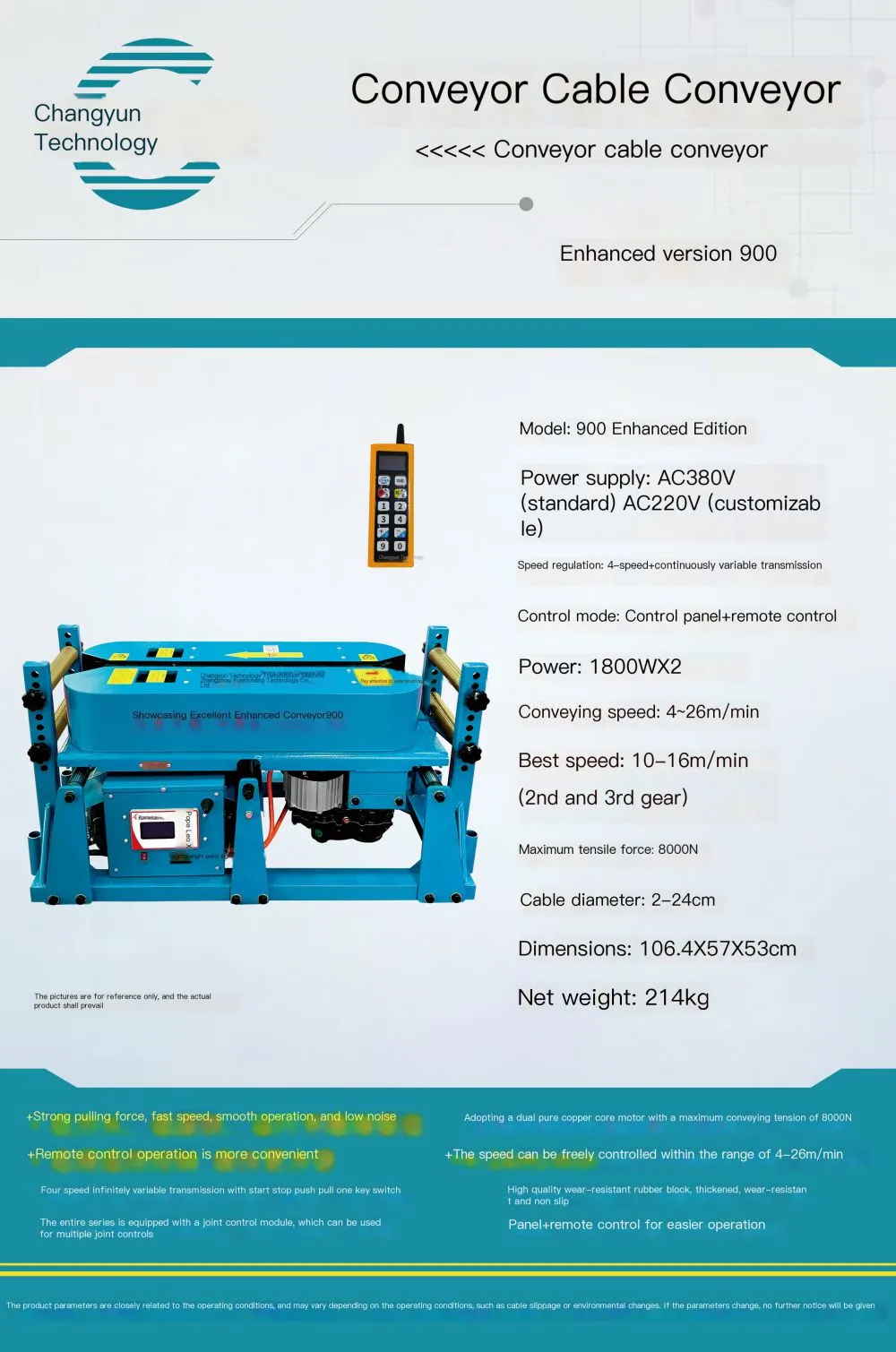

The Conveyor Cable Conveyor - Enhanced Version 900 is a high - performance cable conveying equipment developed by Changyun Technology. It is designed to meet the needs of various cable - laying projects with its excellent performance and user - friendly design.

1. Power Supply

• Standard: AC380V, which provides sufficient power for stable operation.

• Optional: AC220V can be customized according to different on - site power supply conditions, showing great flexibility.

2. Speed Regulation

• It offers 4 gear positions and stepless speed regulation. The conveying speed can be adjusted within the range of 4 - 26m/min. The best working speed is recommended to be between 10 - 16m/min (gear 2 and gear 3), which can ensure efficient and stable cable conveying.

3. Control Method

• Equipped with both a control panel and a remote control. The control panel allows for on - site precise operation, while the remote control provides greater convenience, enabling operators to adjust parameters and control the machine from a distance, especially in large - scale cable - laying sites.

4. Power and Performance

• Power: The machine has a power of 1800W×2, ensuring strong driving force.

• Maximum Traction Force: It can reach up to 8000N, which is suitable for conveying cables with different diameters and weights. The cable diameter range it can handle is from 2cm to 24cm.

• Transmission Speed: In the 4 - 26m/min range, the speed can be freely controlled, meeting different construction requirements.

5. Physical Dimensions and Weight

• External Dimensions: The overall size is 106.4X57X53cm, which is relatively compact and easy to install and move in different working environments.

• Net Weight: It weighs 214kg, and its reasonable weight distribution ensures stability during operation.

1. High Traction and Fast Speed

• With the adoption of dual pure copper core motors, it has a maximum conveying traction force of 8000N. This powerful driving force enables it to convey large - diameter and heavy cables quickly and efficiently, greatly improving construction efficiency.

2. Smooth Operation and Low Noise

• The machine runs smoothly with low noise during operation. This not only provides a comfortable working environment for operators but also reduces noise pollution in the construction site.

3. Remote Control Convenience

• The remote control function allows operators to adjust the machine's parameters and start/stop operations without having to be close to the machine all the time. This is especially useful in complex and large - scale cable - laying projects, where operators need to control multiple machines simultaneously or operate in relatively remote areas.

4. Flexible Speed Adjustment

• The four - gear stepless speed regulation and the ability to freely control the speed within the 4 - 26m/min range give operators great flexibility. They can adjust the speed according to the actual situation of the cable and the construction requirements to achieve the best conveying effect.

5. Easy Operation and Maintenance

• The control panel and remote control are designed to be user - friendly, making it easy for operators to get started. In addition, the machine is equipped with a one - key start/stop and gear - shifting function, as well as a push - pull one - key switching mechanism, which simplifies the operation process.

• The whole series is equipped with a joint control module, which allows multiple machines to be controlled in a coordinated manner, further improving work efficiency.

6. Durable Construction

• High - quality wear - resistant rubber blocks are used, which are thickened and wear - resistant, and will not slip during operation. This ensures the long - term stable operation of the machine and reduces maintenance costs.

The Conveyor Cable Conveyor - Enhanced Version 900 is widely applicable to various fields such as power engineering, communication engineering, urban construction, and industrial park construction. Whether it is laying high - voltage power cables, communication cables, or other types of cables, this machine can play an important role in improving construction efficiency and quality.

Please note that the product parameters are related to the actual working conditions. Different working conditions, such as cable slippage or environmental changes, may cause differences in parameters. If there are any parameter changes, we will not notify you separately.
