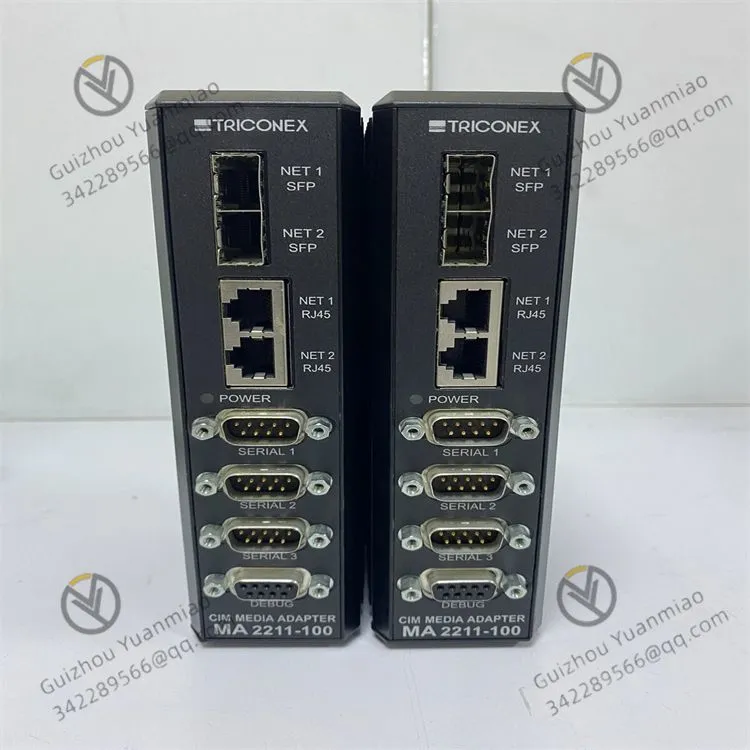

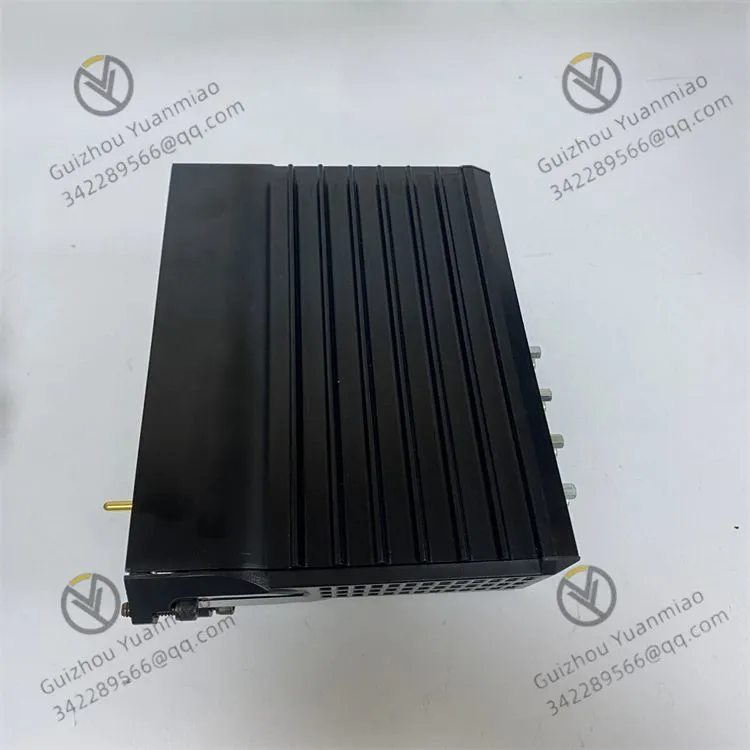

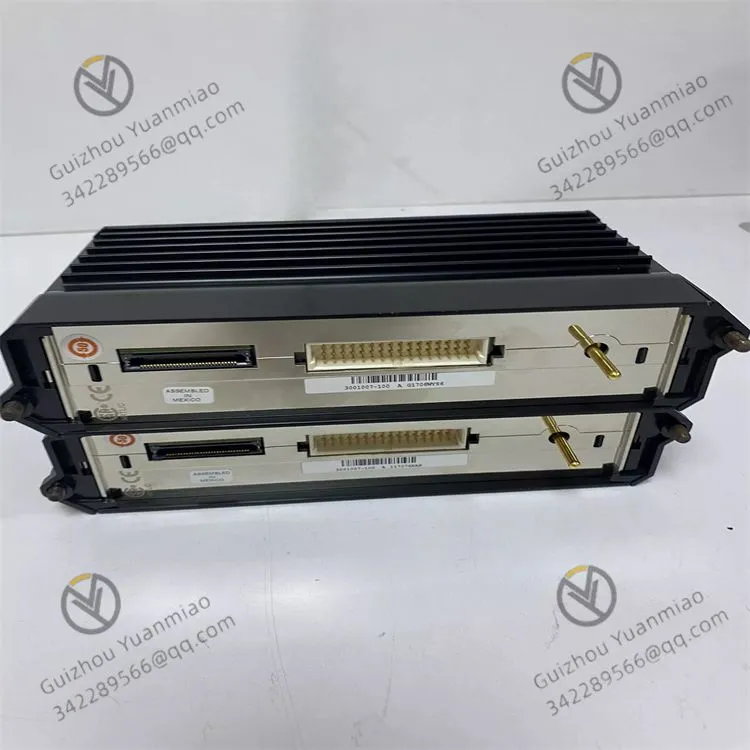

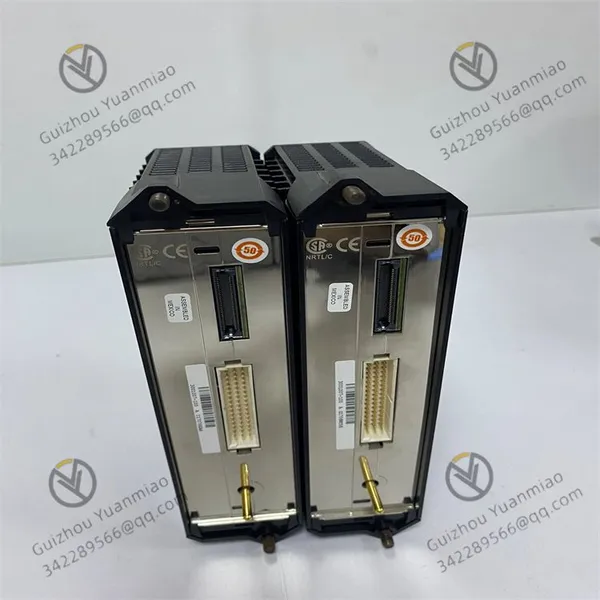

Help CenterTRICONEX MA2211-100 Digital Input Module
Related Products
-
TRICONEX 8310 Power ModuleNegotiableMOQ: 1 Piece -
Triconex 3624 Input/output ModuleNegotiableMOQ: 1 Piece
-
Triconex 4201 RXM Remote Extender ModuleNegotiableMOQ: 1 Piece
-
Triconex RXM4200 Remote Expansion ModuleNegotiableMOQ: 1 Piece
-
TRICONEX 3504E Triple Redundant Analog Input CardNegotiableMOQ: 1 Piece
Digital input function: It features multiple digital input channels, which can be connected to external digital signals. It can monitor the status of digital switches, buttons, sensors or other digital signal sources, and convert the status information into digital signals for processing and decision-making by the control system.
Electrical isolation: To prevent external electrical interference from affecting the system, this module usually has an electrical isolation function, which helps to improve the reliability of the system.
High availability: TRICONEX products are typically designed for high availability applications to ensure the continuous operation and safety of industrial processes. This module may have redundant functions to prevent single point of failure.
Safety: The product is mainly used in industrial safety systems, aiming to ensure the safety of the production process. Modules usually have built-in safety functions that can be used to monitor key system parameters and perform emergency shutdown operations.
Communication interface: Equipped with a communication interface, the module can be integrated with other control systems, programmable logic controllers (PLCS), or distributed control systems (DCS) for data transmission and monitoring. Specifically, it may be constructed using the proprietary PCIE communication standard to achieve seamless communication between the module and compatible systems.
Measurement function: In addition to the basic digital input function, it can also be used to measure specific physical quantities such as temperature, pressure, flow rate, humidity, and liquid level. It usually features high precision and reliability to ensure the accuracy of the measurement data.
Multi-channel input/output function: It can be connected to different types of sensors, actuators or other devices, and may support the input and output of digital and analog signals, with high-speed data transmission capability.
Real-time performance: Featuring low latency and high real-time performance, it is suitable for application scenarios that require precise control and monitoring, ensuring accurate control and data collection.
Configurability: Parameters can be configured according to different application requirements, and users can make appropriate Settings based on their own needs.
Application case
In the field of oil and chemical engineering: In large oil refineries, the TRICONEX MA2211-100 module can be used to monitor and control the status of various key equipment. For instance, the operational status of pumps, valves and other equipment in the crude oil distillation unit is collected in digital form. Signals such as the start and stop status of pumps and the opening and closing status of valves are transmitted to the control system. Once an abnormal state occurs, an alarm can be triggered in time and corresponding measures can be taken to ensure the safe and stable operation of the oil refining process. In addition, in the ethylene cracking unit, this module can also be used to process the safety interlock signals of the cracking furnace, ensuring the safety of the cracking furnace under complex working conditions.
In the field of power: In thermal power plants, the MA2211-100 module can be used in the protection system of steam turbines. It can receive digital signals such as rotational speed, vibration and displacement from various parts of the steam turbine. When these parameters exceed the set threshold, the module quickly transmits the signals to the tripping logic system to achieve emergency tripping protection of the steam turbine and prevent equipment damage. In substations, this module can be used to monitor the opening and closing status of switchgear and the action signals of various protection relays, providing accurate data support for the automatic monitoring and operation and maintenance management of substations.
In the field of natural gas: In a certain natural gas processing plant, the TRICONEX safety system is combined with ORB to build a complete solution. The relevant modules of TRICONEX include the MA2211-100 module, which is used to collect digital signals from on-site equipment, such as the operating status signals of compressors and the on-off signals of pipeline valves, etc. In combination with the redundant OPC server, the availability of event sequence (SOE) data for the OPC A&E client application has been increased, and the performance of the factory safety system has been improved.
In the field of steel and metallurgy: During the blast furnace ironmaking process in steel plants, the MA2211-100 module can be used to monitor the digital signals corresponding to various key parameters of the blast furnace, such as the top pressure of the furnace and the switch signals of the furnace temperature detection points. Accurately transmit these signals to the blast furnace automation control system so that the operators can grasp the operating status of the blast furnace in real time, adjust the production parameters promptly, ensure the stable operation of the blast furnace, and at the same time, quickly activate the safety protection measures in case of abnormal situations to avoid accidents. In addition, in the tilting system of the steelmaking converter, the limit switch signal of the converter tilting Angle can be monitored through this module to ensure the safety and accuracy of the converter tilting operation.
