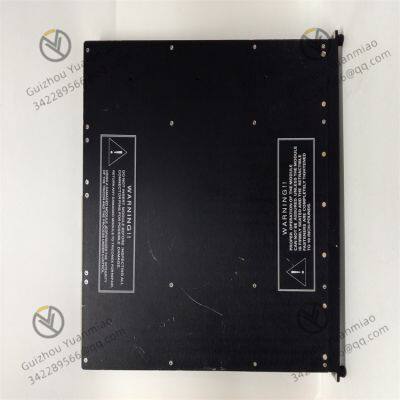

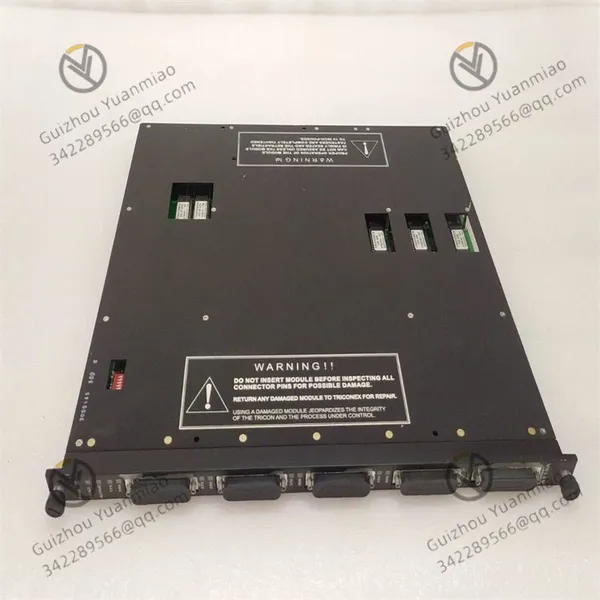

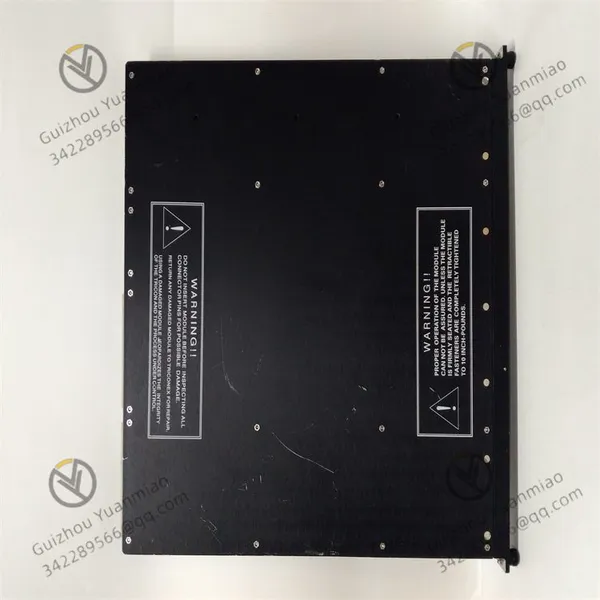

TRICONEX 4118 Redundant Architecture Module

TRICONEX 4118 Redundant architecture module

Functional Characteristics:

• Multiple Signal Inputs: Supports various temperature sensor inputs, including analog signals, thermocouples, and resistance temperature detectors (RTDs), adapting to temperature measurement requirements in different industrial scenarios.

• Multi-Protocol Bus Support: Provides multiple bus protocols such as EtherCAT, Profinet-RT, Modbus-RTU, and Modbus-TCP/IP, facilitating integration with PLCs or host systems from different manufacturers.

• Diversified Monitoring and Debugging Methods: Supports panel operation, bus monitoring, and serial port debugging, enabling debugging without a PLC to enhance system flexibility.

• Built-in Multiple PID Algorithms: Embeds various PID control algorithms and supports dual PID control, allowing flexible selection of suitable modes according to working environments.

•


Technical Parameters:

• Operating Voltage: 24VDC.

• I/O Channels: Typically 16 input channels and 16 output channels.

• Communication Protocol: Supports Modbus TCP/IP.

• Safety Certification: Complies with IEC 61508 standards and achieves SIL3 safety integrity level certification.

• Protection Level: IP67 protection level for some models.

• Temperature Range: -40°C to +85°C (operating), -55°C to +90°C (storage).

•


Product Advantages:

• High Reliability: Adopts fault-tolerant technology and redundant design, ensuring stable operation in industries with extremely high safety requirements, such as petrochemical, oil & gas, and power generation.

• Easy Maintenance: Modular architecture facilitates installation and maintenance, reducing downtime and operational costs.

• Strong Adaptability: Wide operating voltage range and high output frequency enable seamless integration into existing systems. It also features superior durability, withstanding harsh conditions like extreme temperatures and vibrations.

•


Application Scenarios:

• In petrochemical industry, it monitors key parameters such as reactor temperature;

• In power industry, it collects temperature signals of generator windings;

• In metallurgical industry, it monitors the temperature of blast furnace bodies, providing reliable support for monitoring and controlling analog parameters (e.g., temperature) in industrial production processes.
