ABB UAD149A1501 3BHE014135R1501 Controller

Guizhou Yuanmiao Automation Equipment Co., Ltd. Gold Verified Supplier

1Yr

ABB UAD149A1501 3BHE014135R1501 Controller thumbnail-1

ABB UAD149A1501 3BHE014135R1501 Controller thumbnail-2

ABB UAD149A1501 3BHE014135R1501 Controller thumbnail-3

ABB UAD149A1501 3BHE014135R1501 Controller thumbnail-4

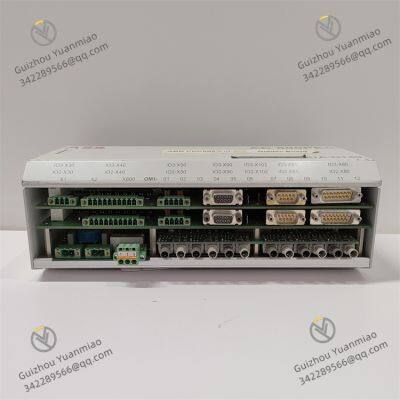

ABB UAD149A1501 3BHE014135R1501 Controller photo-1

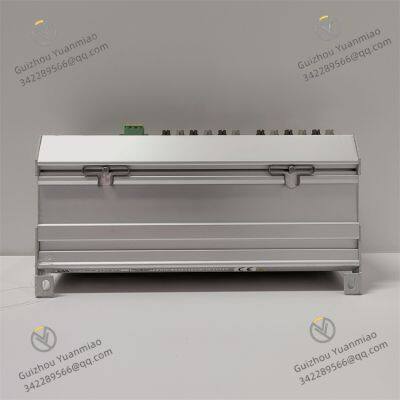

ABB UAD149A1501 3BHE014135R1501 Controller photo-2

ABB UAD149A1501 3BHE014135R1501 Controller photo-3

ABB UAD149A1501 3BHE014135R1501 Controller photo-4

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other, Global universal model

Condition:

Other, Global universal model

Task:

Other, Global universal model

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other, Global universal model

Condition Other, Global universal model

Task Other, Global universal model

Mathematical Model Other, Global universal model

Signal Other, Global universal model

Customized Non-Customized

Structure Other, Global universal model

Power supply 24V DC ±10%

Operating temperature -20°C to +60°C

Power consumption Approximately 5W

Storage temperature -40°C to +85°C

Humidity 5% to 95% (no condensation)

ABB UAD149A1501 3BHE014135R1501 is a digital controller module and part of the 800xa control system, specifically designed for efficient and reliable automation in various industrial applications. It can integrate with other components of the Distributed Control System (DCS) to achieve seamless communication and control, thereby enhancing process management.

Functions and Technical Features

Multi-Signal Processing: Supports analog (voltage/current/temperature) and digital signal input/output (e.g., 8 analog inputs, 8 analog outputs, 16 digital I/O).
Isolation Protection: Channel-to-channel isolation (e.g., withstands 250VAC continuous voltage) to ensure system safety.
Communication and Protocols: Supports industrial automation protocols (e.g., MODBUS, PROFINET, etc.) for data interaction.

Application Scenarios: Suitable for industrial automation systems in power, chemical, steel, and other industries, particularly in scenarios such as generator excitation control and process control.

Hardware Upgrades

Adopts higher-performance processors or ADC/DAC chips to improve signal processing speed and accuracy (e.g., resolution upgraded from 16-bit to higher, or update rate shortened to below 1 millisecond).
Enhances anti-interference capabilities (e.g., improved shielding design, support for higher-frequency filtering).

Functional Extensions

Adds native support for the HART protocol (HART may require additional configuration in previous models) or integrates more communication interfaces (e.g., Ethernet, USB, etc.).
Supports more flexible programmable logic (e.g., embedded Python scripts or custom algorithms) to adapt to complex control scenarios.

Reliability Improvements

Optimizes redundant designs (e.g., dual-power input, hot-swappable functions) to reduce downtime risks.
Expands the operating temperature range (e.g., adapts to a wide temperature environment of -40°C to 70°C) to meet requirements of harsher industrial environments.

I. Basic Parameters

Parameter	Details
Model	UAD149A1501 (Product Code: 3BHE014135R1501)
Series	AC 800PEC Combined I/O Module
Functional Position	High-performance analog input module supporting voltage/current/temperature measurement, providing signal isolation and fault protection
Power Requirements	- Main power: 24V DC ±10% - Power consumption: Approximately 5W (typical value)
Operating Temperature	-20°C to +60°C (standard type) -40°C to +70°C (wide-temperature type, subject to specific model confirmation)
Storage Temperature	-40°C to +85°C
Humidity	5% to 95% (non-condensing)
Protection Class	IP20 (module body), higher protection levels require matching cabinets
Weight	Approximately 0.8kg (excluding cables)

II. Analog Input Parameters

Parameter	Details
Number of Channels	16 independent analog inputs (configurable for voltage or current modes)
Input Types	- Voltage: ±10V, ±5V, ±1V, 0-10V, 0-5V, etc. - Current: 0-20mA, 4-20mA
Resolution	32-bit IEEE floating-point (supports high-precision measurement)
Accuracy	- Voltage: ±0.05% full scale (25°C) - Current: ±0.05% full scale (25°C)
Sampling Rate	Up to 10kHz/channel (configurable, depending on filtering settings)
Channel Isolation	Channel-to-channel isolation voltage: 250V AC (continuous), 1500V AC (1 minute)
Common-Mode Rejection Ratio	>120dB (50/60Hz)
Input Impedance	- Voltage mode: >10MΩ - Current mode: 250Ω ±0.1%
Overload Protection	±35V (continuous), ±100V (100ms)

III. Digital Input/Output Parameters

Parameter	Details
Digital Inputs	- Quantity: 8 channels - Type: Dry or wet contacts (24V DC) - Filter time: 0.1-20ms (configurable)
Digital Outputs	- Quantity: 8 channels - Type: Transistor output (24V DC/0.5A) - Switching time: <1ms
Diagnostic Functions	Supports open/short circuit detection, overvoltage/undervoltage alarms

IV. Communication and Protocols

Parameter	Details
Communication Interfaces	- System bus: Supports PROFIBUS DP, MODBUS RTU, Ethernet IP, etc. - Debugging interface: RS232 (optional)
Communication Speed	- PROFIBUS: Up to 12Mbps - Ethernet: 10/100Mbps (auto-adaptive)
Protocol Support	- Industrial protocols: PROFIBUS DP, MODBUS TCP, OPC UA - Diagnostic protocols: CIP Safety (optional)
I/O Refresh Time	Typical value <1ms (depending on system configuration)

V. Mechanical and Installation Parameters

Parameter	Details
Dimensions	145mm (width) × 145mm (height) × 145mm (depth)
Installation Method	- Standard DIN rail (TS-35/7.5 or TS-35/15) - Supports horizontal or vertical installation
Wiring Method	- Removable terminal blocks (spring or screw connections) - Supports direct plug-in or busbar connections
