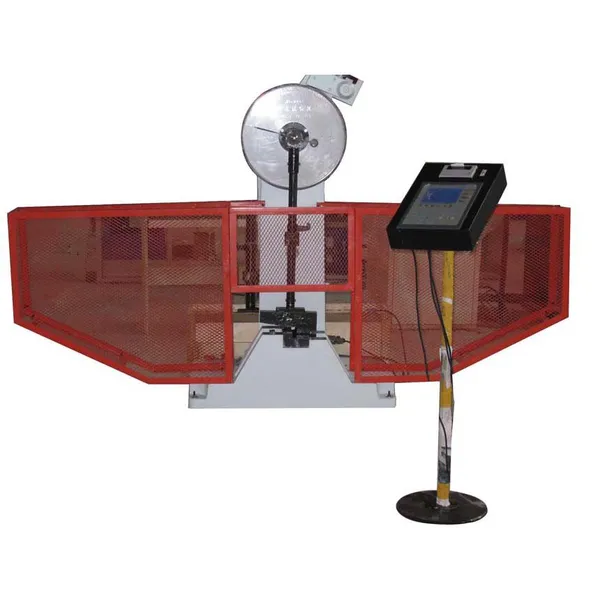

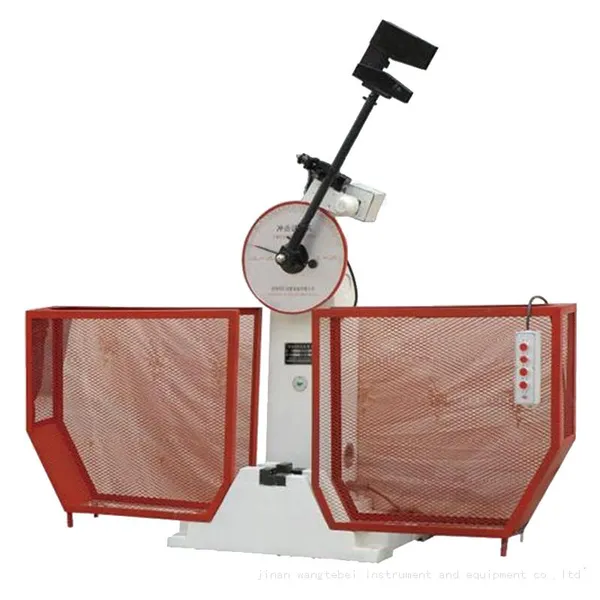

Help CenterJB-500B Semi-automatic Impact Tester 500J 250J Energy for Metal Sample 10x10x50mm
Related Products
-
JB-S500 Digital Impact TesterUS$ 4000 - 8000MOQ: 1 Set -
DWC-196 Low Temperature ChamberUS$ 3000 - 5000MOQ: 1 Set
-
DWC-80 Charpy Impact Test Cooling Low Temperature ChamberUS$ 1000 - 3000MOQ: 1 Set
-
DWC-60 Charpy Impact Test Cooling Low Temperature ChamberUS$ 1000 - 3000MOQ: 1 Set
-
DWC-40 Charpy Impact Test Cooling Low Temperature ChamberUS$ 1000 - 3000MOQ: 1 Set
1.test purpose
The JB-500B semi-automatic impact tester is to measure and determine anti-impact properties of metal materials in dynamic load.
2. test method
GB/T3808-2018 verification of pendulum type impact testing machines
ISO 148-2:2008 metallic materials-charpy pendulum impact test-part 2:verification of testing machines
GB/T229-2007 metallic materials-charpy pendulum impact test method
ISO 148-1:2006 metallic materials-charpy pendulum impact test-part 1:test method
3.features
3.1 single support column structure, cantilever hanging pendulum, U-type pendulum body
3.2 impact blade fixed by screws, easy and convenient for changing
3.3 simple supported beam support for samples
3.4 safe pin and protecting cover equipped with the machine
3.5 semi-automatic control, electrical control for pendulum rising, place pendulum, impact and re-place pendulum. Pendulum will be auto rising and placed after one test, very suitable for continuous testing in lab, metallurgy and mechanical manufacturing.
4. technical specification
No. |
Item |
Spec. |
1 |
Impact energy |
500J,250J |
2 |
Impact speed |
5.2m/s |
3 |
Pendulum rising angle |
150° |
4 |
Accuracy of angle |
0.1° |
5 |
Span of sample supports |
40mm |
6 |
Support jaw fillet |
R1.0-1.5mm |
7 |
Impact blade fillet |
R2.0-2.5mm, R8mm |
8 |
Distance between pendulum center and impact center |
750mm |
9 |
Standard test sample |
10x10x55mm,10x7.5x55mm,10x5x55mm |
10 |
Voltage and power |
3 phase 4 wire，50Hz,380V，180W |
11 |
Dimension |
2100x650x1900mm |
12 |
Weight |
450kg |
