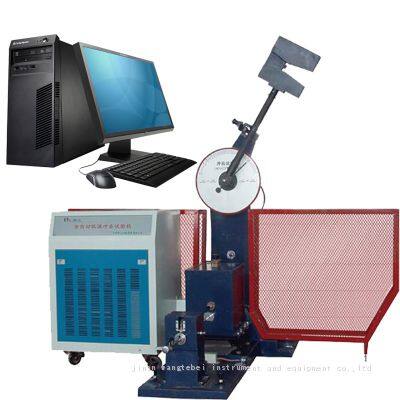

JBD-300 -40 degree computer control low temperature charpy impact tester for metal
- 10 Set / Sets per Month
- qingdao, shanghai, tianjin
- T/T
- 10 days
You May Like
-
JBW-500 computerized control izod impact tester for metal
-
JBW-300 computer control impact tester digital metal impact testing machine
-
JB-500B semi-automatic metal impact tester pendulum impact tester for metal
-
pendulum impact tester for metal metal Charpy impact test machine metal impact strength tester
-
metal Charpy impact test machine price ASTM E23 metal impact test machine ISO 148 metal impact tester
-
metal impact testing equipment for sale impact testing machine for steel metal material impact testing equipment
Product Details
Type | Impact Testing Machine | Warranty | 1 year | |
Weight | 500-1000Kg | Power Source | AC380V | |
Accuracy Grade | 0.5 | Load Way | Mechanical Load | |
Control | Computer Control | Loading Method | Static Load | |
Display | Digital | Transport Package | export package | |
Specification | 500J,250J | Origin | China |
Product Description
1.test purpose
The JBD-300-40 computer control low temperature impact tester is to measure and determine anti-impact properties of metal materials in dynamic load.
2. test method
GB/T3808-2018 verification of pendulum type impact testing machines
ISO 148-2:2008 metallic materials-charpy pendulum impact test-part 2:verification of testing machines
GB/T229-2007 metallic materials-charpy pendulum impact test method
ISO 148-1:2006 metallic materials-charpy pendulum impact test-part 1:test method
3.features
3.1 single support column structure, cantilever hanging pendulum, U-type pendulum body
3.2 impact blade fixed by screws, easy and convenient for changing
3.3 simple supported beam support for samples
3.4 safe pin and protecting cover equipped with the machine
3.5 automatic control from pendulum rising, sample feeding, centering sample, impact and pendulum re-rising.
4. technical specification
No. | Item | Spec. |
1 | Impact energy | 300J,150J |
2 | Impact speed | 5.2m/s |
3 | Pendulum rising angle | 150° |
4 | Accuracy of angle | 0.1° |
5 | Span of sample supports | 40mm |
6 | Support jaw fillet | R1.0-1.5mm |
7 | Impact blade fillet | R2.0-2.5mm or R8mm |
8 | Thickness of impact blade | 16mm |
9 | Cooling method | compressor |
10 | Capacity of sample box | 10 pcs |
11 | Low temperature range | 0-40℃ below zero |
12 | Temperature control accuracy | Fluctuation: ±0.2℃ Gradient: 1℃ |
13 | Distance between pendulum center and impact center | 750mm |
14 | Standard test sample | 10x10x55mm |
15 | Voltage and power | 3 phase 4 wire,50Hz,380V,180W |
16 | Dimension | 1600x850x1530mm |
17 | Weight | 650kg |
