1.application

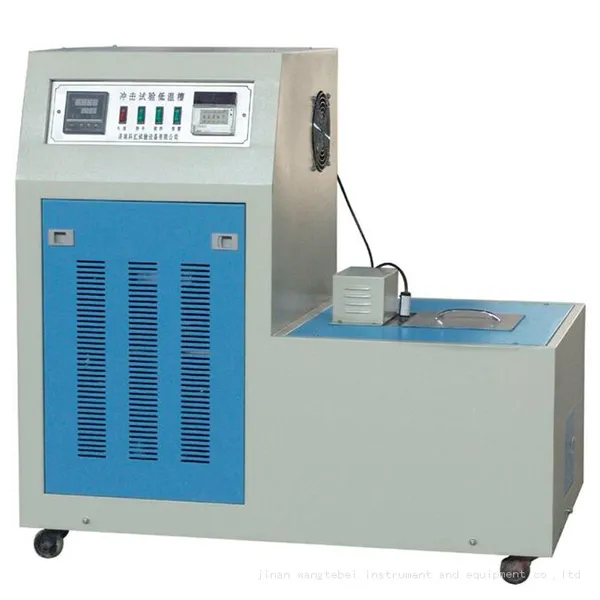

The machine is designed according to charpy notch impact test method for metal material, and adopts compressor cooling technology. It utilizes the heat balance principle and cycle stirring method to realize the constant temperature cooling to impact specimen with the reliable performance. Digital display, automatic control temperature, and it is the ideal equipment for cooling and keeping temperature to impact specimen.
2. features
Imported compressor,DANFUS valve, imported evaporation-condensation machine
Controlled by intelligent instrument, digital presentation temperature value.
High security, refrigerate fast, large volume
3. specifications
Model |
DWC-40 |
Temperature range |
+30~-40° |
Temperature accuracy |
±0.5° |
Temperature dropping speed |
+30°C~0°C, 1.2°C/min 0°c~-20°C,0.8°C/min -20°C~-40°C,0.5°C/min |
Cold Room Volume |
150×505×240mm |
Dimensions |
900×505×850 mm |
Box Material |
Steel Spray |
Sample volume |
>60 |
Mode of refrigeration |
Compressor refrigeration |
Cooling Medium |
Ethanol or other unfrozen liquid |
Power |
7Kw |
