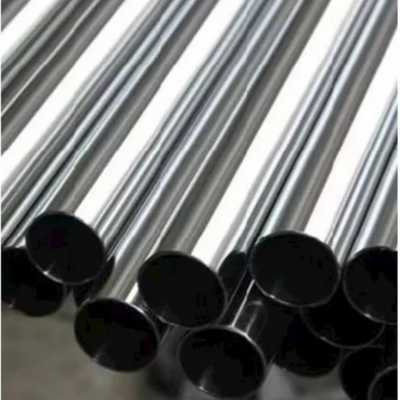

EP Electrolytic Polished Stainless Steel Pipe/Tube | ASTM A312/A269 304/316L | Mirror Finish, Corrosion Resistant | for Pharma

To assure the highest quality standards, the tubing is subjected to extensive testing and inspection programs that meet or exceed ASTM A270 A1016 A1016M test requirements. Testing includes reverse bend, reverse flattening, and flange tests. Eddy current testing is performed on 100% of the sanitary tube produced.

Inline hydrogen bright annealing to 1900°F (1040° C) minimum followed with a rapid quench.

Surface finish is 20 µ-in Ra (0.5 µm) ID maximum, 30 µ-in Ra (0.8 µm) OD maximum surface roughness measured per ASME ANSI B46.1 with the profilometer reading at 90 degrees to the lay. Other finishes available upon request.

For material heat treated in a continuous furnace flattening tests shall be made on a sufficient number of pipes to constitute 5 % of the lot, but in no case less than 2 lengths of pipe.

Bright annealed tubing is line–stenciled with OD, wall, ASTM specifications, size, grade, heat number, production date and time. OD polished tube is marked on one end of each tube with a removable label stating ASTM specification, manufacturer, grade and heat number. Continuous line stencil available on request.

• Mill test certificates will be issued according to EN10204.3

• All tubes shall be supplied as per applicable ASTM A270 /A270M Specification.
