Ultrahigh Pressure 15000 Psi HiP Autoclave Butech Type 1/4'' 3/8'' OD Fnpt Ball Valve Full Bore Ball Valve
US$ 50 - 100
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Hikelok
Place of Origin:
China
Model Number:
15BV
Payment & Shipping
Payment Methods:
Port of Shipment:
Chengdu
Delivery Detail:
30 days
Related Products
-
Ultrahigh Pressure 20000 Psi HiP Autoclave Butech Type 1/4'' 3/8'' OD MP Needle ValveUS$ 50 - 150MOQ: 1 Piece -
Ultrahigh Pressure 30000 Psi HiP Autoclave Butech Type Staineless Steel 1/4'' 3/8'' OD HP Needle ValveUS$ 50 - 200MOQ: 1 Piece
-
Ultrahigh Pressure 20000 Psi Autoclave HiP Butech Type 1/4'' 3/8'' 9/16'' OD Threading Tool Coning Tool Reseating ToolUS$ 70 - 200MOQ: 1 Piece
-
Ultrahigh Pressure 20000 Psi MP HiP Autoclave Butech Type 1/4'' 3/8'' 1'' OD Ball Valve Two Way 3-way Ball ValveUS$ 80 - 200MOQ: 1 Piece
-
Ultrahigh Pressure 60000 Psi Autoclave HiP Butech Type 1/4'' 3/8'' 9/16'' OD Threading Tool Coning Tool Reseating ToolUS$ 70 - 200MOQ: 1 Piece
Brand Name
Hikelok
Place of Origin
China
Model Number
15BV
Material
Stainless Steel
Application
General
Structure
Ball
Standard or Nonstandard
Standard
Pressure
High Pressure
Power
Manual
Port Size
1/8 in. to 1/2 in.
Media
Oil
Temperature of Media
High Temperature
Features:

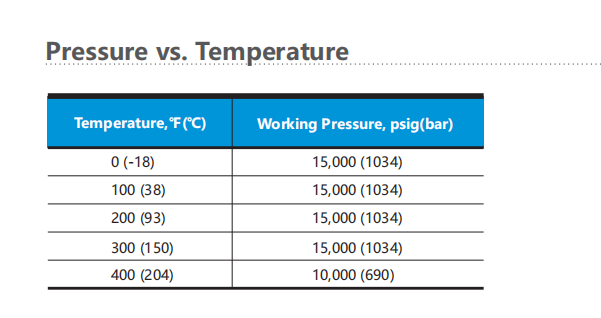

- Working pressure up to15,000 psig (1034 bar)
- Working temperature from 0'F to 400° (-18'℃ to 204°C)
- Two-way and three-way valve configurations
- PEEK seats offer excellent resistance to chemicals, heat, and wear/abrasion
- Full-port flow path minimizes pressure drop

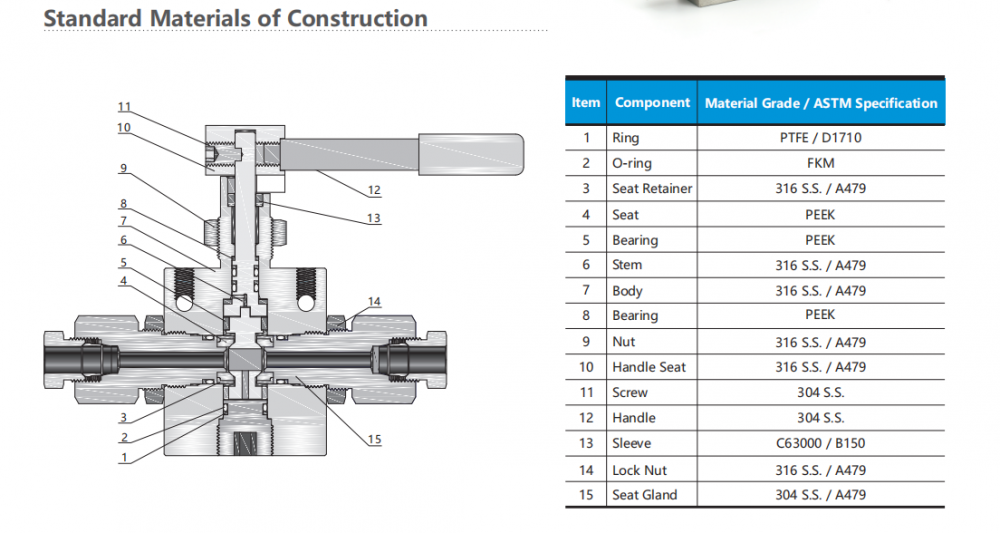

- 316 cold worked stainless steel construction
- Wide selection of tube and pipe end connections available
