Product Details
| Brand Name | dika | Place of Origin | China | |
| Model Number | LB6-66 |
Product Description
Product descriptions from the supplier
Warning/Disclaimer
California Proposition 65 Consumer WarningView more

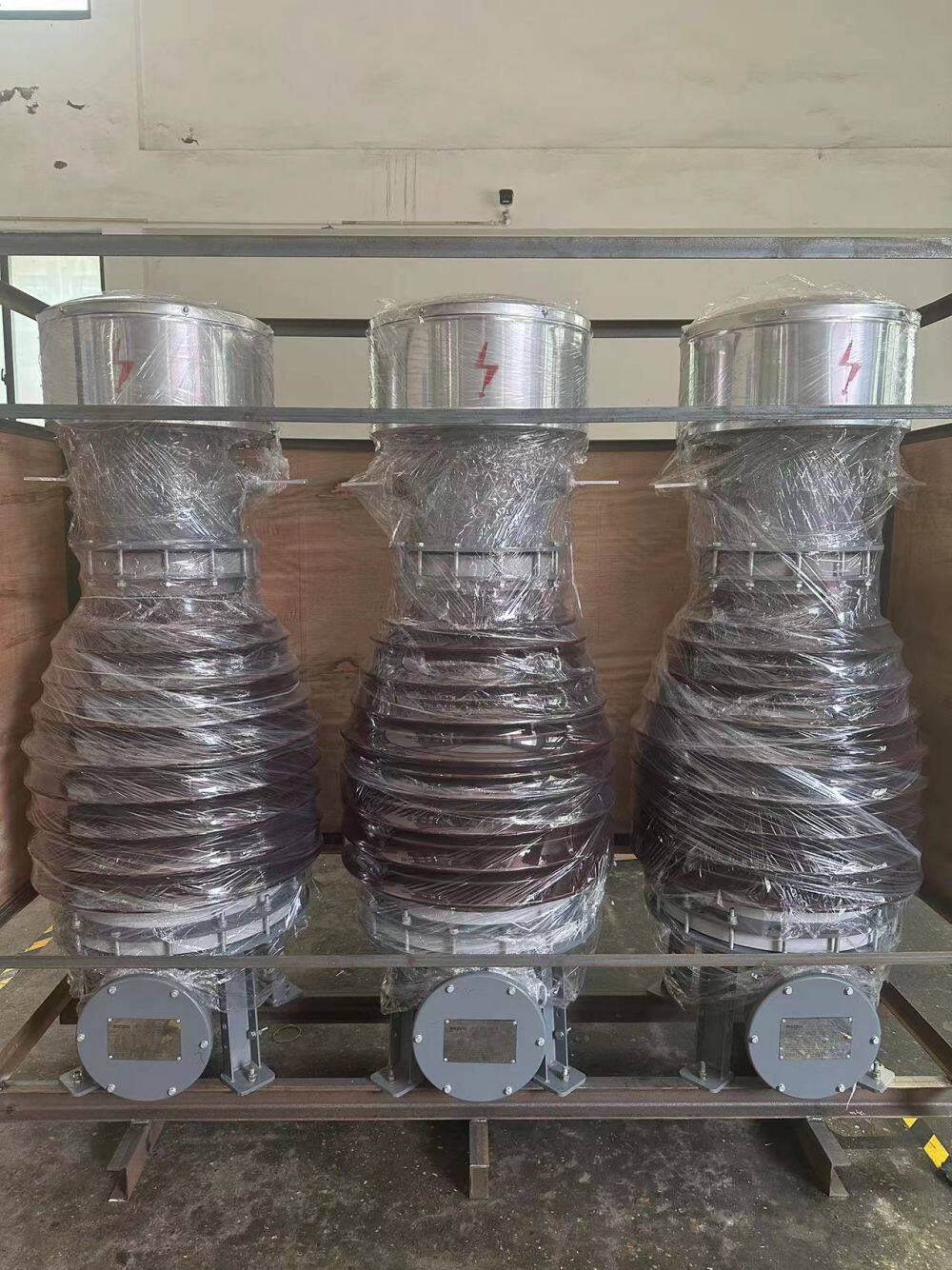

66kV Current Transformer , Single Phase , Oil immersed type
LB6-66 Current transformer is a single phase oil-immersed type CT for outdoor usage. It can be used for the electric current measurement ,energy measurement and replay protection in the electric power system with a voltage of rated voltage 72.5KV. and for requency of 50/60Hz
Boerstn Electric co.,Ltd can make this CTs upto the voltage 252 KV.
The products are in accordance with the requirements of the standard :
GB1208”Current Transformer’ and IEC60044-1, IEC 61869 Current Transformer
The products are in accordance with the requirements of the standard :
GB1208”Current Transformer’ and IEC60044-1, IEC 61869 Current Transformer

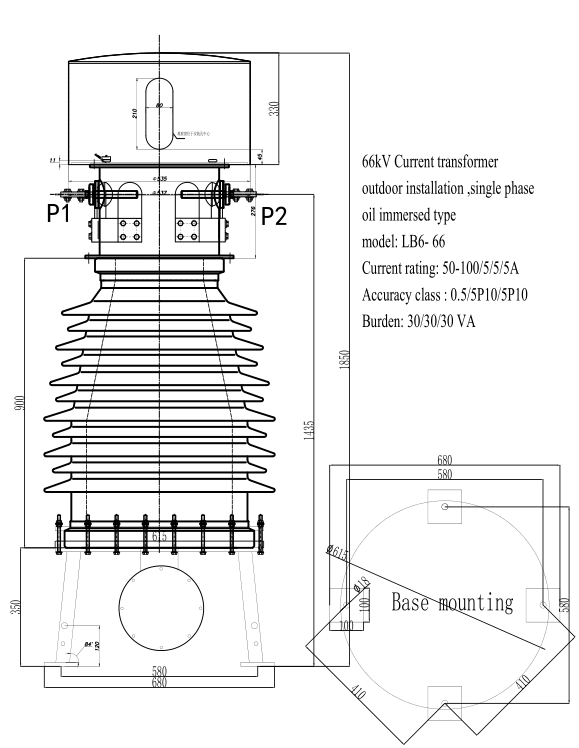

66KV Current transformer ,outdoor installation, Standard IEC61869 ,Single phase, oil immersed type ,
- insulators material : porcelain - Norminal voltage 66KV, Highest system voltage 72.5KV - Current rating 50-100/5/5/5A
- rated burden 30VA
- Accuracy class 0.5/5P10/5P10
Rated voltage : 66KV,69KV ,72.5KV Rated frequency : 50/60Hz Rated insulation level : 72.5/140/325KV Creepage distance : 3155mm Flashover distance : 1150mm Rated short-time thermal curent (kA) : 5.3~45kA/3s Rated dynamic stability current (kA) : 13~115 Rated primary current (A) : 50~2500A Rated secondary current (A) : 1 or 5 Accuracy class : 0.2,0.2S,0.5,0.5S,5P,10P any combinations Rated burden (VA) : 15~60VA Instrument security factor(FS) : ≤5 or 10 5 or 10 Accuracy limit factor : 10,15,20,30
Service environment
a. The ambient air temperature : -25°C ~ +40°C;
b. Daily average temperature(Within 24h): ≤+35℃
c. Altitude:≤2000m;
d. Relative humidity: within 24h, daily average value ≤ 95% , daily average vapor pressure≤ 2.2KPa;
monthly average value ≤ 90%, monthly average vapor pressure≤ 1.8KPa
* Ambient air is not significantly polluted by dust, smoke, corrosive and / or flammable gas, vapor or salt contamination
b. Daily average temperature(Within 24h): ≤+35℃
c. Altitude:≤2000m;
d. Relative humidity: within 24h, daily average value ≤ 95% , daily average vapor pressure≤ 2.2KPa;
monthly average value ≤ 90%, monthly average vapor pressure≤ 1.8KPa
* Ambient air is not significantly polluted by dust, smoke, corrosive and / or flammable gas, vapor or salt contamination
